Full Backrest, Four Door

REMOVAL
1. Remove the seat cushion. For additional information, refer to Seat Cushion.

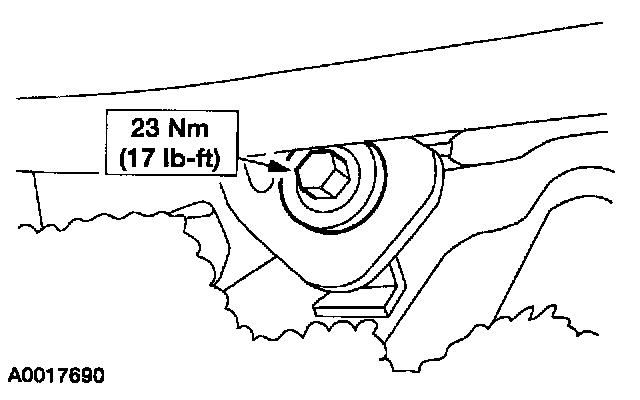

2. Remove the bolts.







3. Remove the safety belt anchor and buckle assembly.
1 Remove the retaining nut.
2 Remove the safety belt anchor and buckle assembly.







4. Push up at the split and remove the seat backrest safety belt guide.
5. Remove the seat backrest.
^ Lift up and remove the seat backrest while feeding the safety belt and buckle through the seatback.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.
