60/40 Split Backrest

REMOVAL
1. Remove the seat cushion. For additional information, refer to Seat Cushion.

NOTE: The 60 percent portion of the seat is shown, the 40 percent portion of the seat is similar.

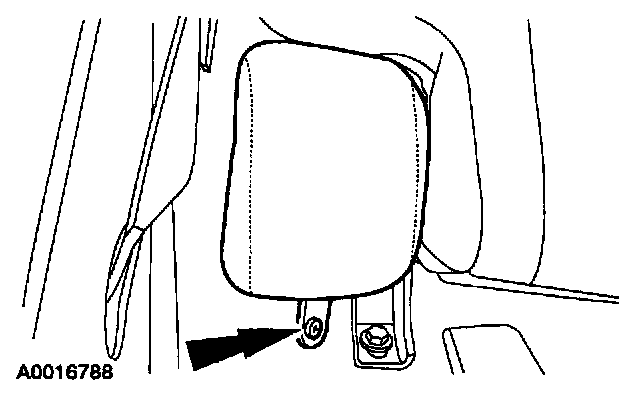

2. Remove the screw.







3. Fold the seat backrest and remove the seat trim pad.
^ Pull upward on the seat trim pad and remove.

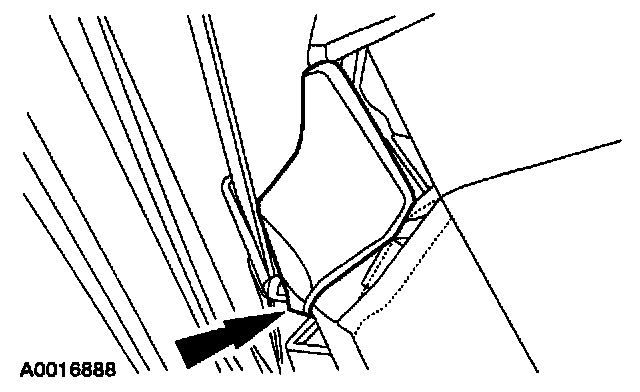

4. Remove the bolts.

INSTALLATION
1. To install, reverse the removal procedure.
