Test D: Roof Opening Panel Does Not Open Or Close
Test D: Roof Opening Panel Does Not Open Or Close

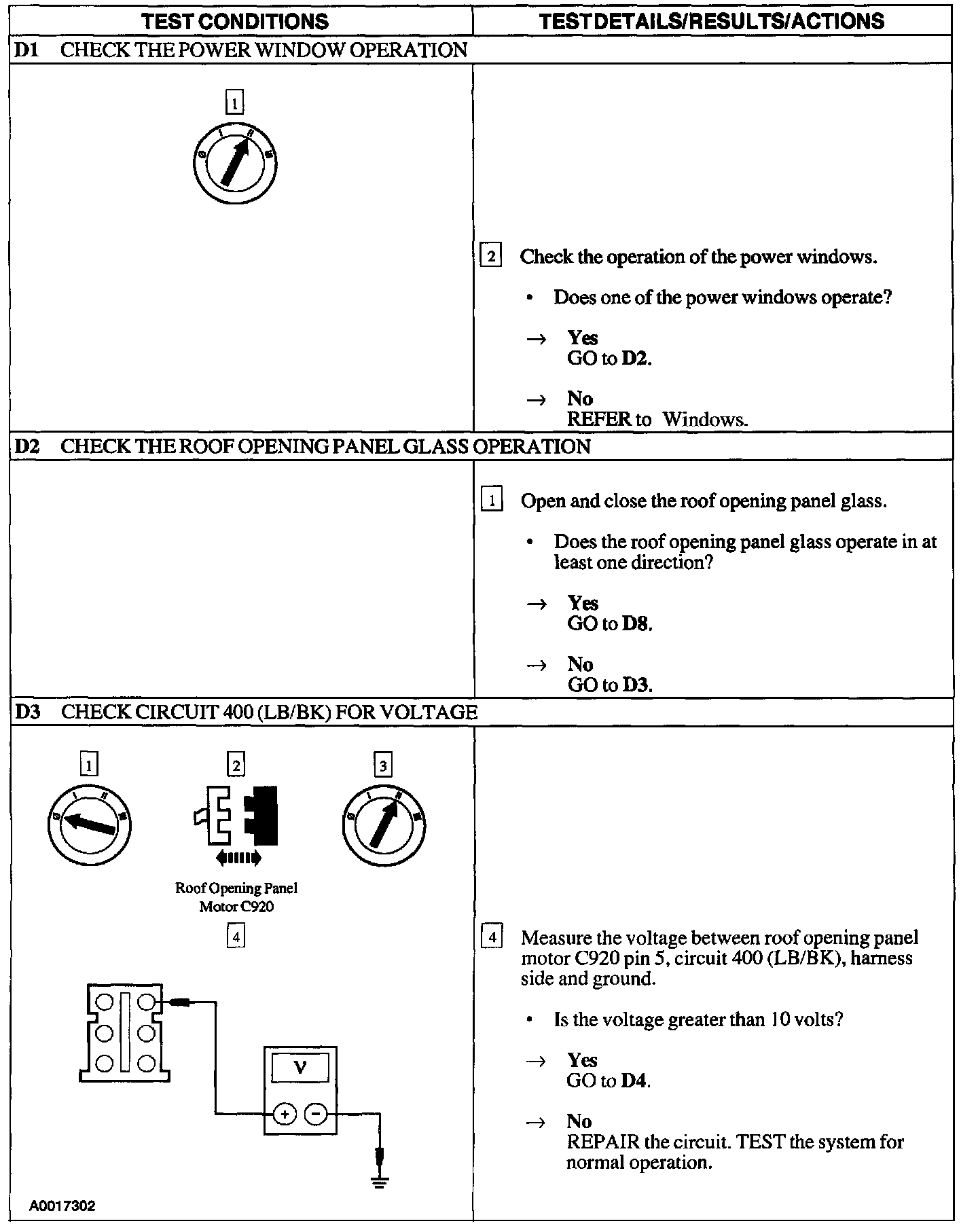

D1 - D3:

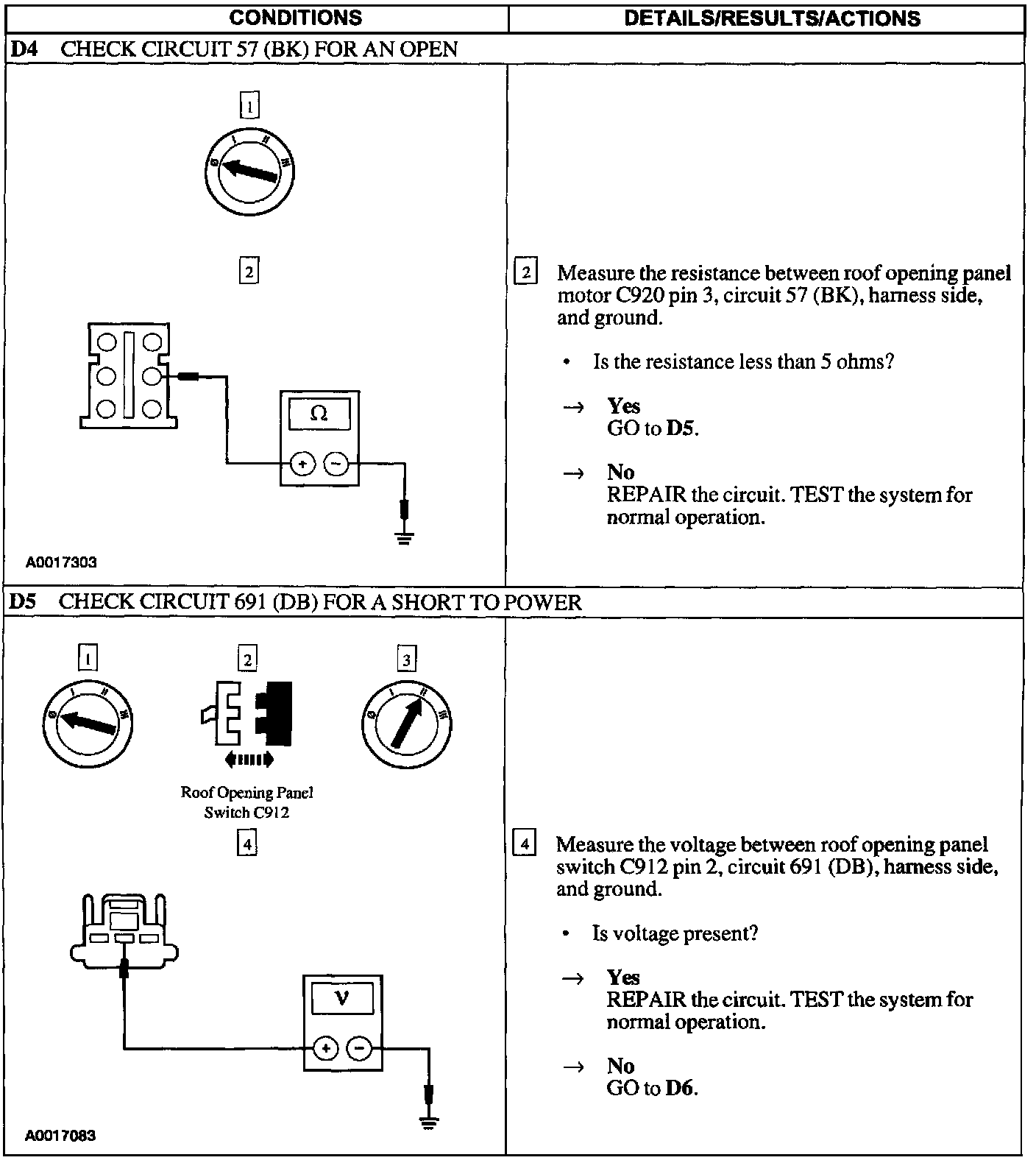

D4 - D5:
D6:

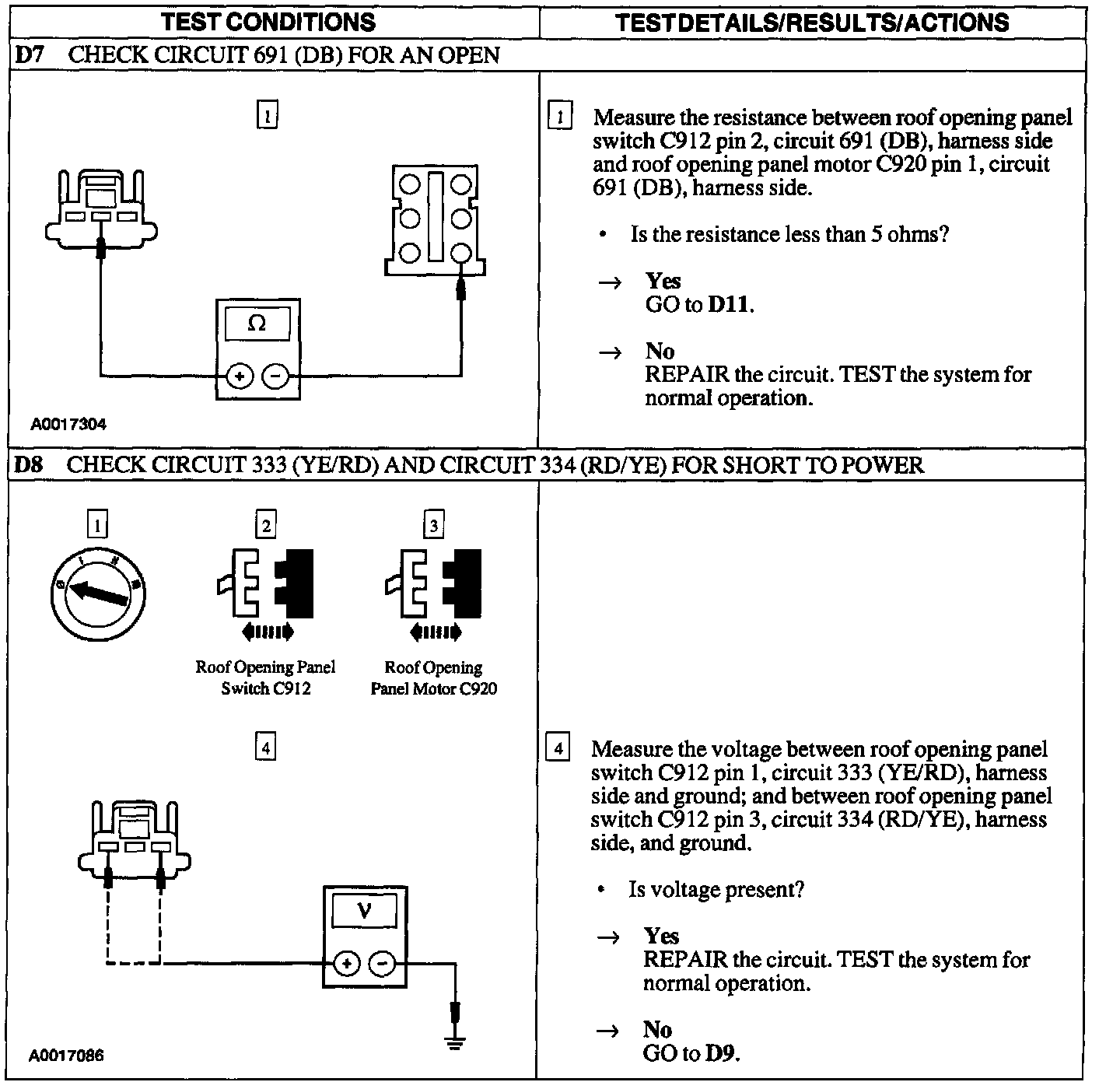

D7 - D8:
D9:

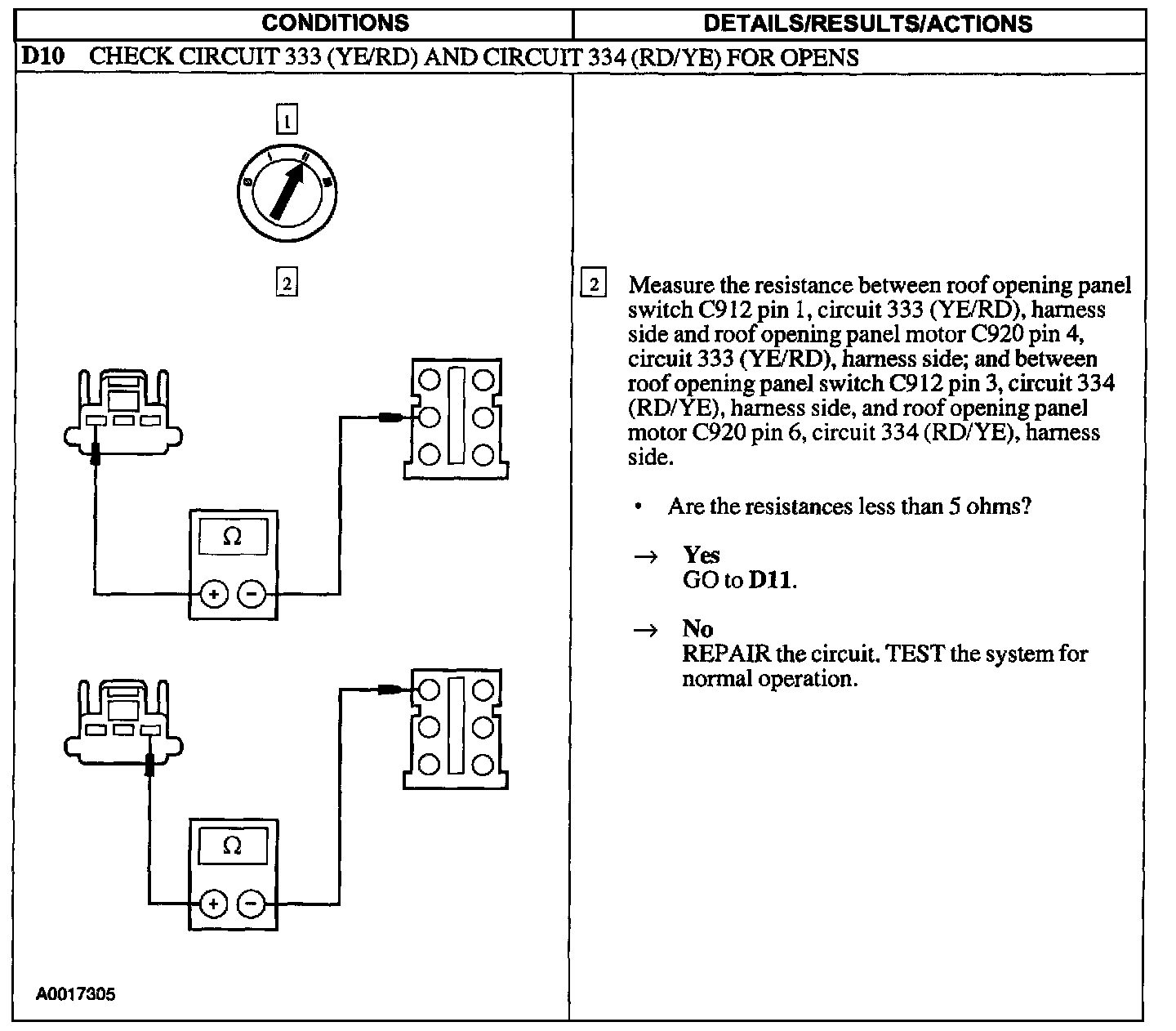

D10:

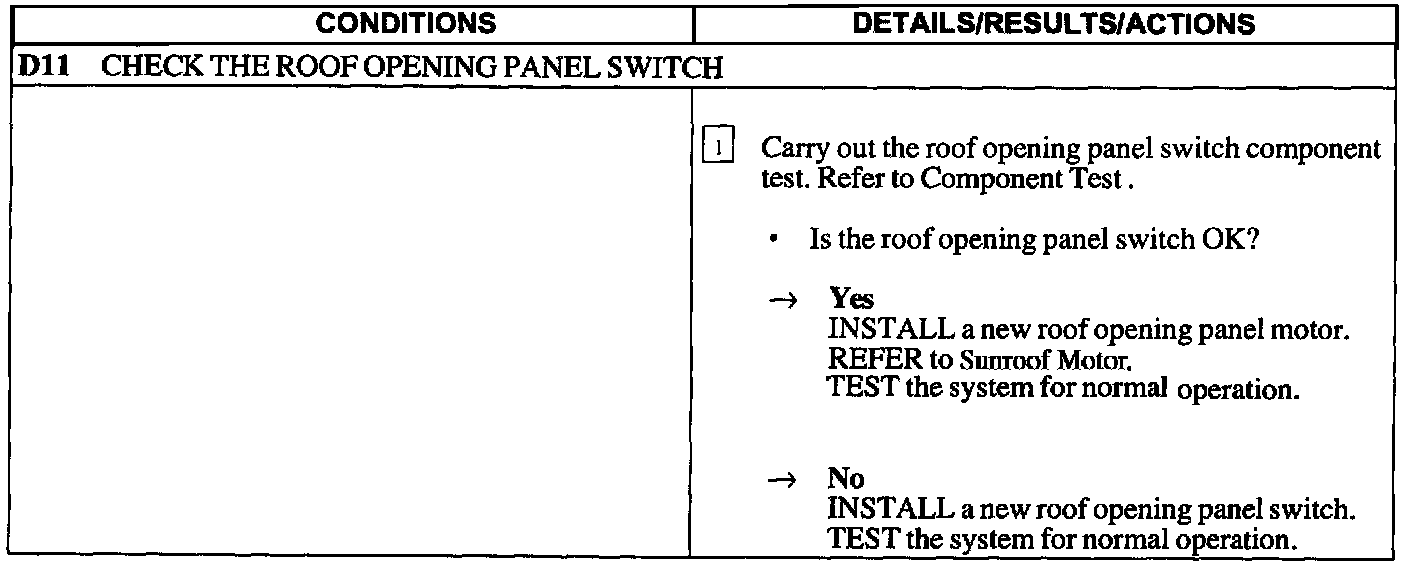

D11:
