Test A: All Door Locks Are Inoperative - Do Not Lock/Unlock From Driver or Passenger Door Lock Control Switch
Test A: All Door Locks Are Inoperative - Do Not Lock/Unlock From Driver or Passenger Door Lock Control Switch

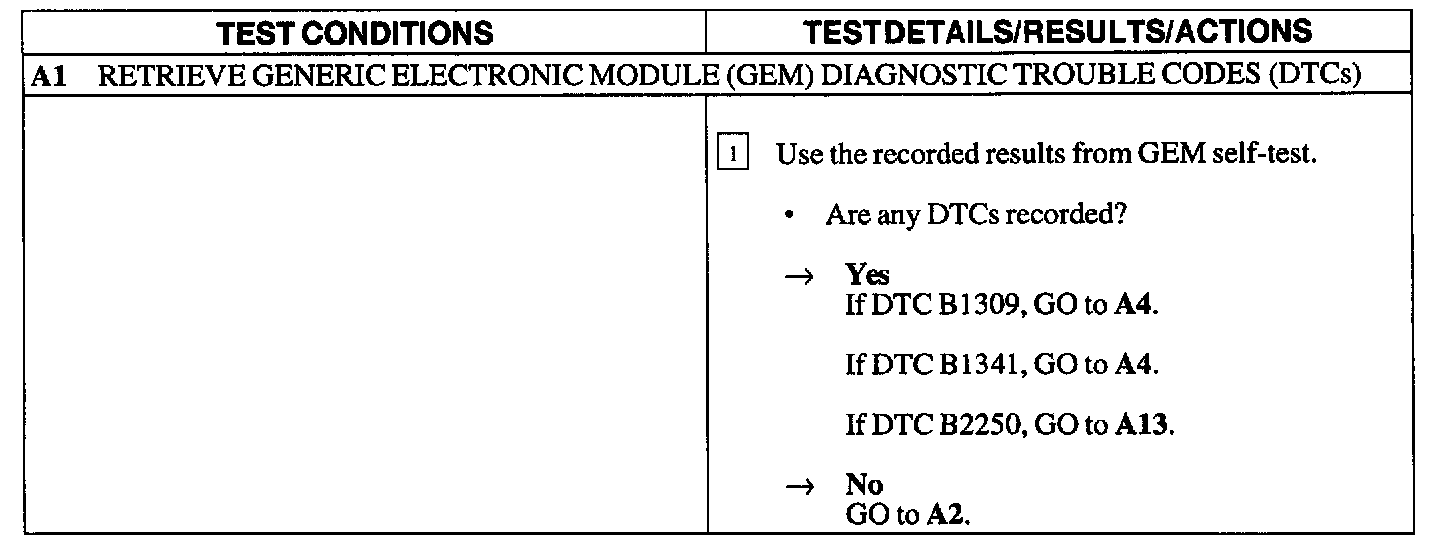

A1:

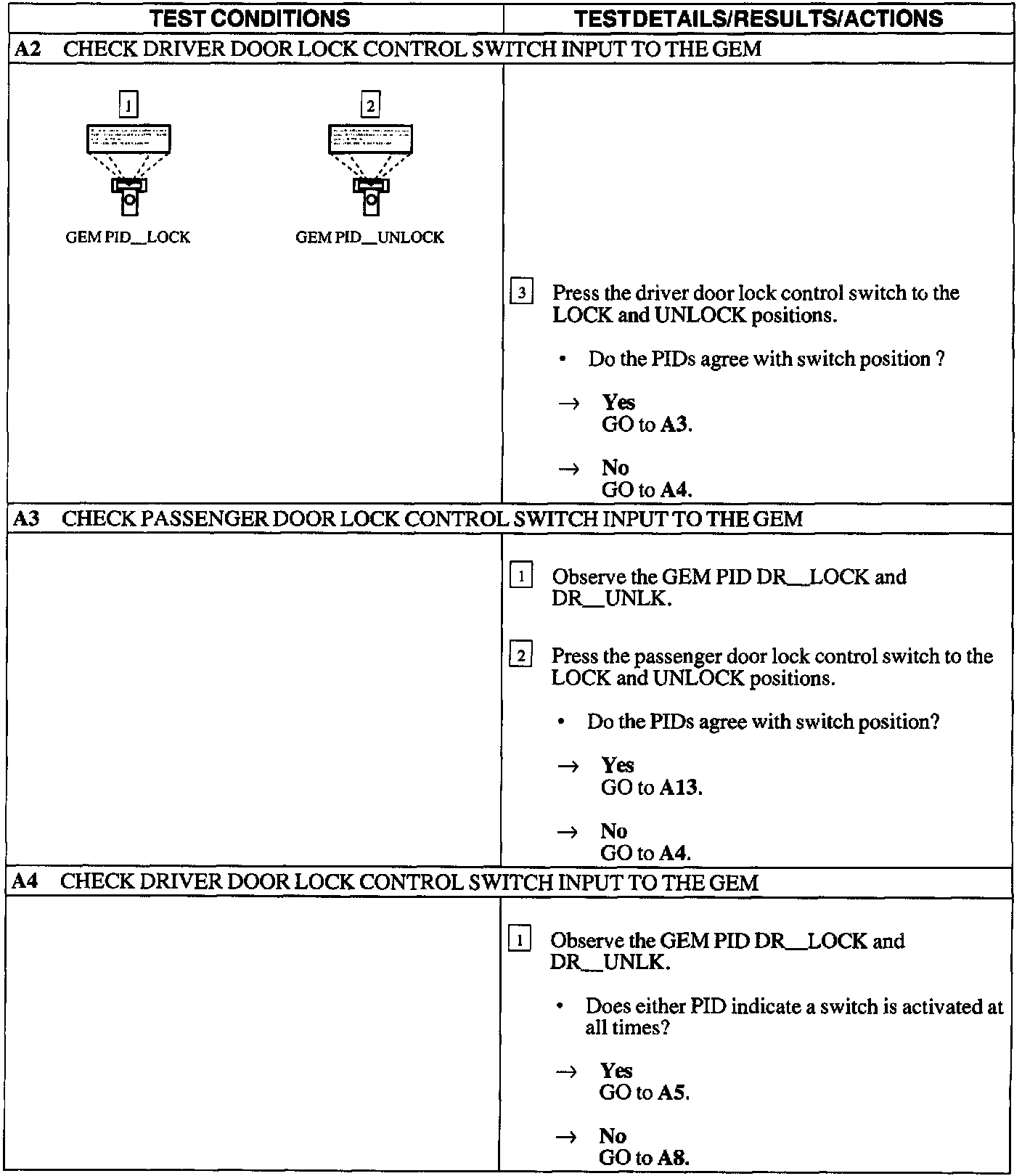

A2 - A4:

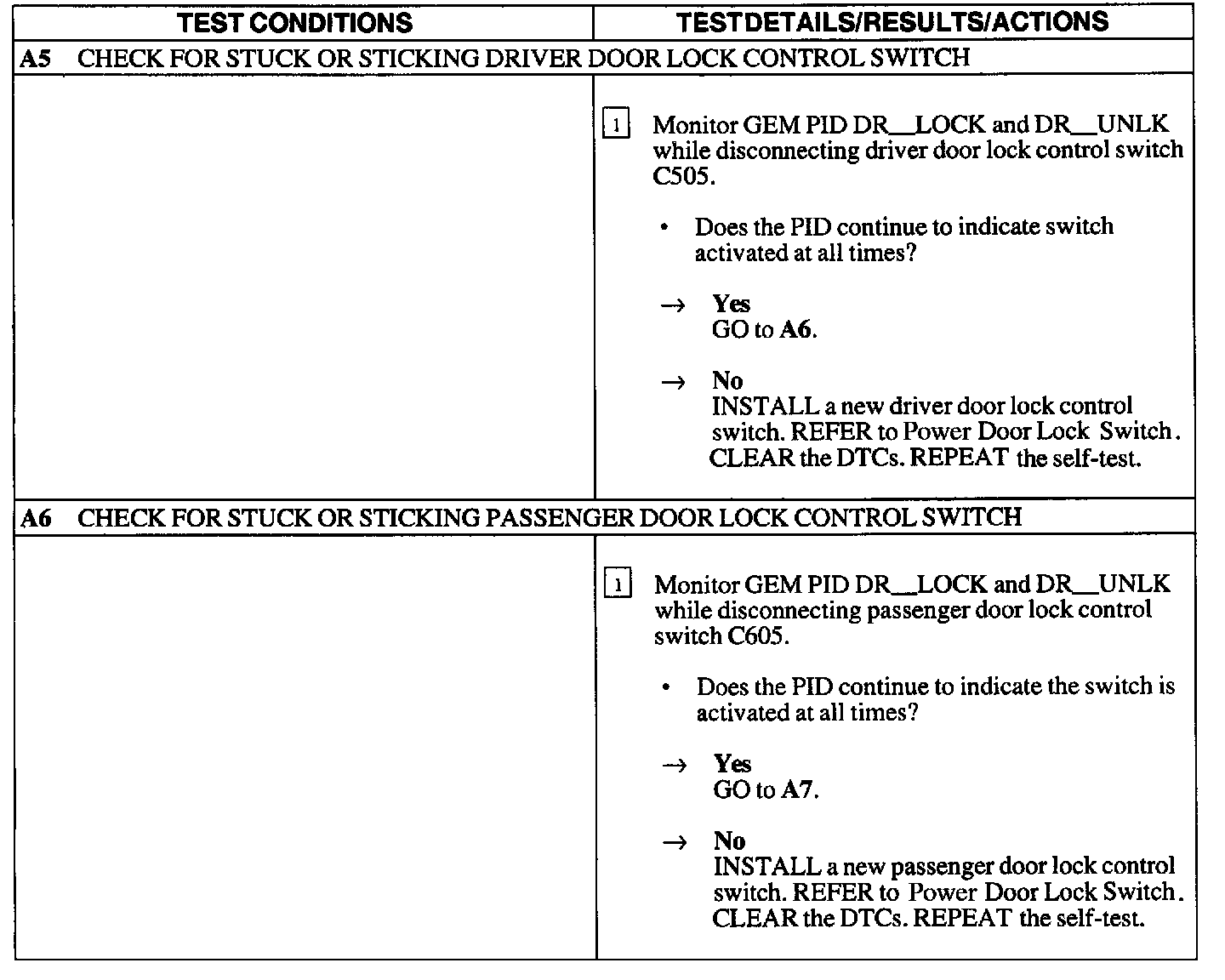

A5 - A6:
A7 - A8:

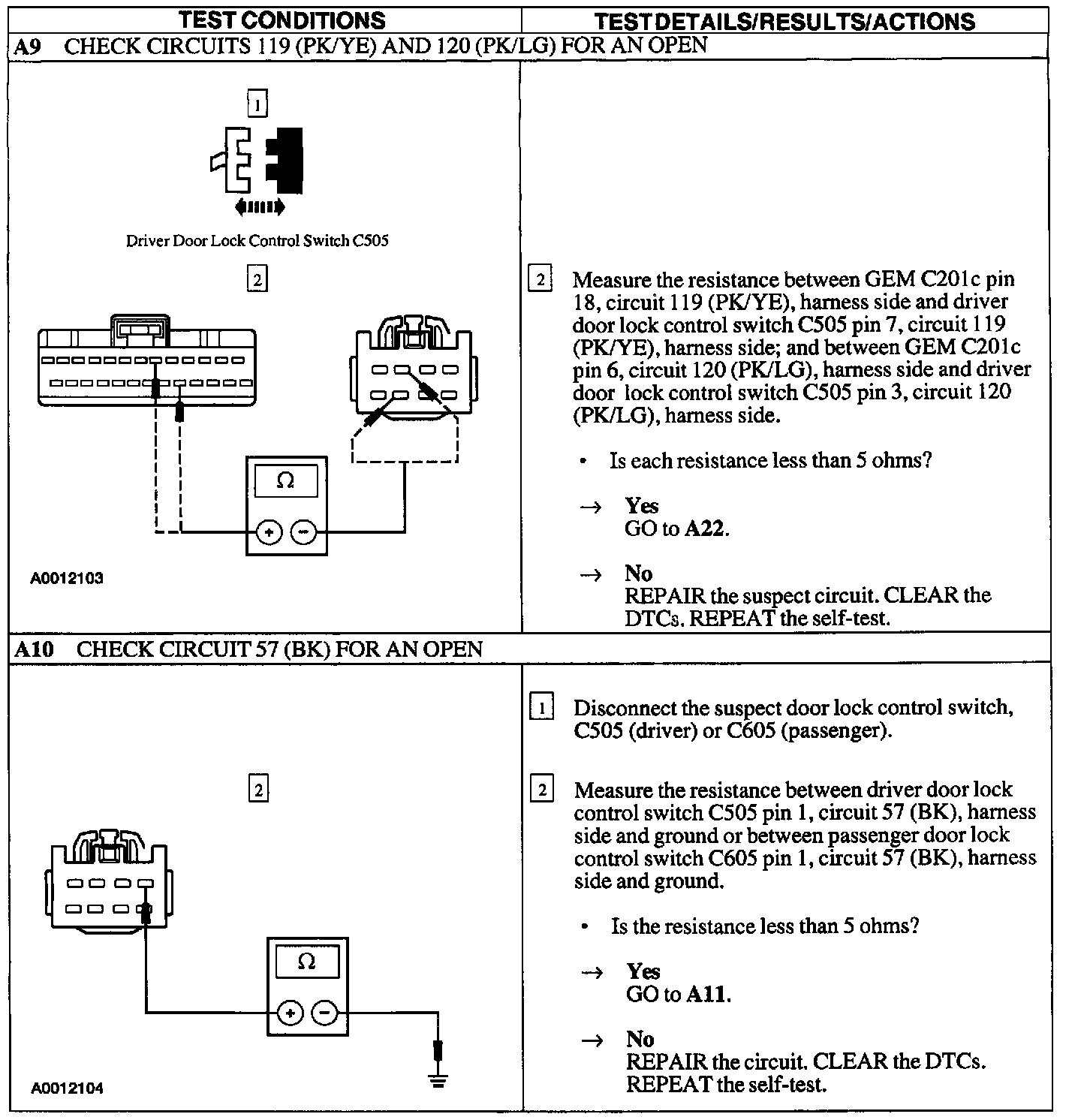

A9 - A10:

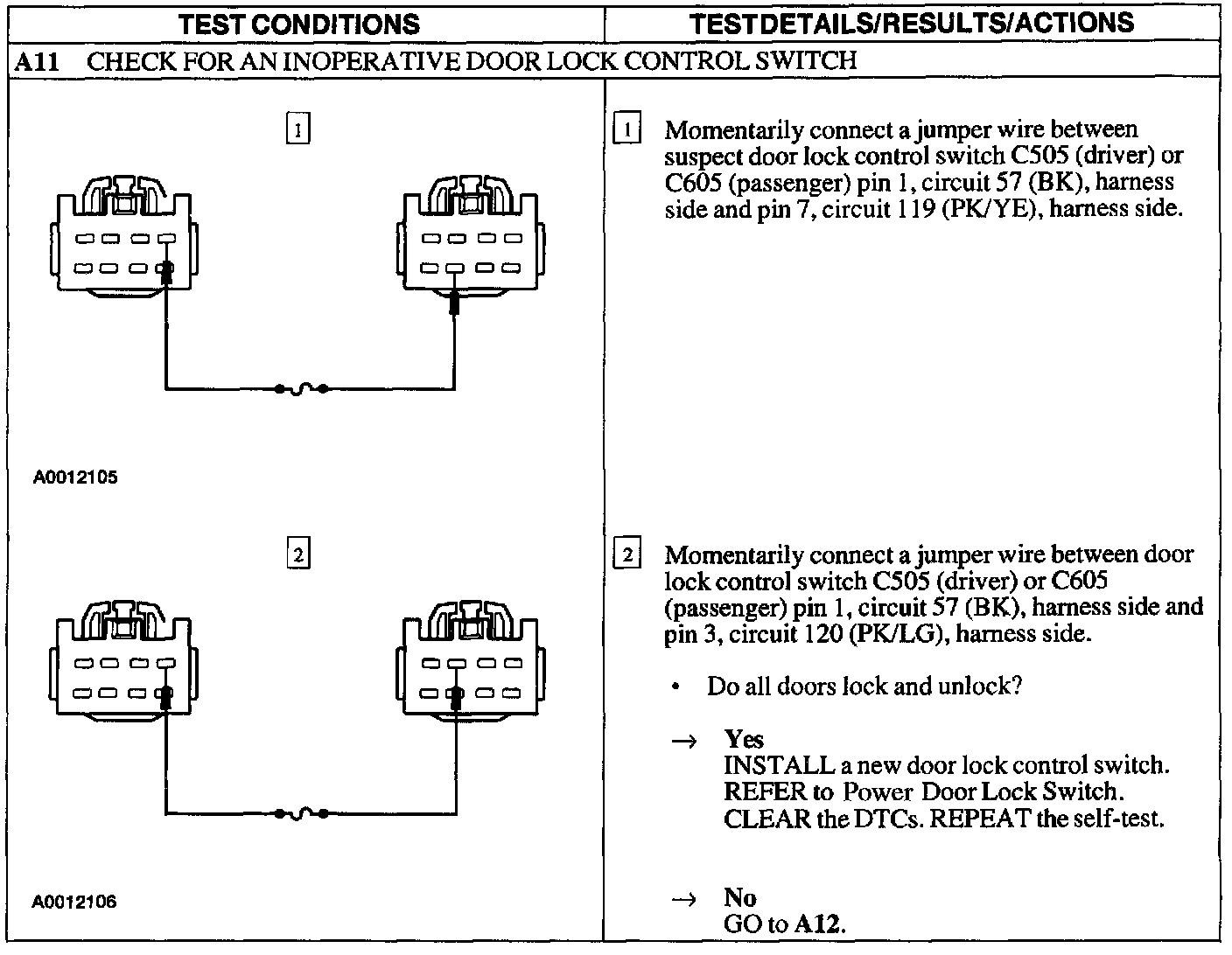

A11:

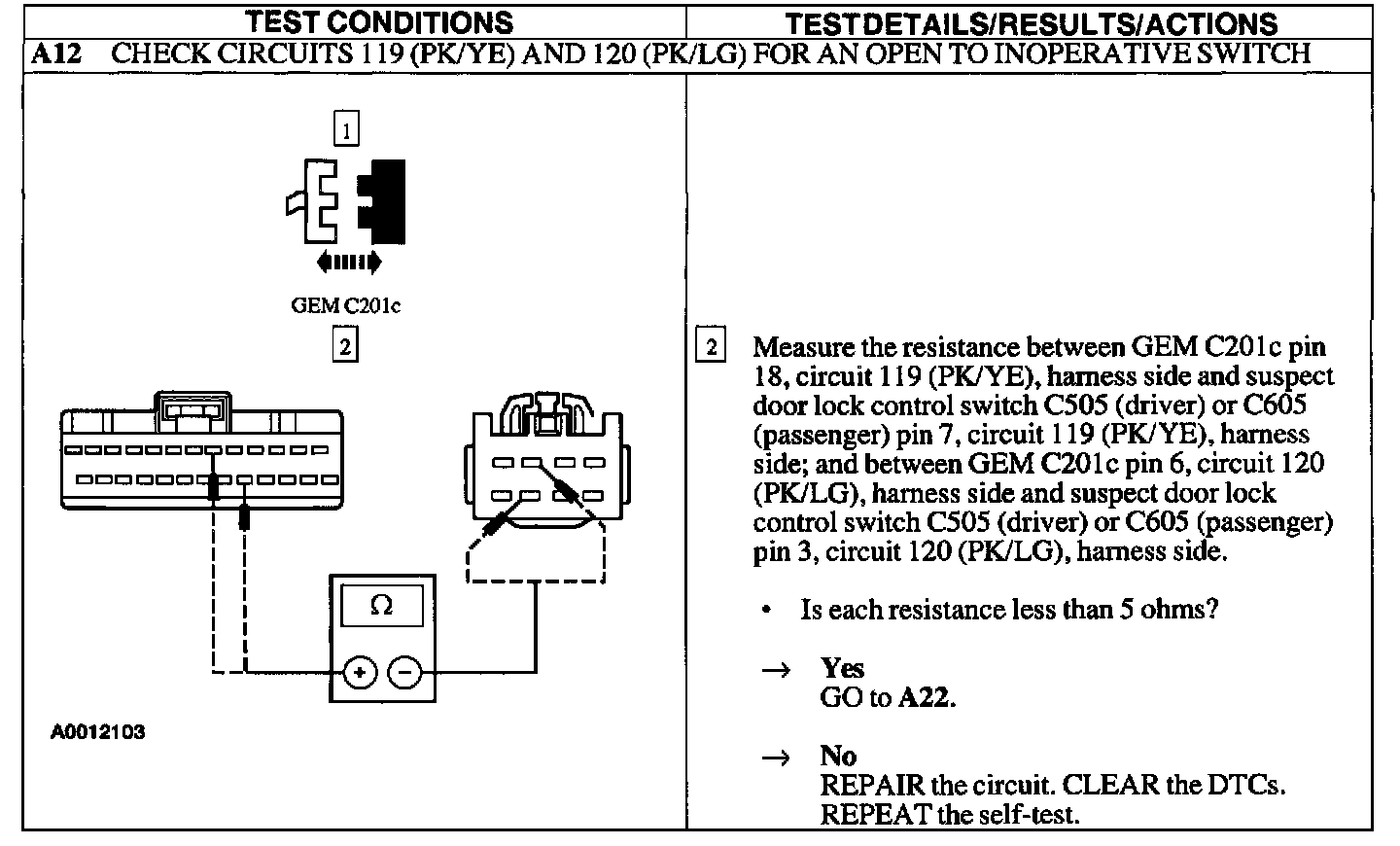

A12:

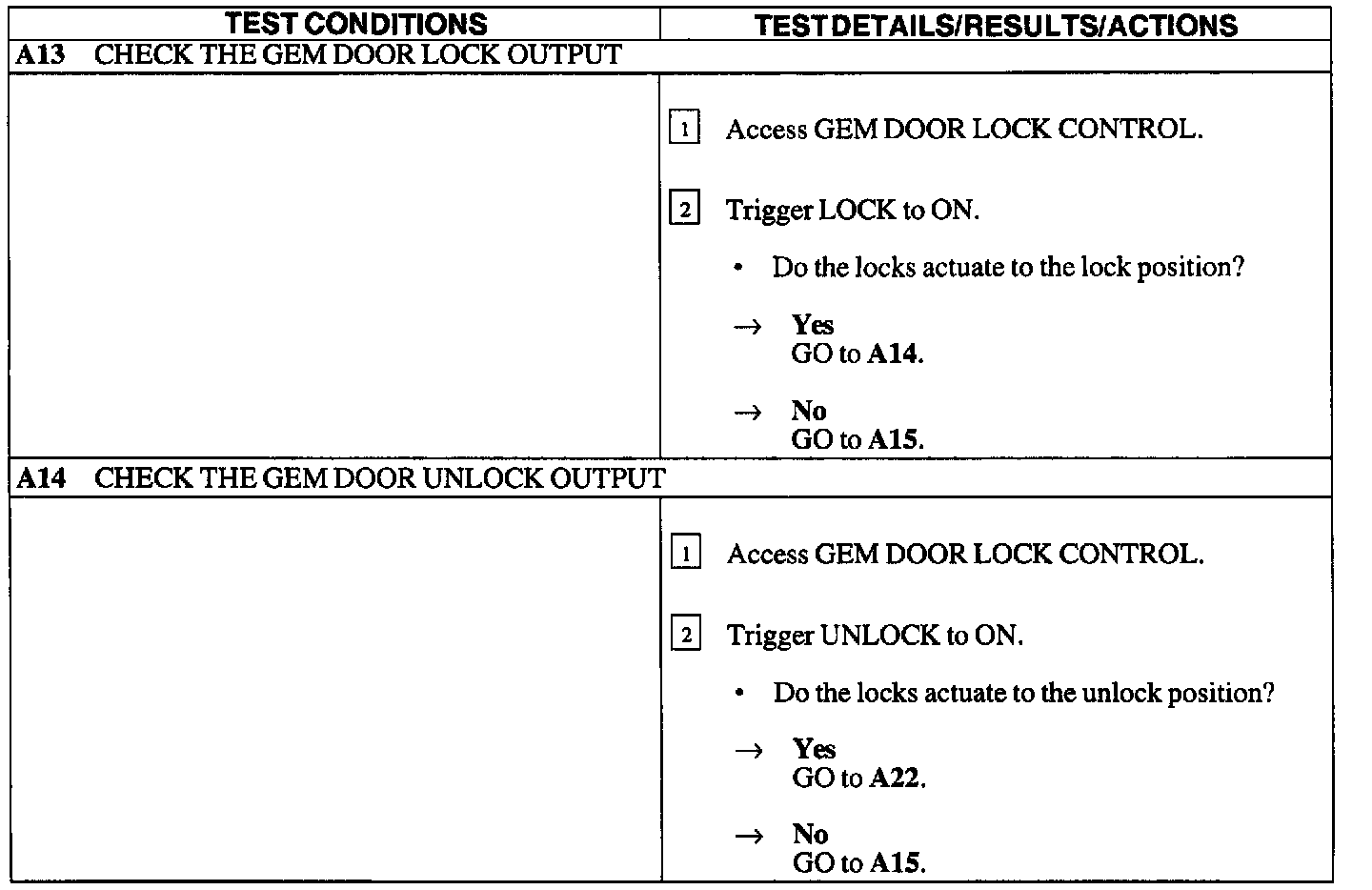

A13 - A14:

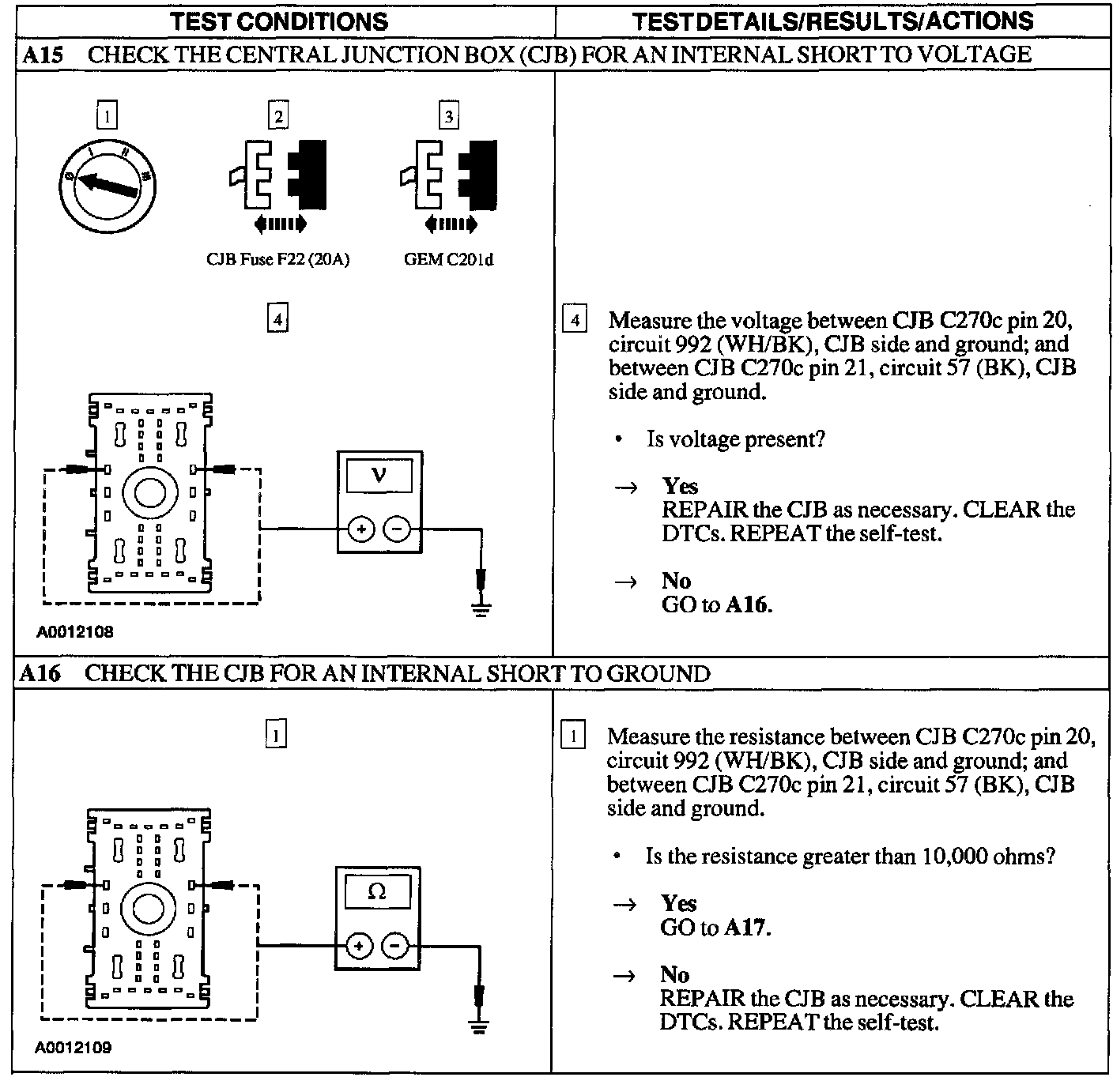

A15 - A16:

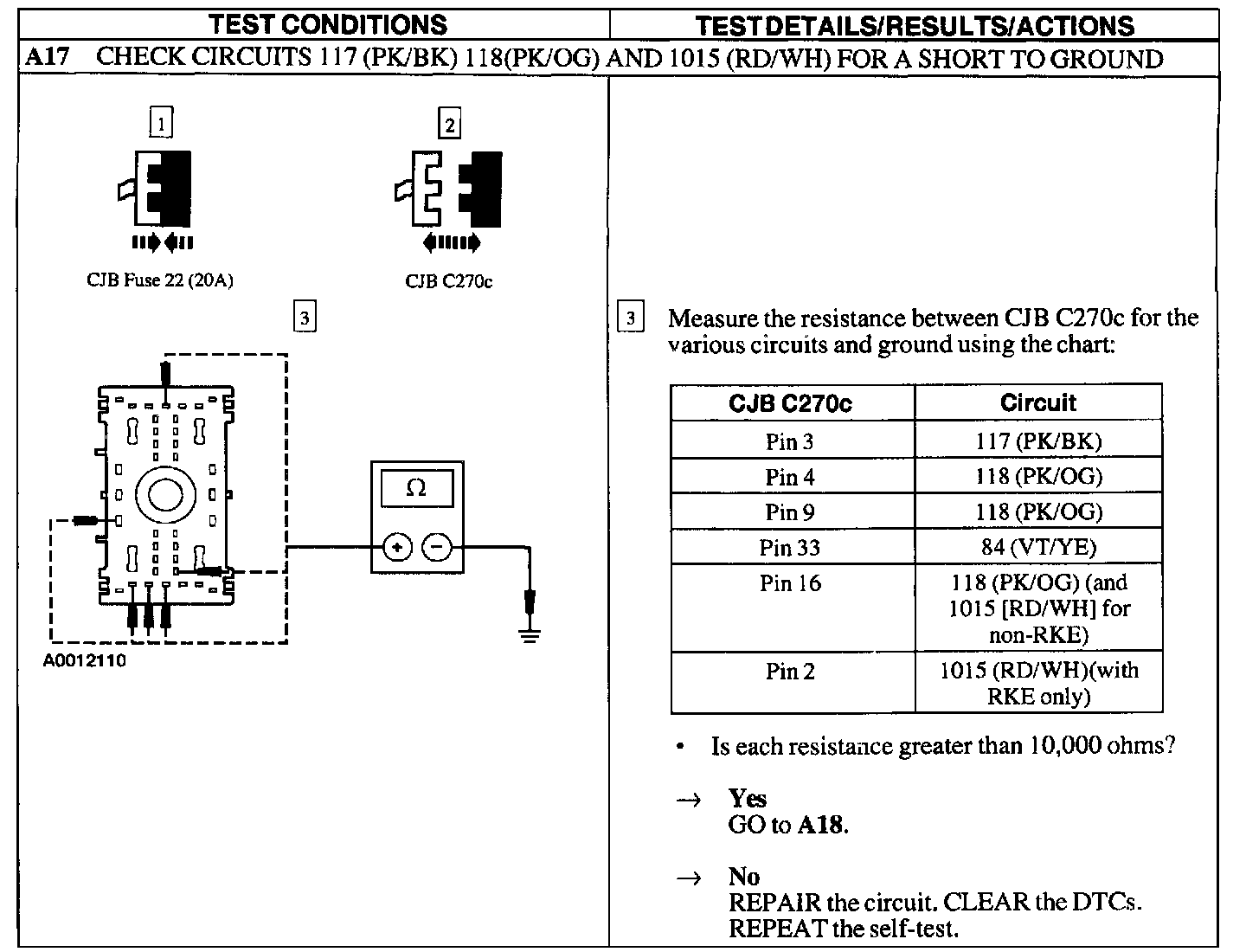

A17:

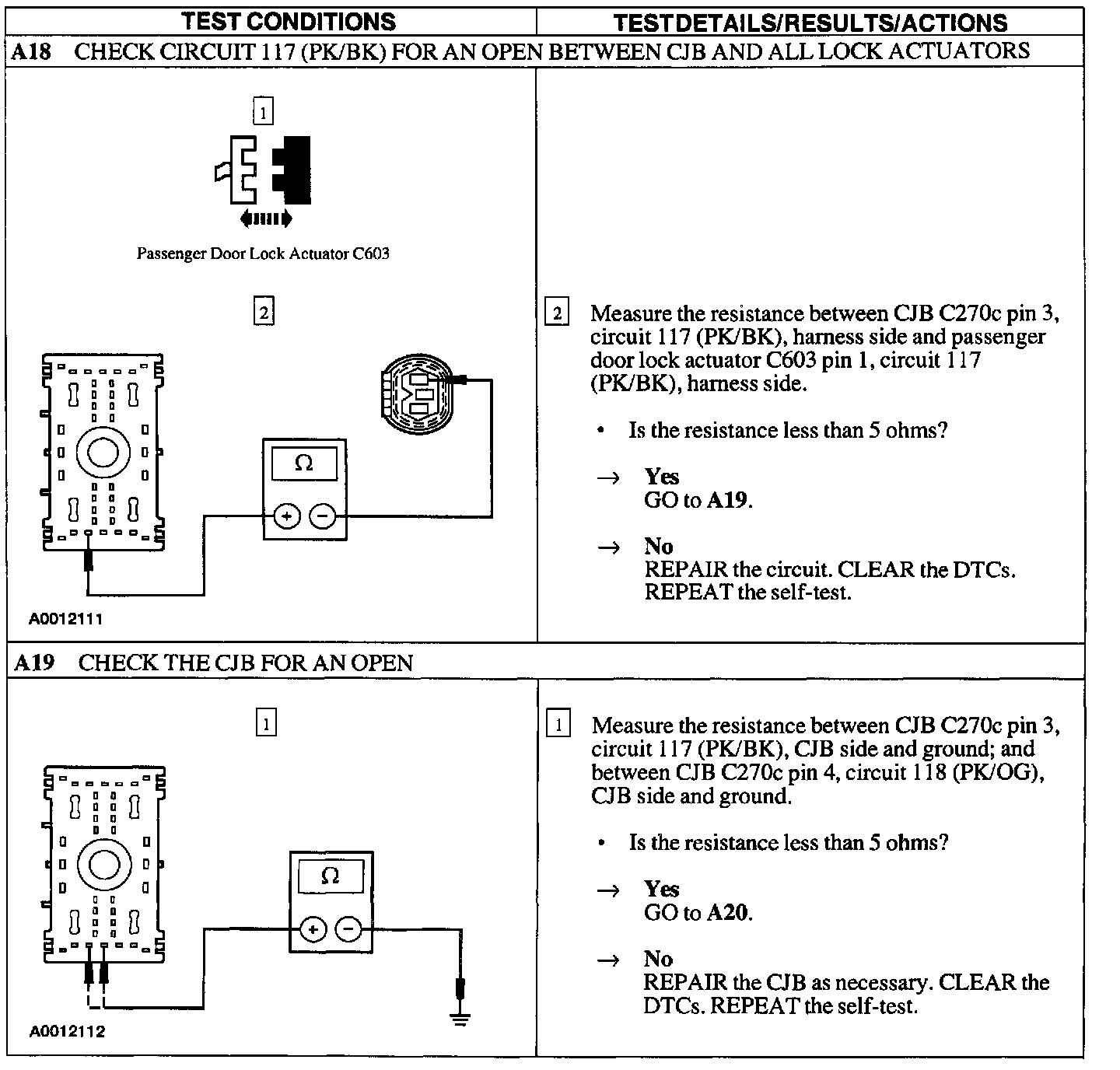

A18 - A19:

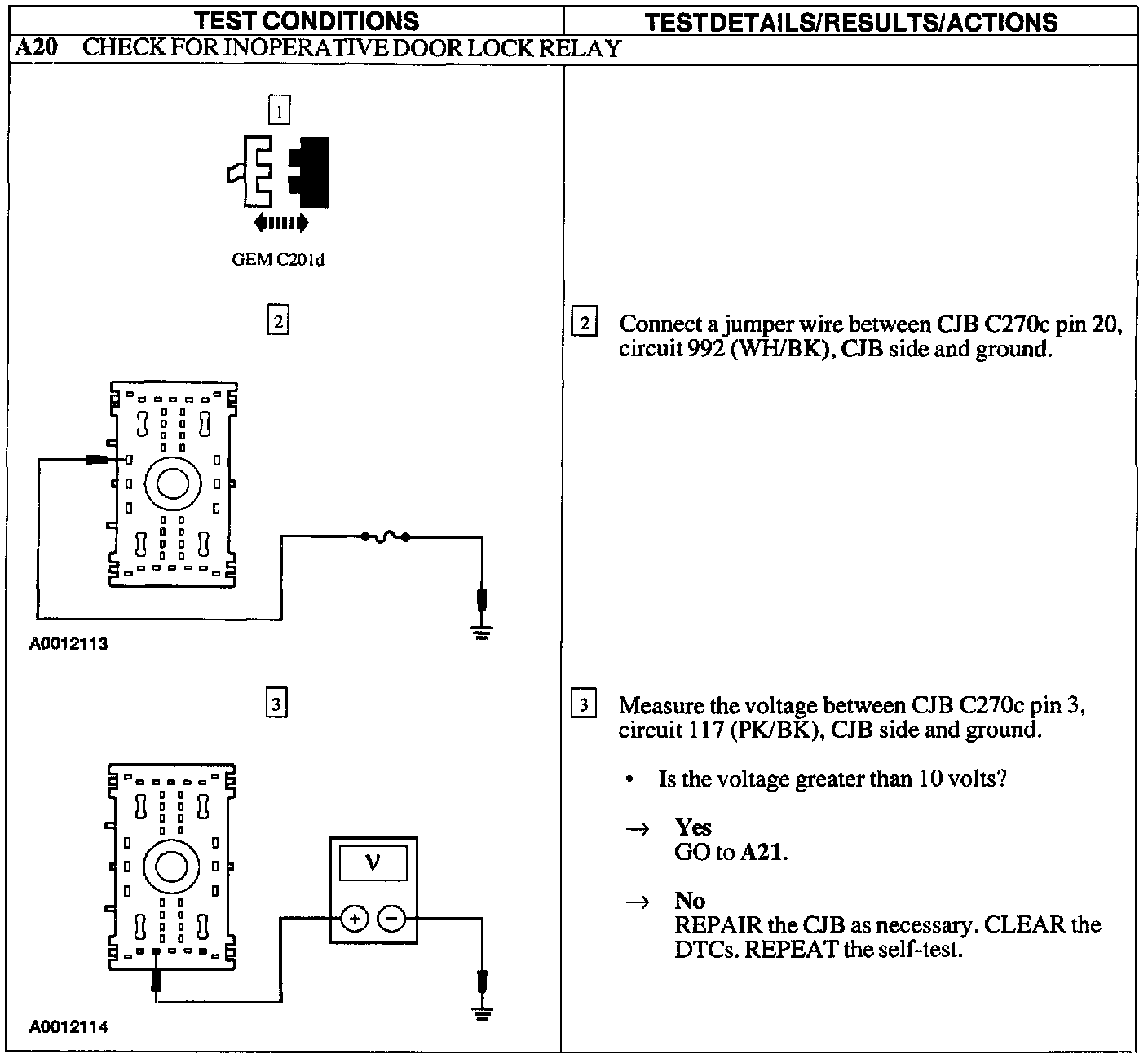

A20:
A21:

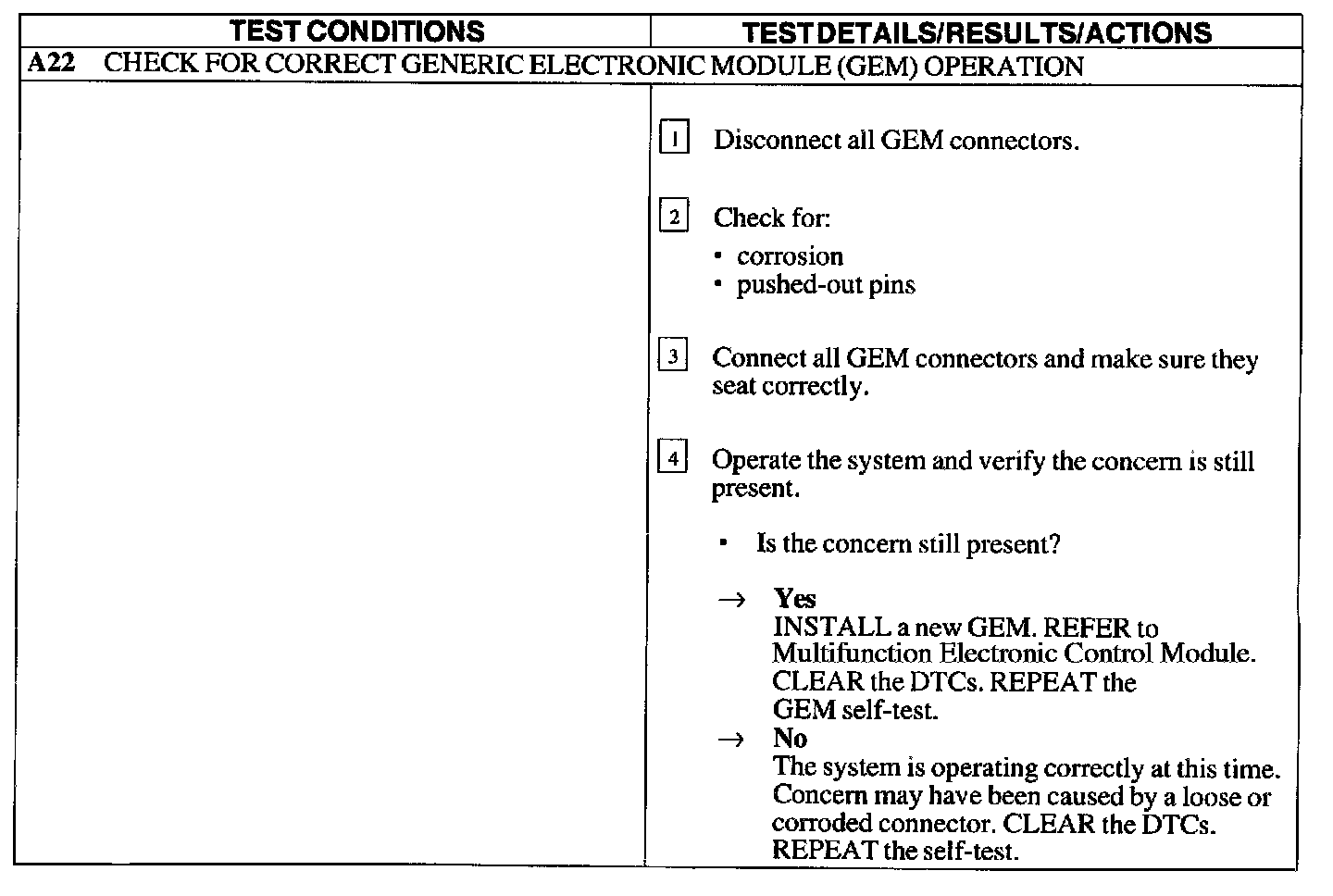

A22:
