Power Door Lock Actuator: Service and Repair

REMOVAL
1. Remove the door ajar switch. For additional information, refer to Door Switch-Front Door or Door Switch-Rear Door.

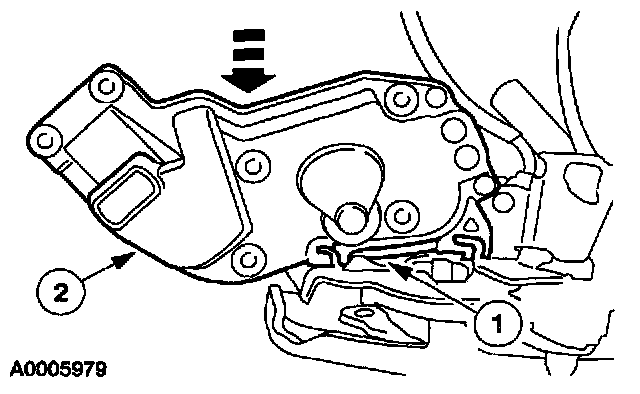

2. Remove the door lock actuator.
1 Lift the locking tab.
2 Slide the actuator off the latch assembly.

NOTE: When installing the door lock actuator, the actuating lever must engage the actuating pin.

INSTALLATION
1. To install, reverse the removal procedure.
