Without Door Disarm Switch

REMOVAL

NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the current key code of the vehicle.

1. Remove the front door exterior handle. For additional information, refer to Exterior Front Door Handle.

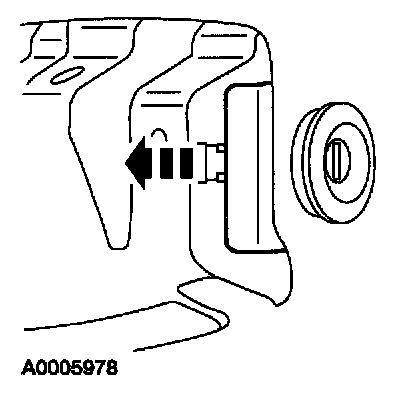

2. Remove the door lock cylinder retainer.
^ Disconnect the door disarm switch electrical connector.

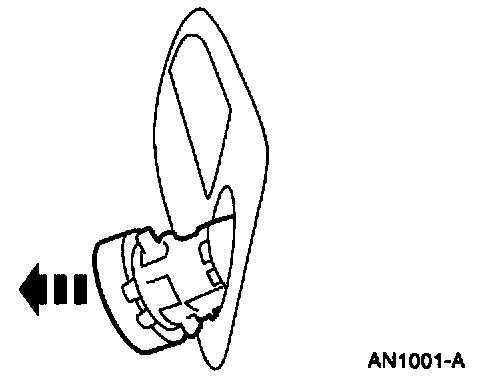

3. Remove the door lock cylinder.
^ Disconnect the actuating rod.

INSTALLATION
1. To install, reverse the removal procedure.
