With Door Disarm Switch

REMOVAL

NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the current key code of the vehicle.

1. Remove the front door exterior handle. For additional information, refer to Exterior Front Door Handle.







2. Remove the door lock cylinder retainer.







3. Position the door lock cylinder aside to gain access to the door disarm switch.
^ Disconnect the actuating rod.

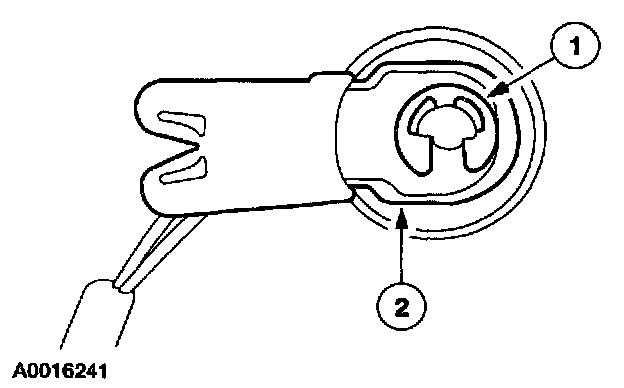

4. Disconnect the latch lever from the door lock cylinder.
1 Remove the E-clip.
2 Disconnect the latch lever.







5. Remove the door disarm switch.
^ Disconnect the door disarm switch electrical connector.

NOTE: The door disarm switch can be installed in more than one position. Before removing the switch from the cylinder it may be necessary to mark the position of the switch in relation to the lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.
