Loadspace Trim Panel

LOADSPACE TRIM PANEL

Removal and Installation
1. Remove the LH and RH quarter trim panels.
2. Remove the rear seat backrest.

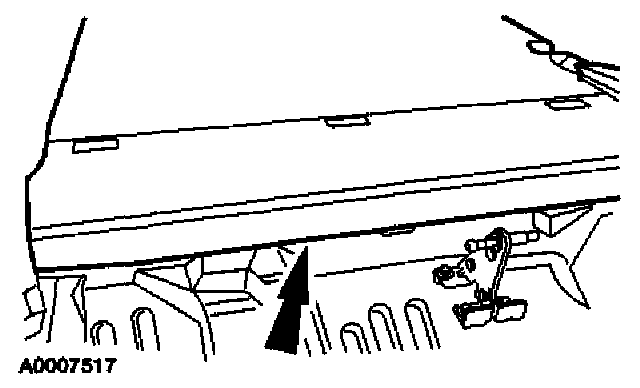

3. Remove the six loadspace trim panel to floor nuts.

4. Remove the carpet from the tire well.

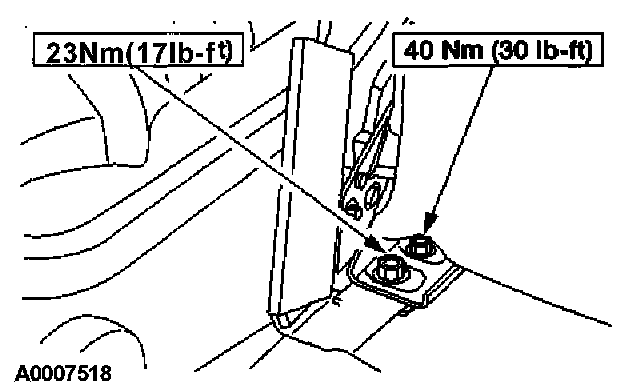

5. Remove the two auxiliary safety belt anchor nuts and two auxiliary seat to floor bolts.

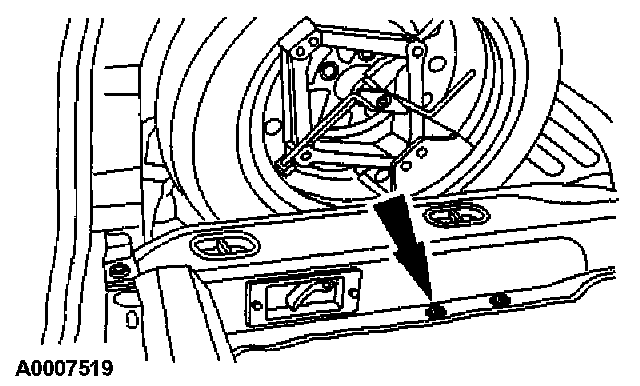

6. Remove the six loadspace trim panel bolts.
7. Remove the loadspace trim panel.
8. If equipped, remove the auxiliary seat backrest from the loadspace panel.
9. To install, reverse the removal procedure.
