B-Pillar Trim Panel

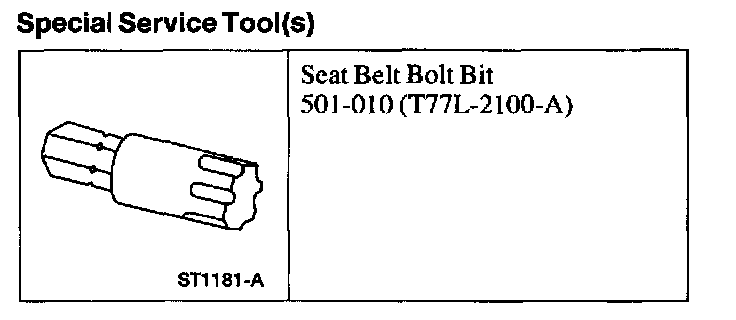

Seat Belt Bolt Bit:

SPECIAL SERVICE TOOL(S)

REMOVAL

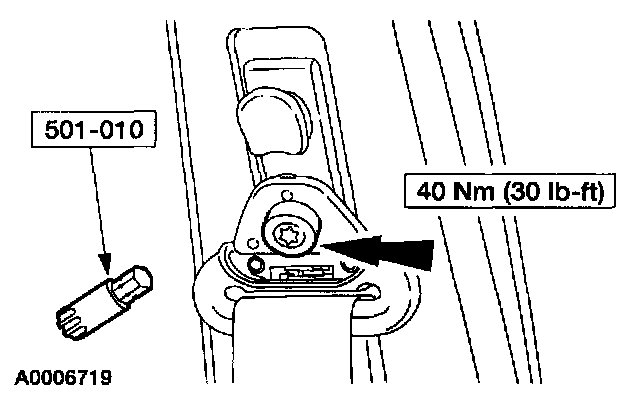

1. Remove the safety belt D-ring cover and using the special tool, remove the D-ring bolt.

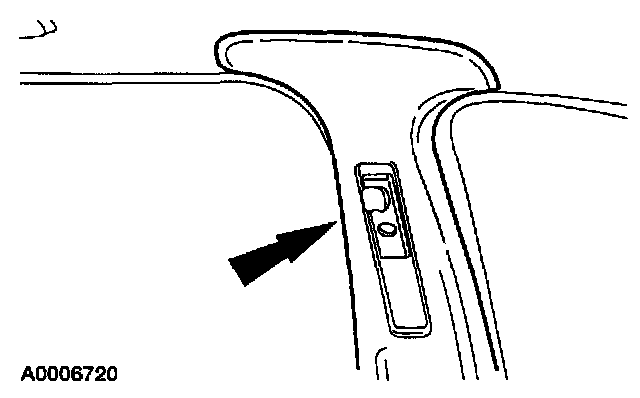

2. Remove the upper B-pillar trim panel.

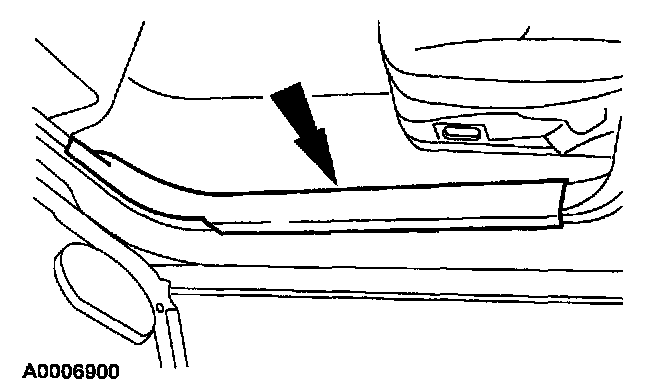

3. Remove the front scuff plate.

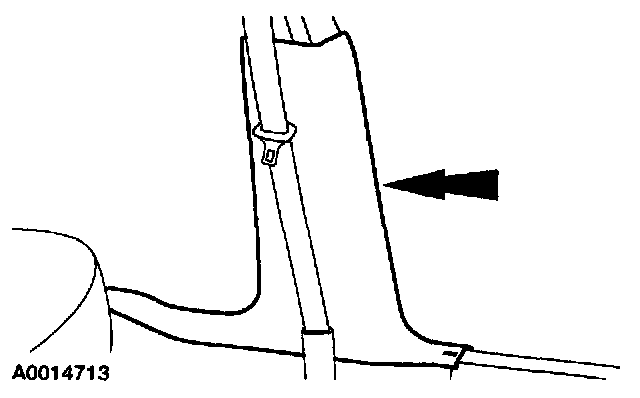

4. Remove the lower B-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
