Removal and Replacement

PARCEL SHELF

Removal and Installation
1. Remove the rear seat backrest and the rear seat cushion.

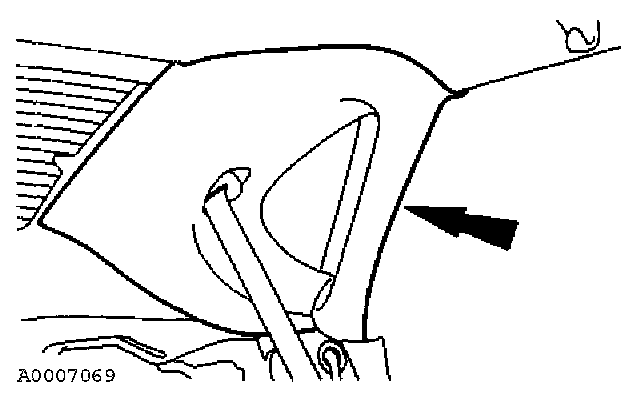

2. Remove the LH and RH roof trim panels.







3. Remove the pin-type retainers and the parcel shelf.
4. To install, reverse the removal procedure.
