Trunk / Liftgate Cover: Service and Repair

LIFTGATE TRIM PANEL

Removal and Installation

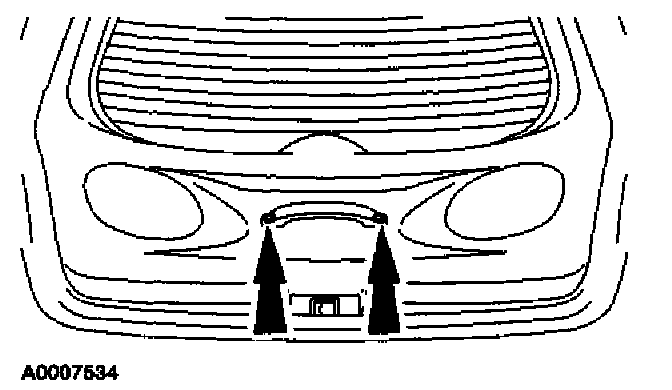

1. Remove the screw covers, screws and the assist handle.

2. NOTE: The lower liftgate trim panel must be removed before the upper liftgate trim panel.

Remove the upper and lower liftgate trim panels.
- Remove the two pin-type retainers.

3. To install, reverse the removal procedure.
