Rear Door Panel: Service and Repair

REAR DOOR TRIM PANEL

Removal and Installation

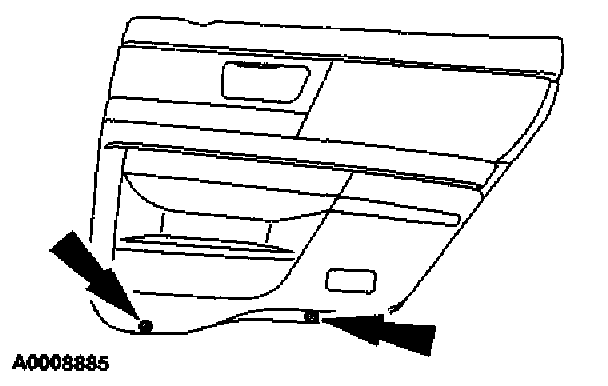

1. Remove the rear door trim panel screws.

2. NOTE:
- The rear door trim panel has eight two-part pin-type retainers. The male part of the retainer will remain with the trim panel and the female part will remain with the door.
- To release the door trim panel pin-type retainers, first pull outward on the bottom of the door trim panel.

Remove the rear door trim panel.
- Disconnect the window regulator control switch electrical connector.

3. To install, reverse the removal procedure.
