Front Door Panel: Service and Repair

FRONT DOOR TRIM PANEL

Removal and Installation
1. Disconnect the battery ground cable.

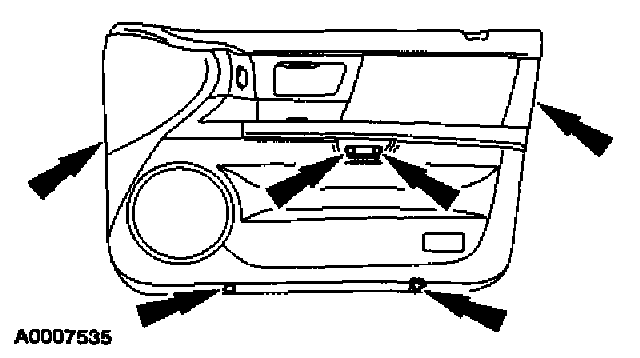

2. Remove the front door trim panel screws.

3. NOTE:
- The front door trim panel has six two-part pin-type retainers. Then male part of the trim retainer will remain with the trim panel and the female part will remain with the door.
- To release the door trim panel pin-type retainers, first pull outward on the bottom of the door trim panel.

Remove the front door trim panel.
- Disconnect the electrical connectors.

4. To install, reverse the removal procedure.
