Rear Bumper Reinforcement: Service and Repair

REAR BUMPER

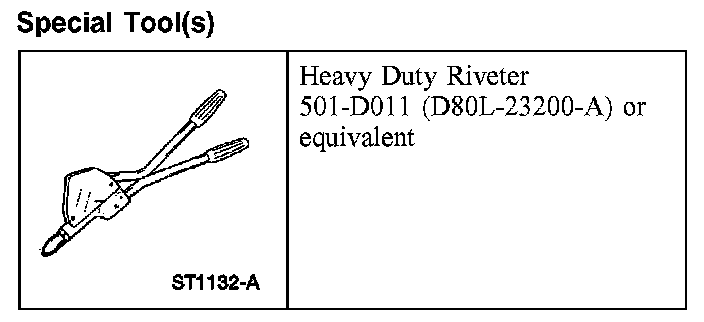

Special Tool(s):

Special Tool(s)

Removal and Installation
1. Remove the rear bumper cover.

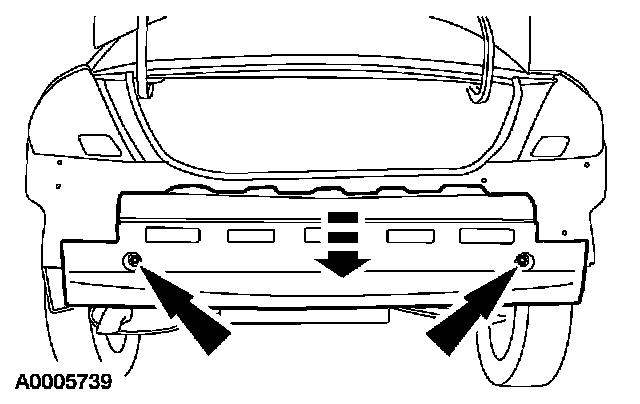

2. Remove the rivets and the rear bumper isolator.

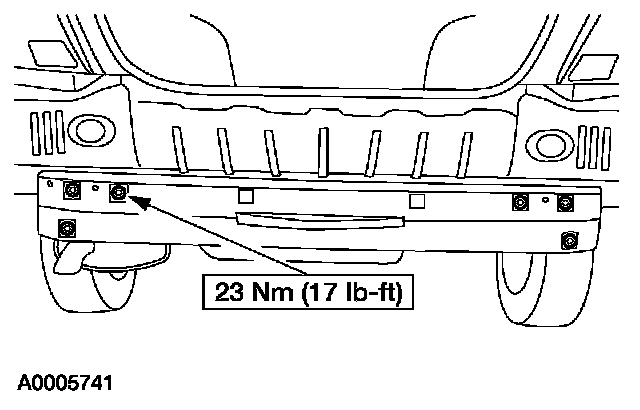

3. Remove the bolts and the rear bumper.

4. NOTE: When installing the bumper isolator, the special tool must be used to install the new rivets.

To install, reverse the removal procedure.
