Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Anti-Theft - Perimeter >> Test B: Alarm Does Not Arm/Disarm - Keyless Entry Remote Transmitter

Test B: Alarm Does Not Arm/Disarm - Keyless Entry Remote Transmitter

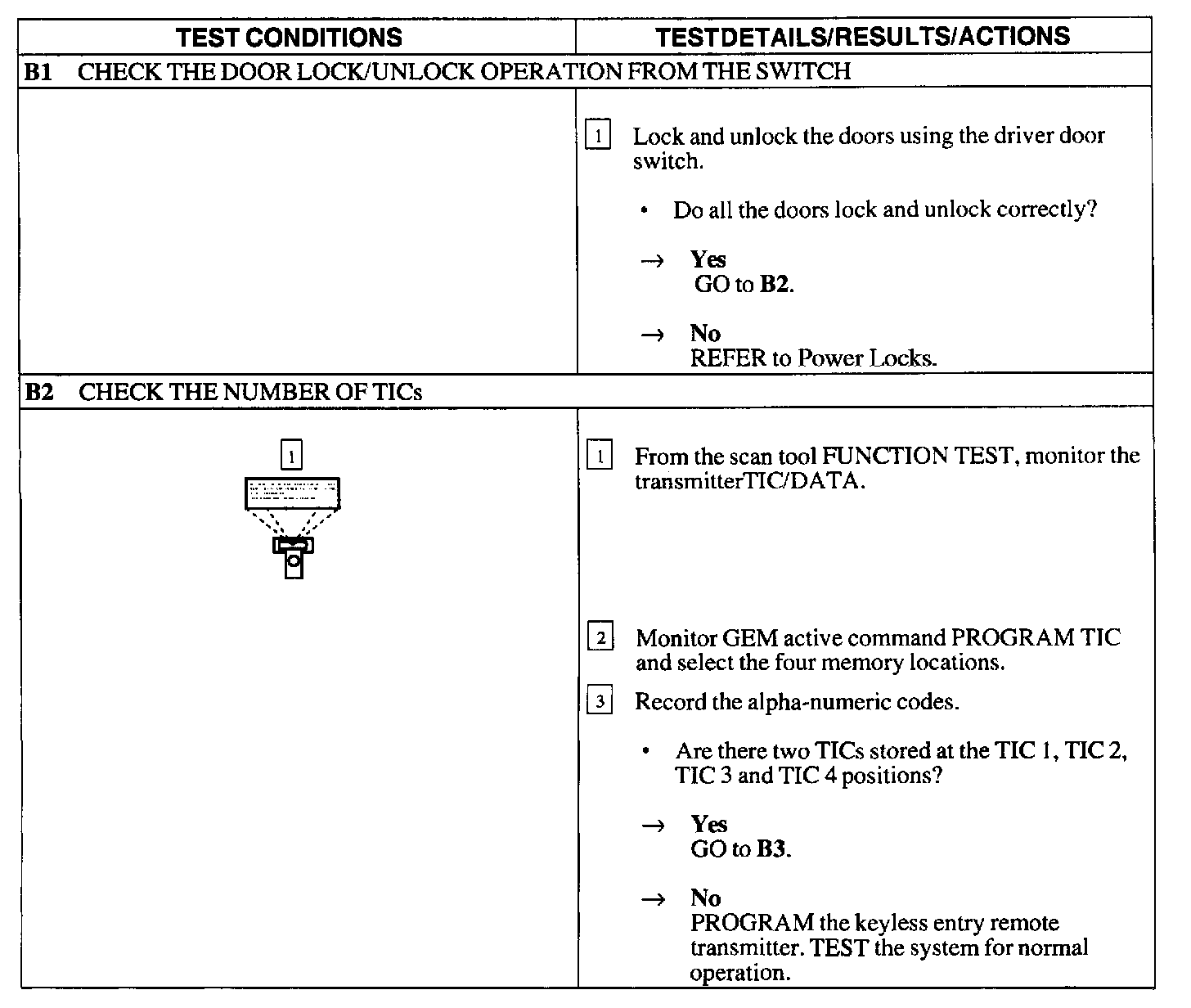

B1 - B2:

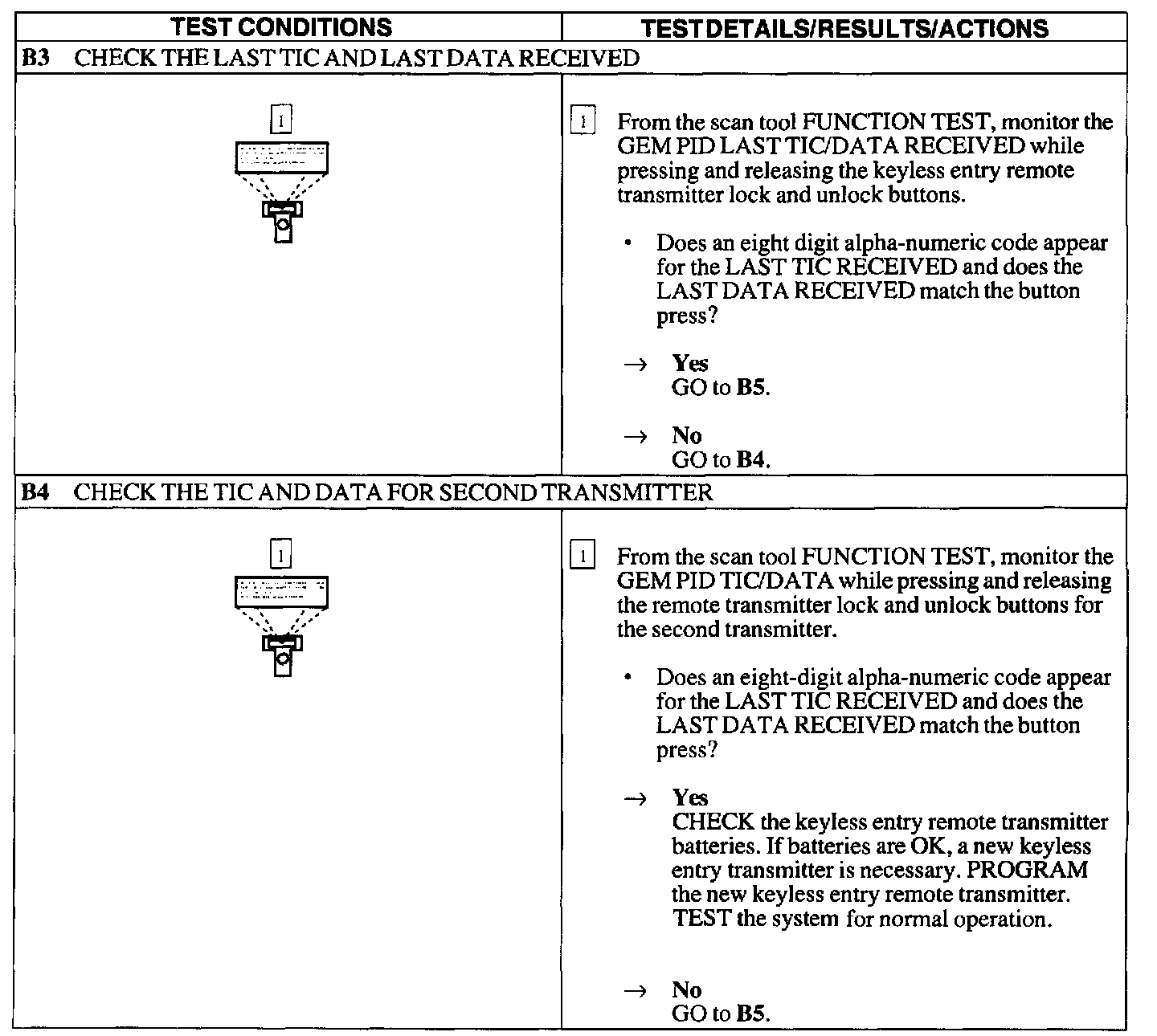

B3 - B4:

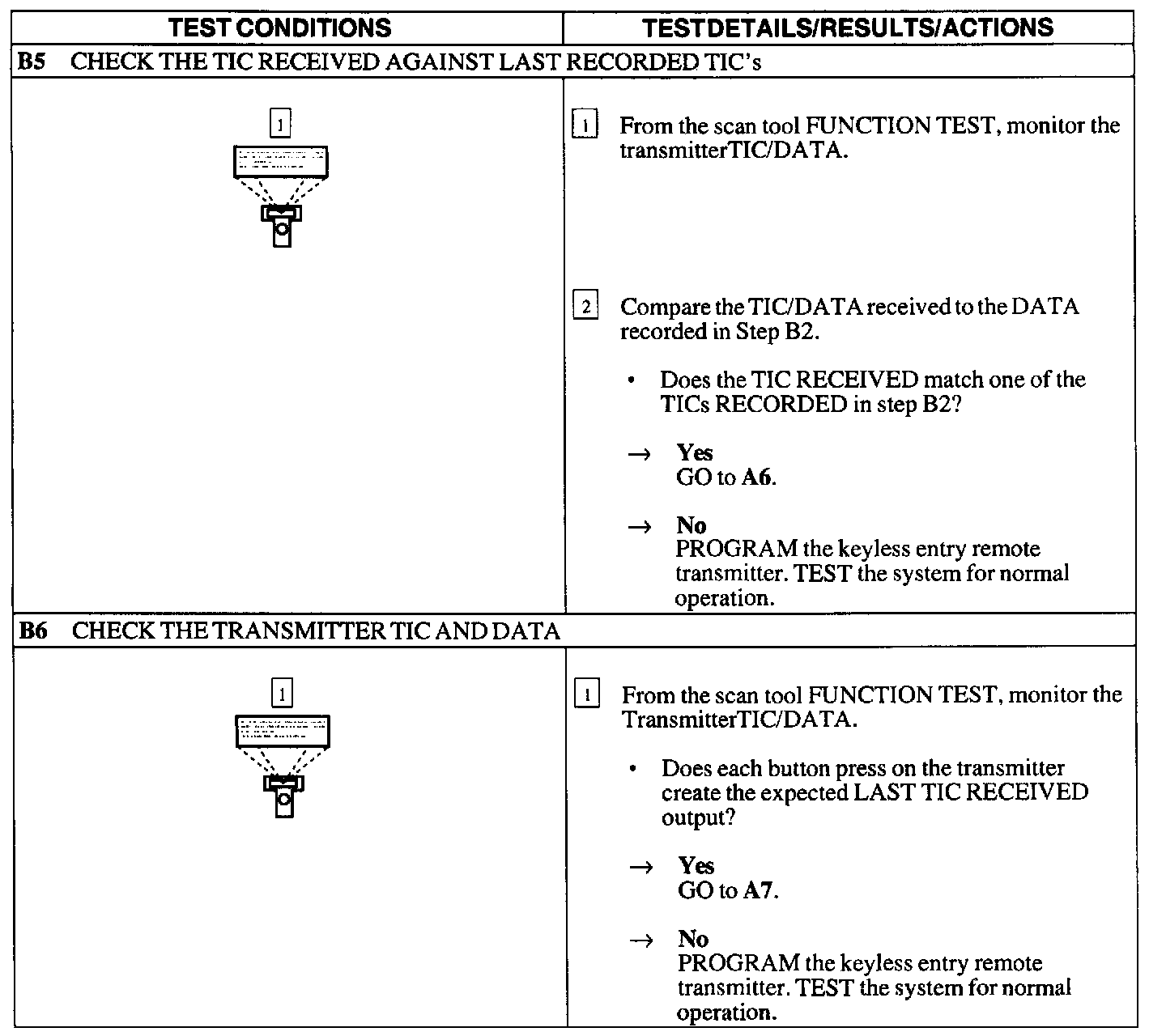

B5 - B6:

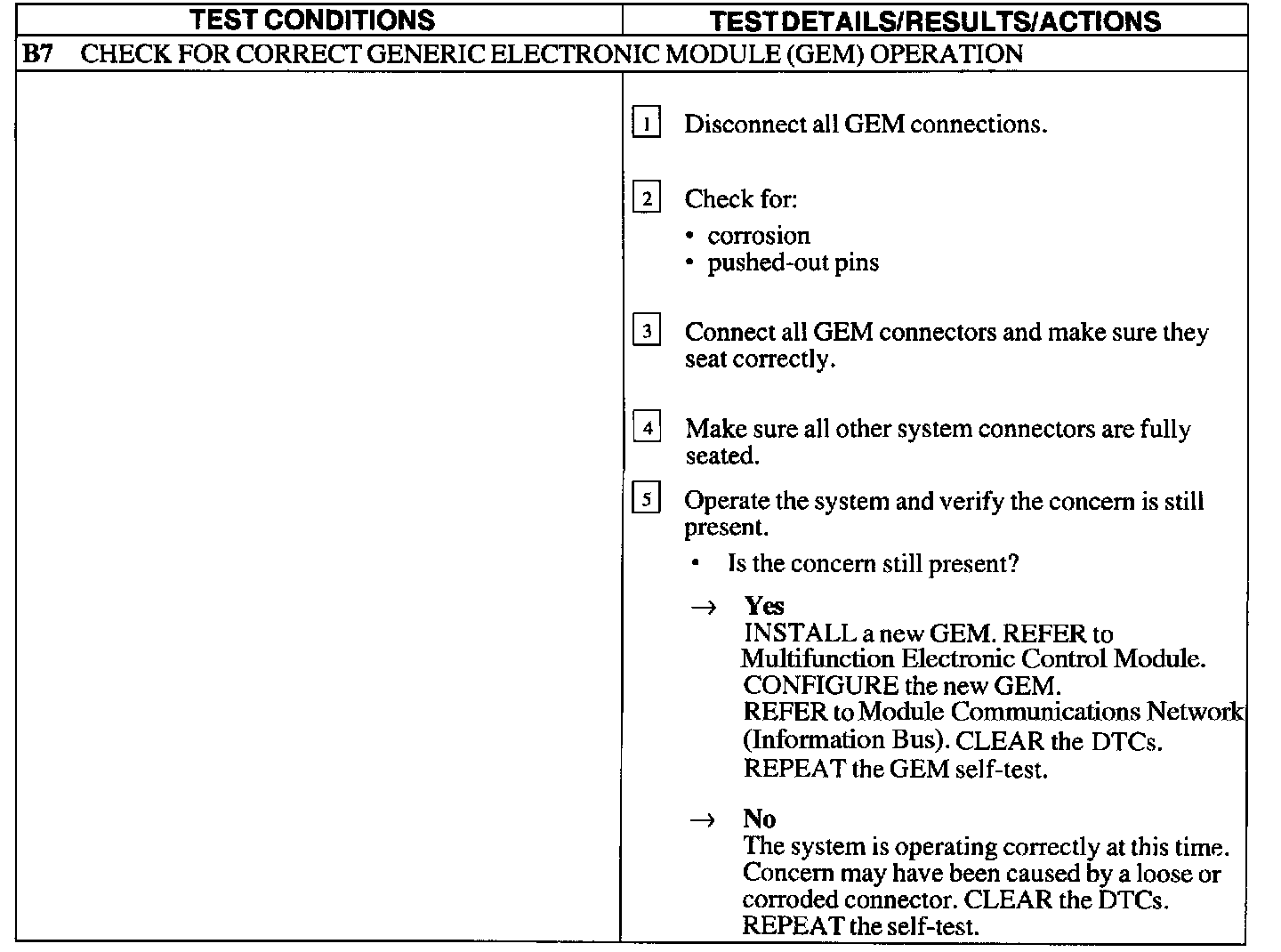

B7:

B: Alarm System Does Not Arm/Disarm - Using The Keyless Entry Remote Transmitter
