Home >> Mercury >> 2000 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - External Controls >> Test A: Shift Interlock System Does Not Release/Lock Correctly

Test A: Shift Interlock System Does Not Release/Lock Correctly

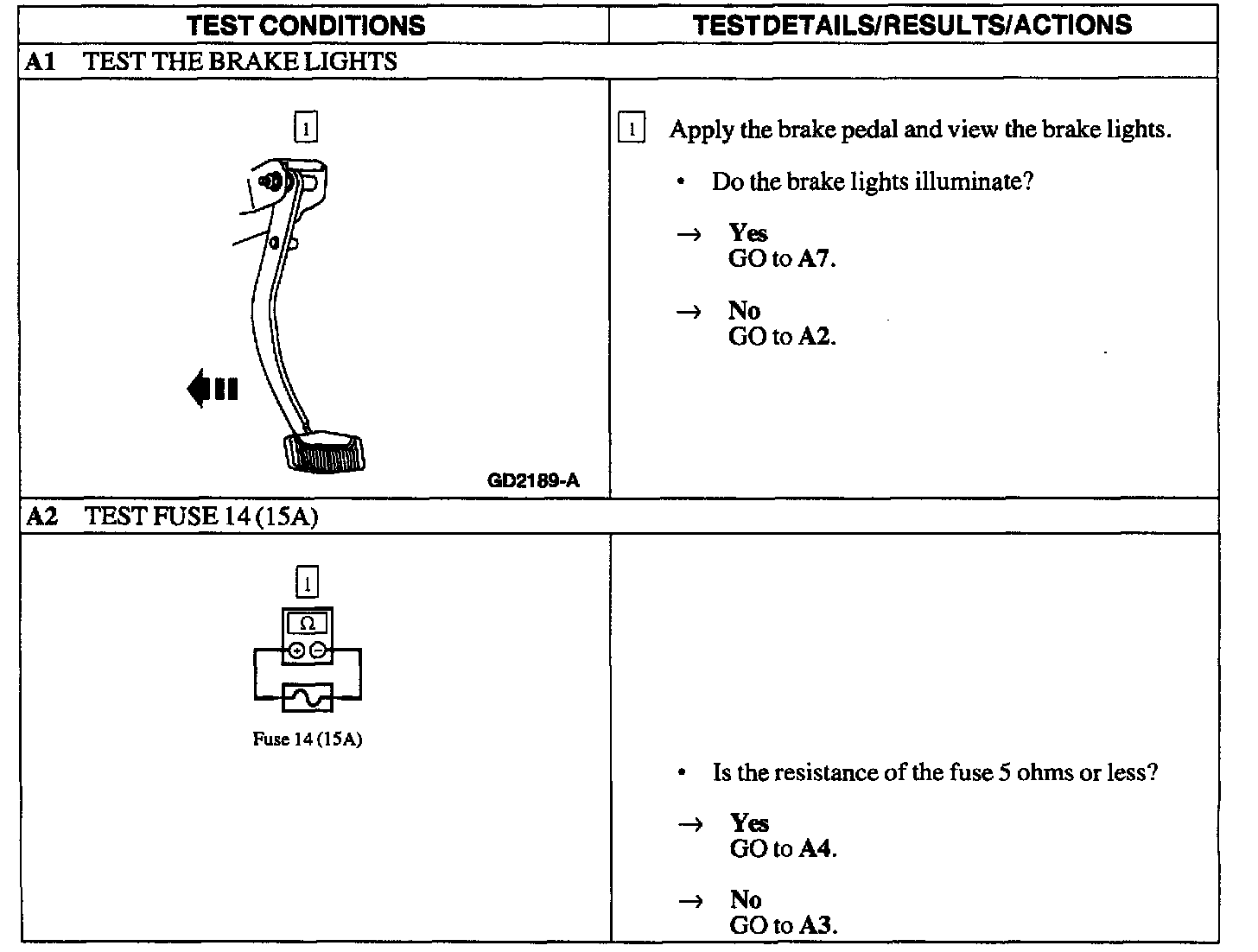

A1 - A2

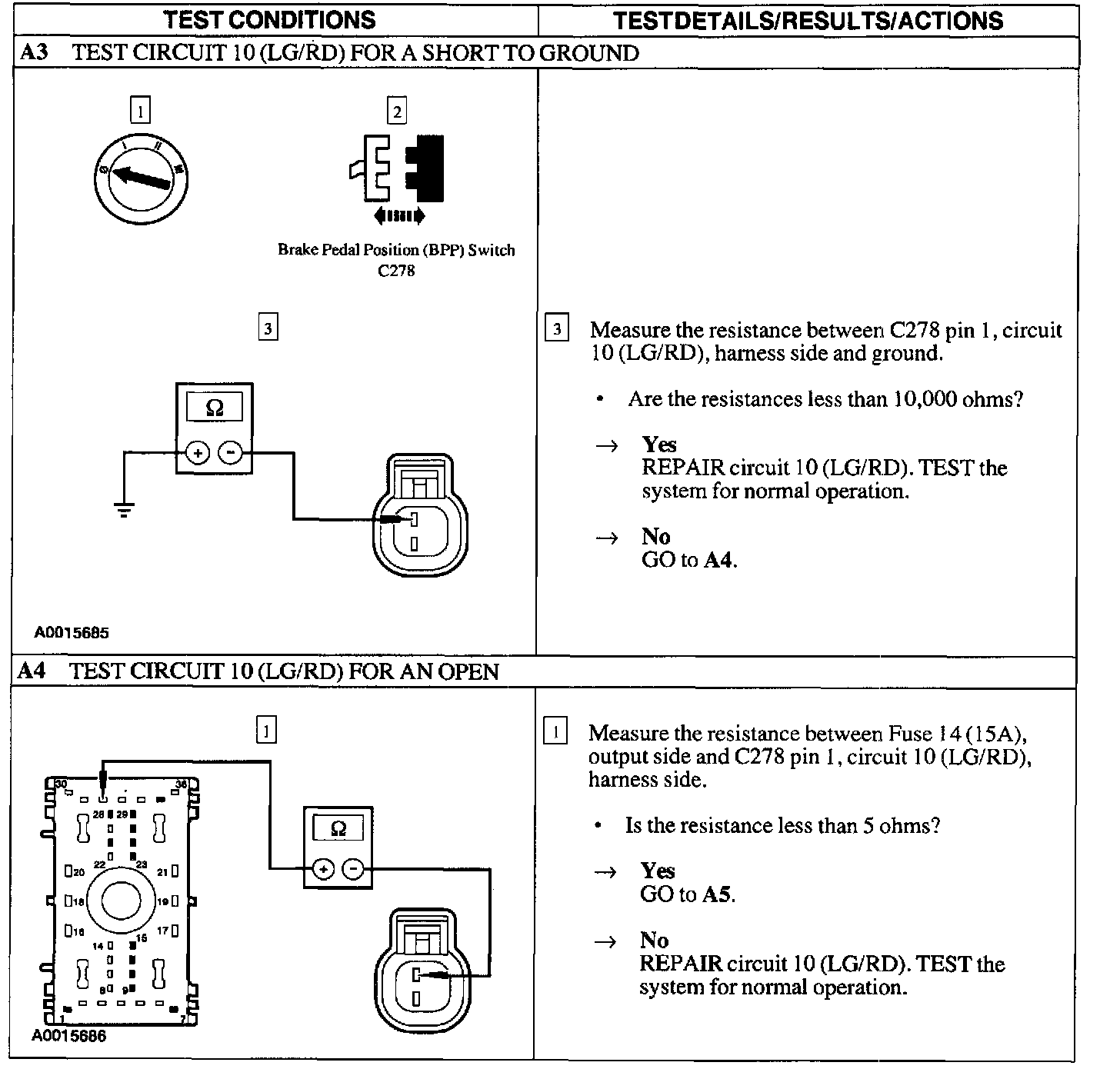

A3 - A4

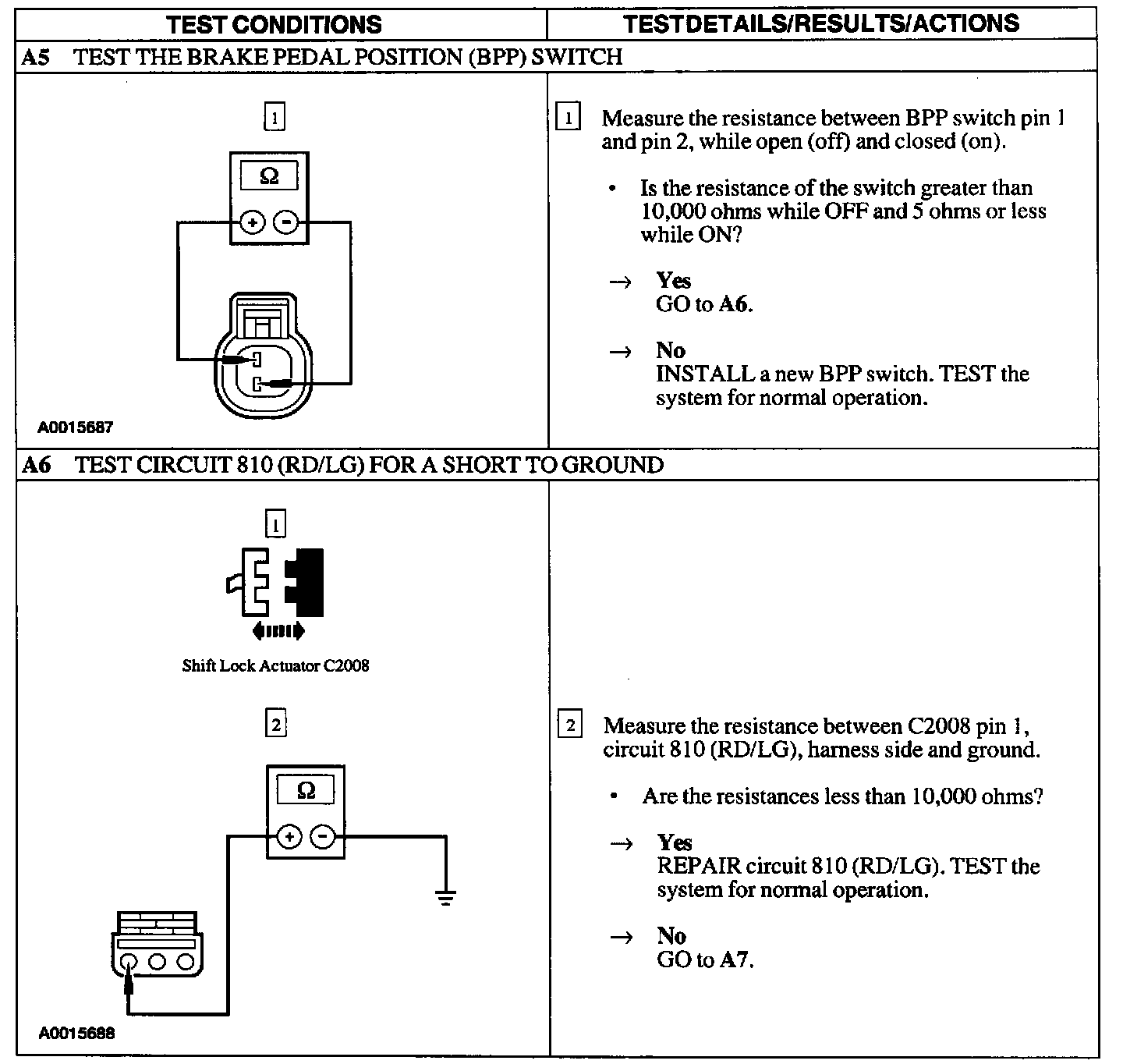

A5 - A6

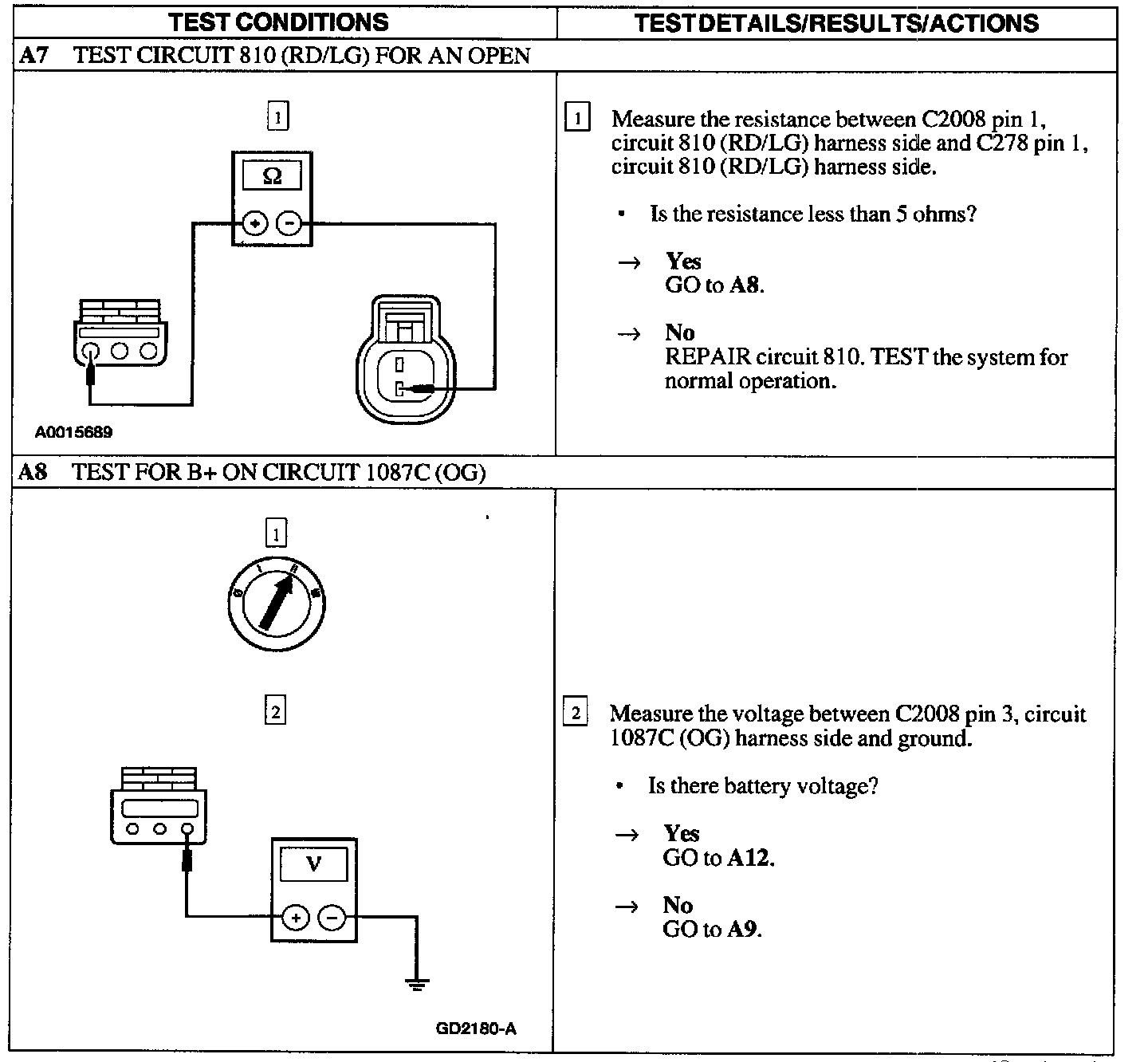

A7 - A8





A9 - A11

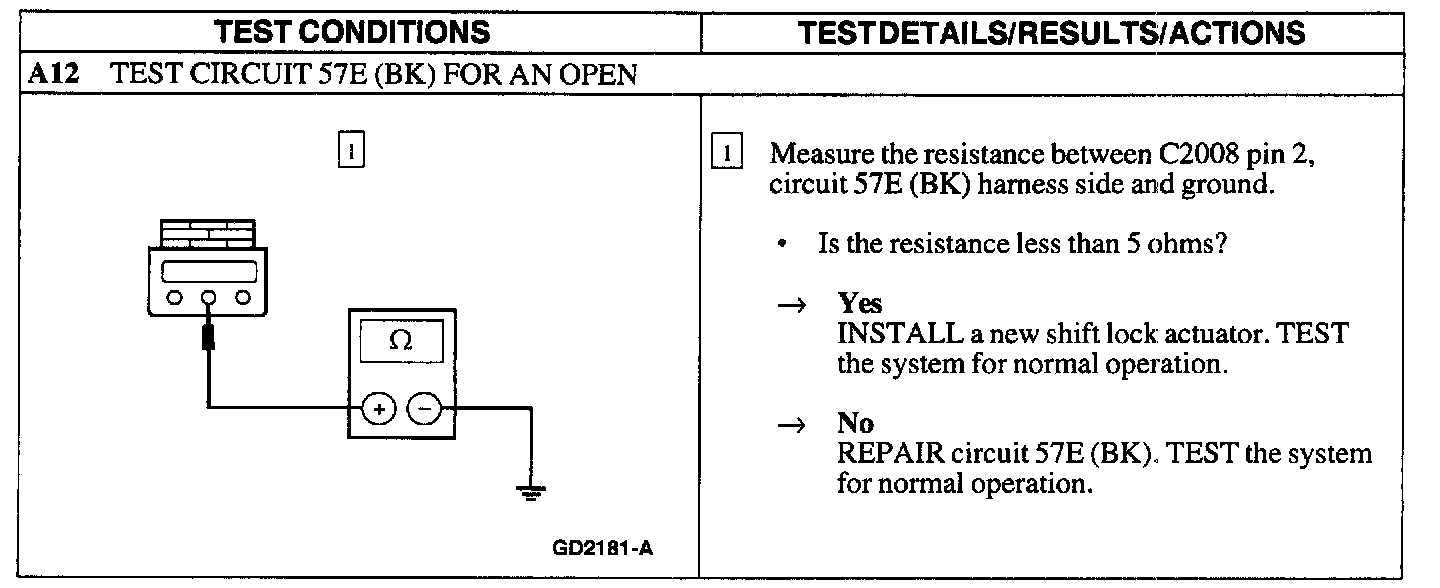

A12
