Driven Sprocket Support

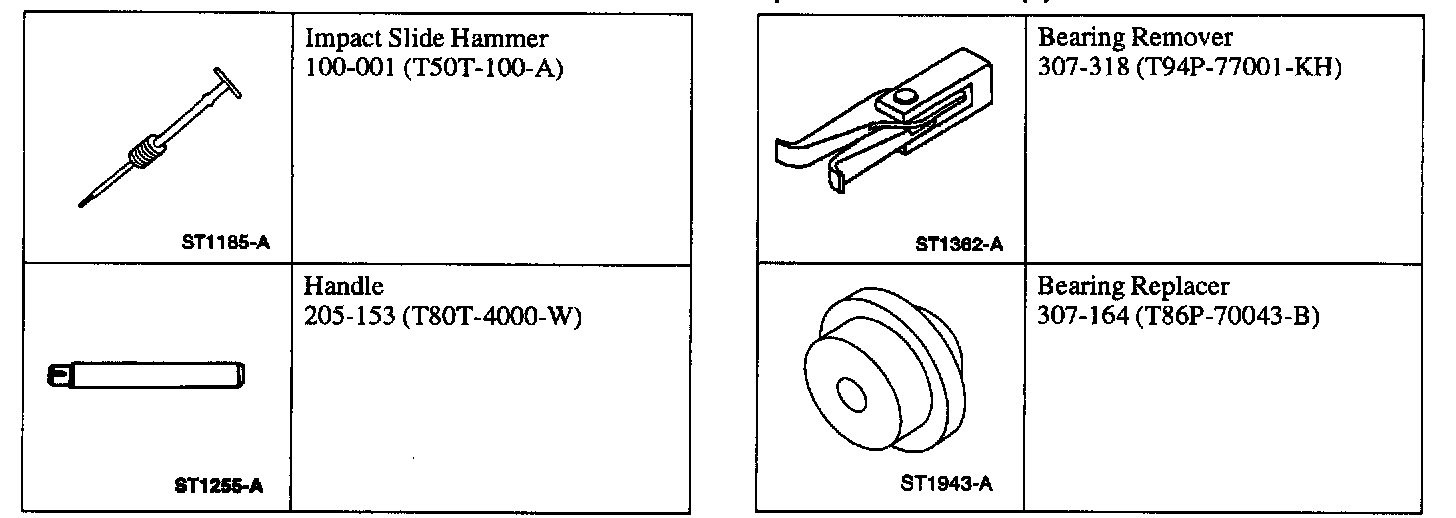

Special Tools:

Disassembly





1. Remove the Teflon seal rings and the No. 5 thrust washer.

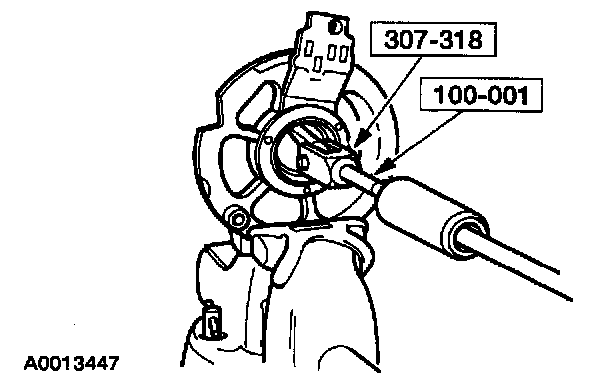

2. Using the special tools, remove the bearing.

Assembly

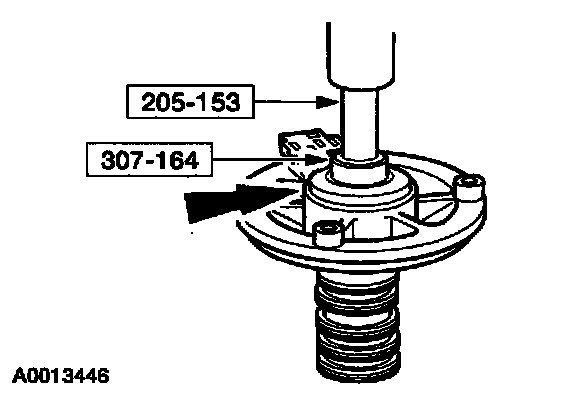

1. If removed, install a new driven sprocket bearing. Using an arbor press and the special tools, install a new driven sprocket bearing.

2. CAUTION: The seal rings must be installed correctly. Transaxle failure could result.

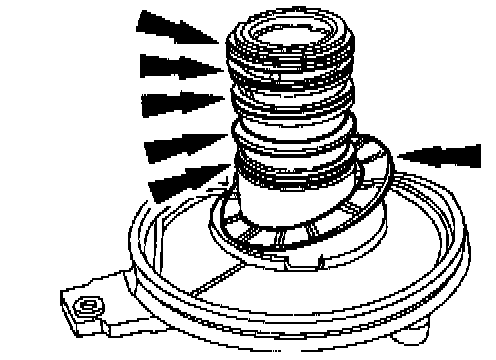

Install new Teflon seals and the No. 5 thrust washer.





3. Make sure that the seals are mated correctly.
