Compressor Cut-Off/Cycling Switch

REMOVAL







1. Disconnect the A/C cycling switch electrical connector.

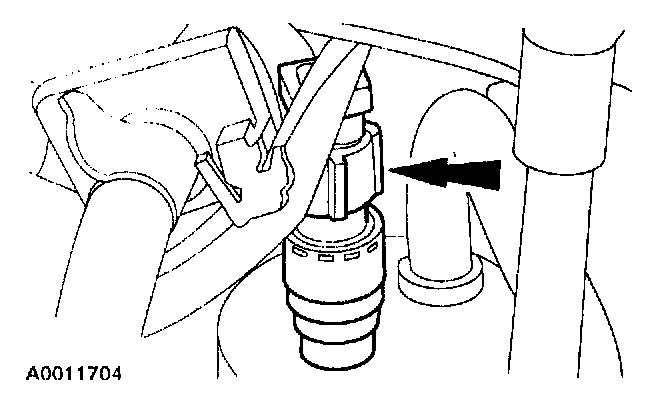

2. Remove the A/C cycling switch. Remove and discard the O-ring seal.
- During installation, install a new O-ring seal lubricated with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B.

INSTALLATION
1. To install, reverse the removal procedure.
