Coil-On-Plug - RH

REMOVAL

NOTE: Upper intake manifold removed for clarity.

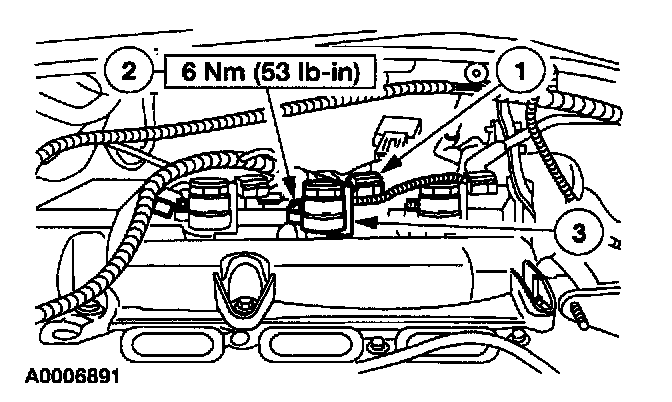

1. Remove the ignition coil-on-plug.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the coil-on-plug.

INSTALLATION
1. To install, reverse the removal procedure.
^ Apply a light film of Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A or equivalent meeting Ford specification ESE-M1C171-A to the insulator of the spark plug prior to installation.
