Oil Separator: Service and Repair

REMOVAL
1. Remove one of the cylinder heads. For additional information, refer to Engine.

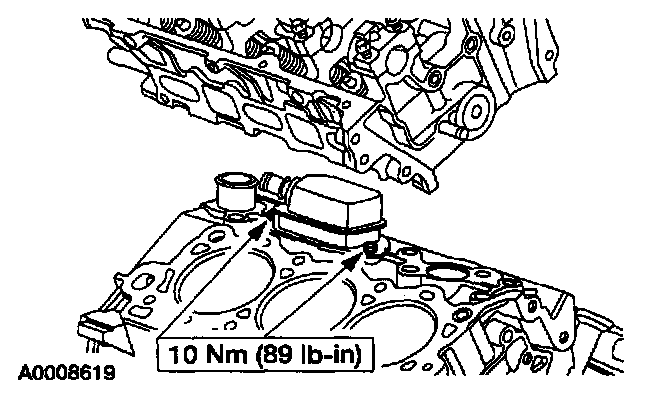

2. Remove the two bolts.

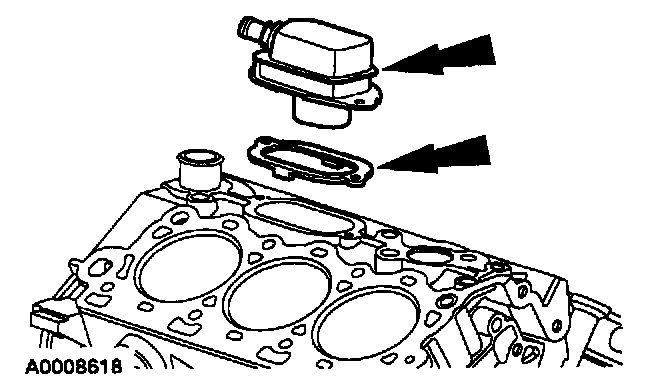

3. Remove the crankcase vent oil separator and discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carefully clean both sealing surfaces and install a new crankcase vent oil separator gasket.

NOTE: The sealing surfaces are soft metal.
