Differential Pressure Feedback EGR Valve

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.







2. Remove the differential pressure feedback EGR sensor.

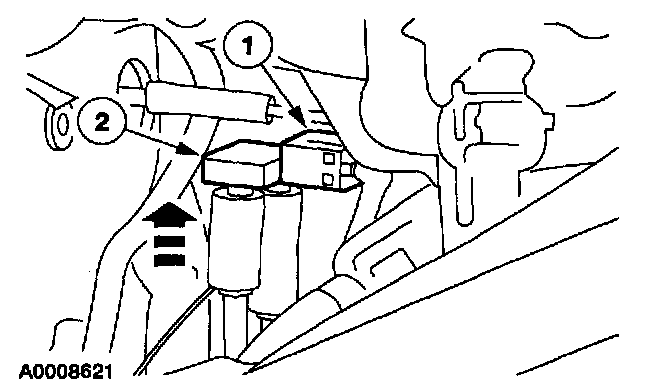

1 Disconnect the electrical connector.
2 Carefully remove the differential pressure feedback EGR sensor by sliding up and off the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
