Home >> Mercury >> 2000 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test M: One Or More Stoplamps Are Inoperative

Test M: One Or More Stoplamps Are Inoperative

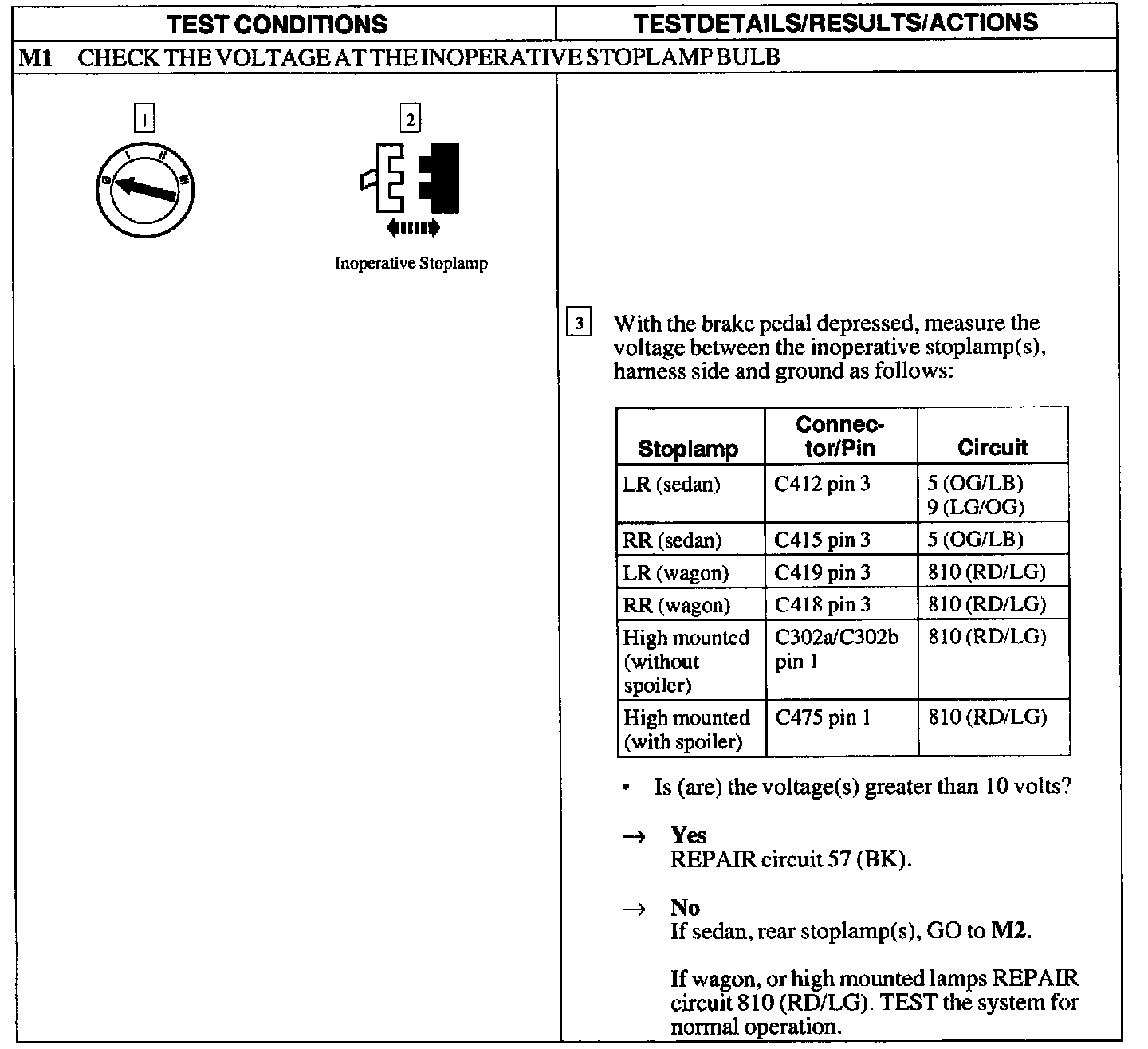

M1:



M2:
