Home >> Mercury >> 2000 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test K: Brake Warning Indicator Is Never on-With Parking Brake

Test K: Brake Warning Indicator Is Never on-With Parking Brake

K1:

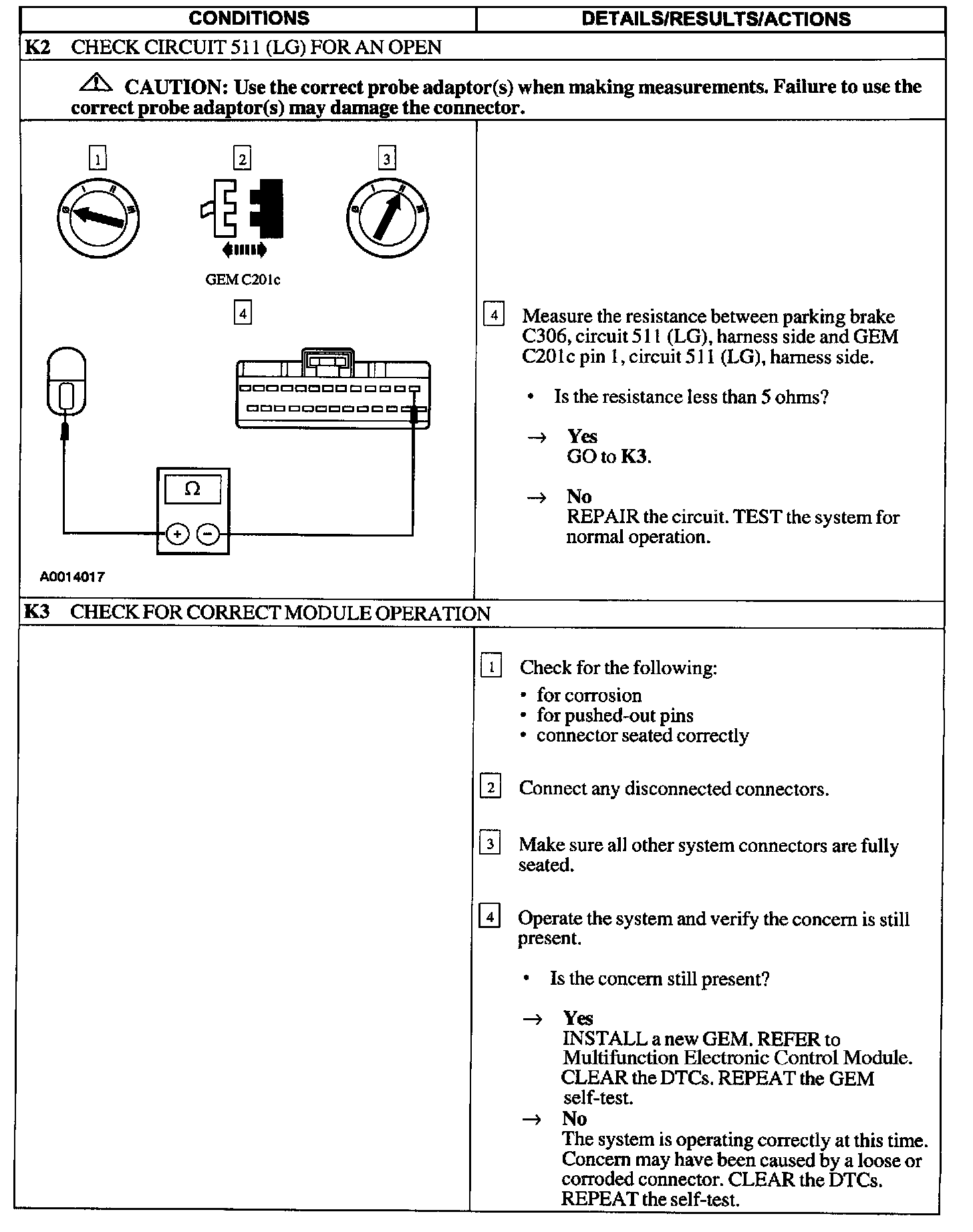

K2 - K3:
