Home >> Mercury >> 2000 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test C: Incorrect Fuel Gauge Indication - With Flex Fuel

Test C: Incorrect Fuel Gauge Indication - With Flex Fuel

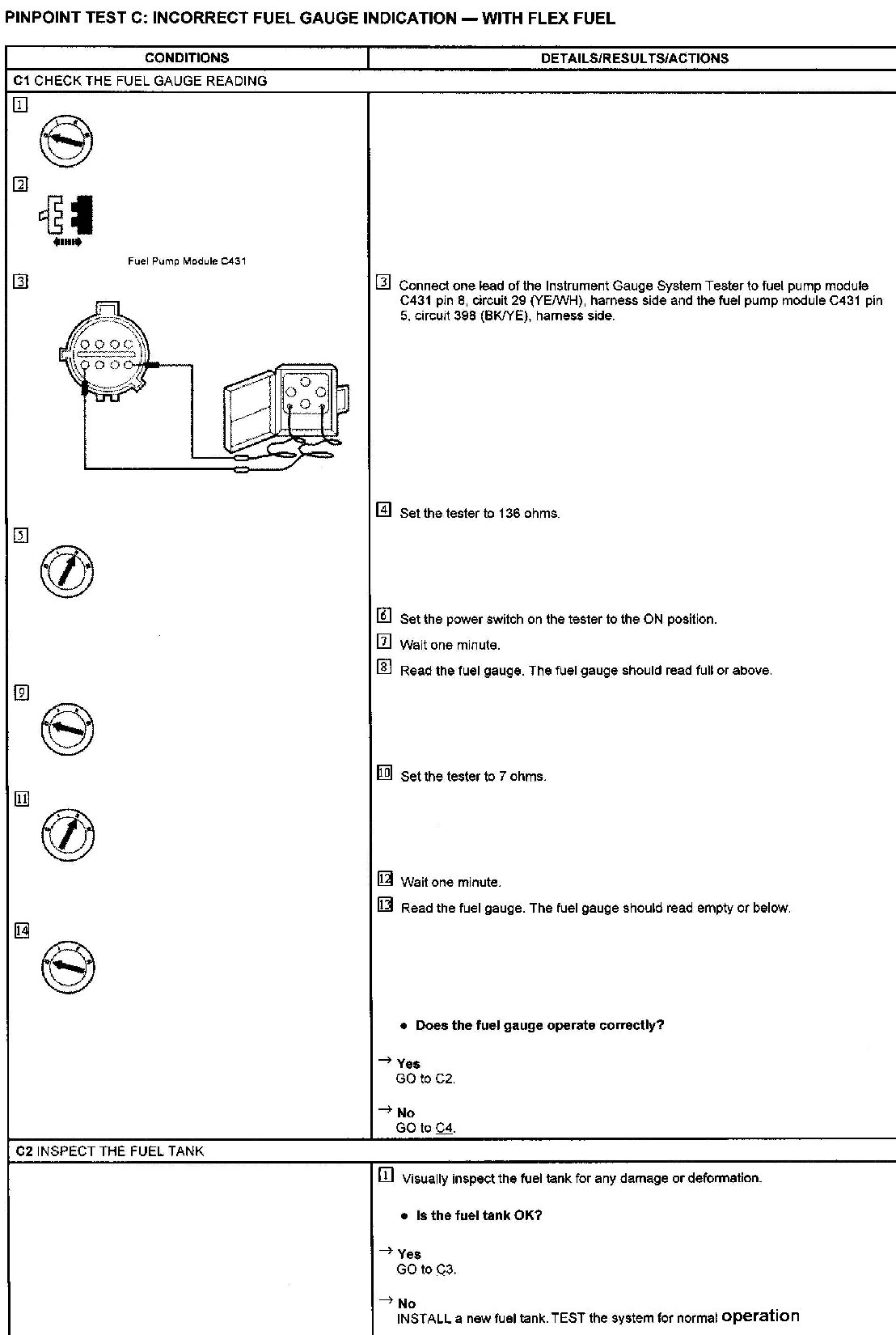

Test C1-2

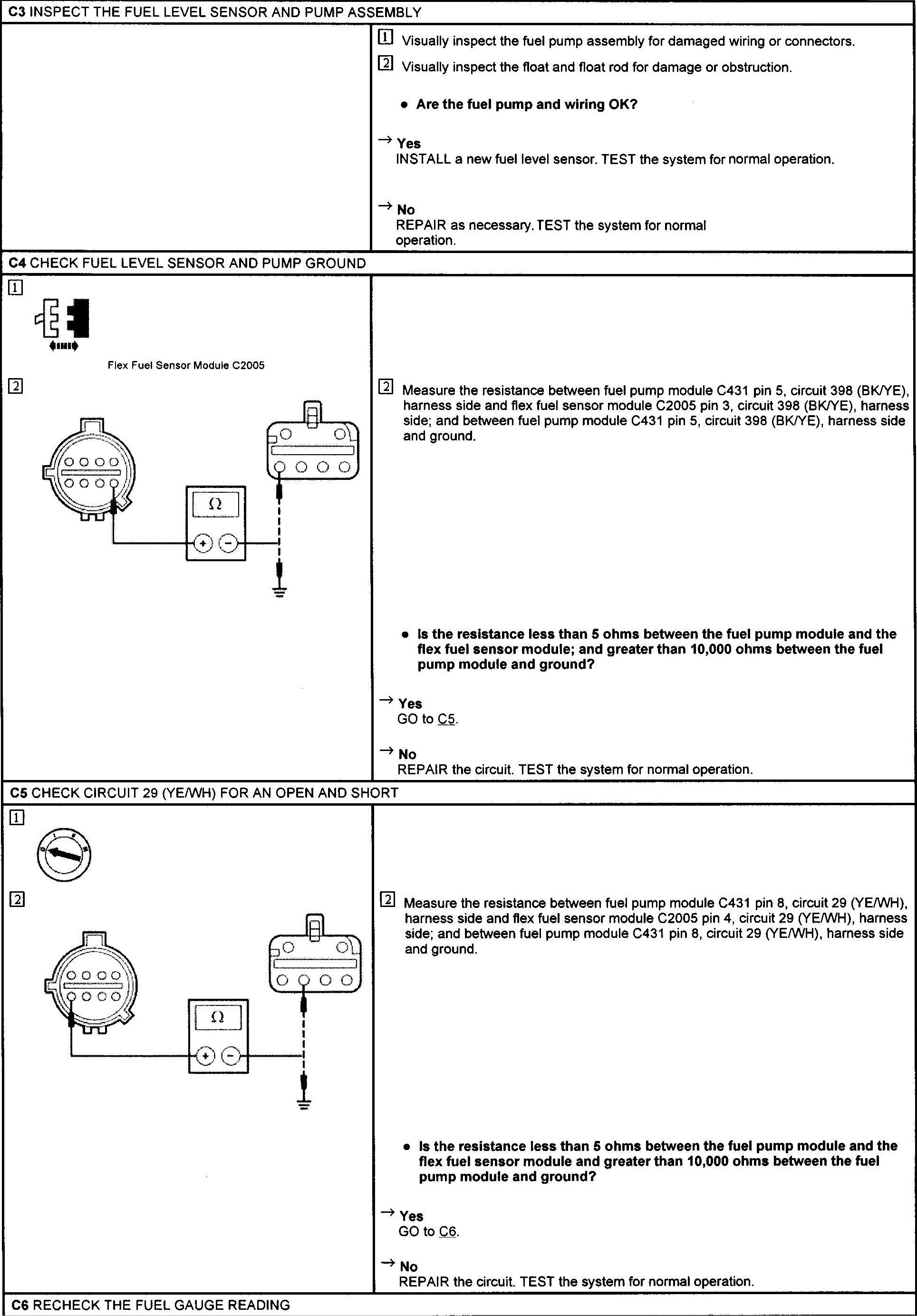

Test C3-5

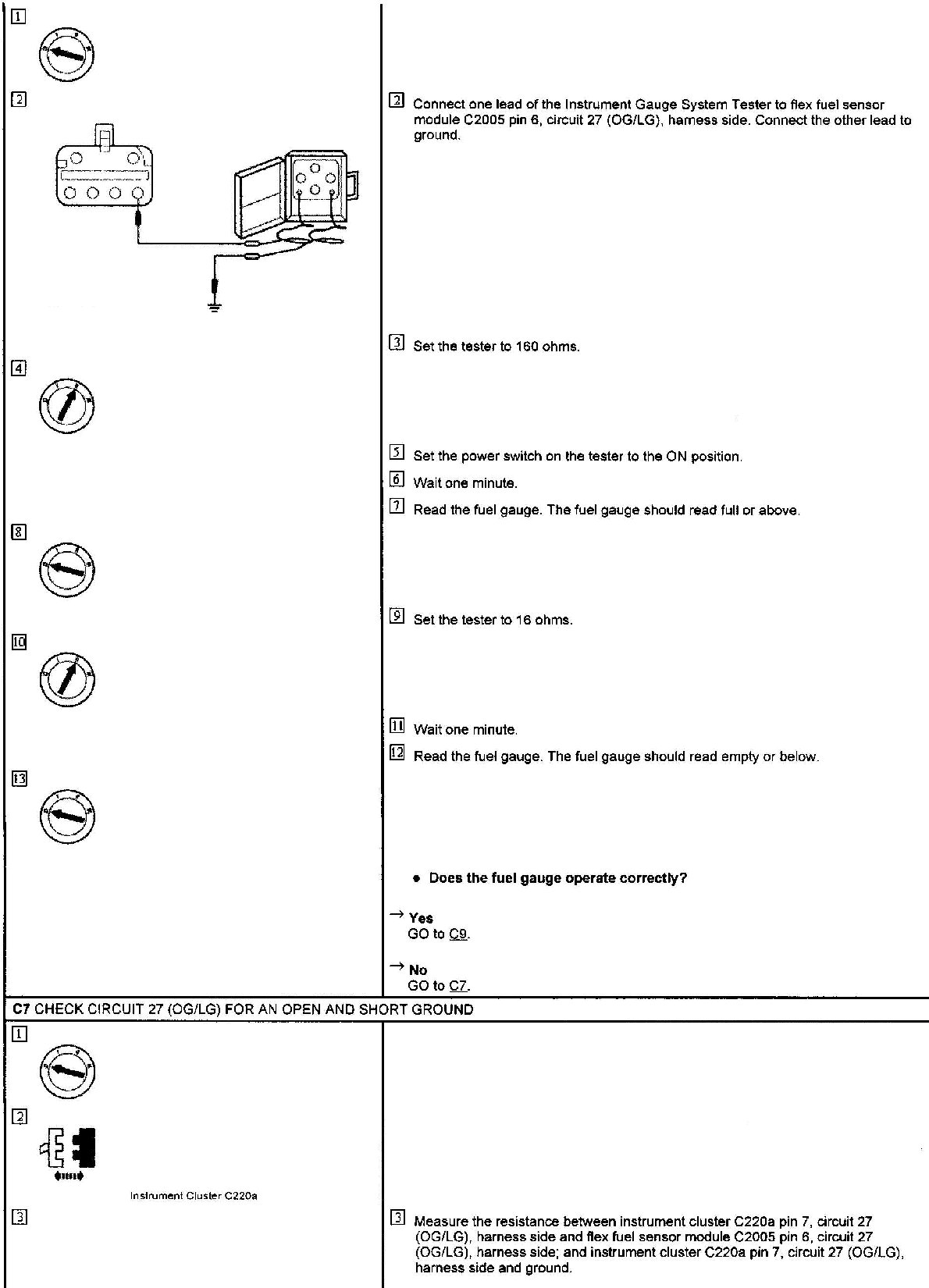

Test C6-7

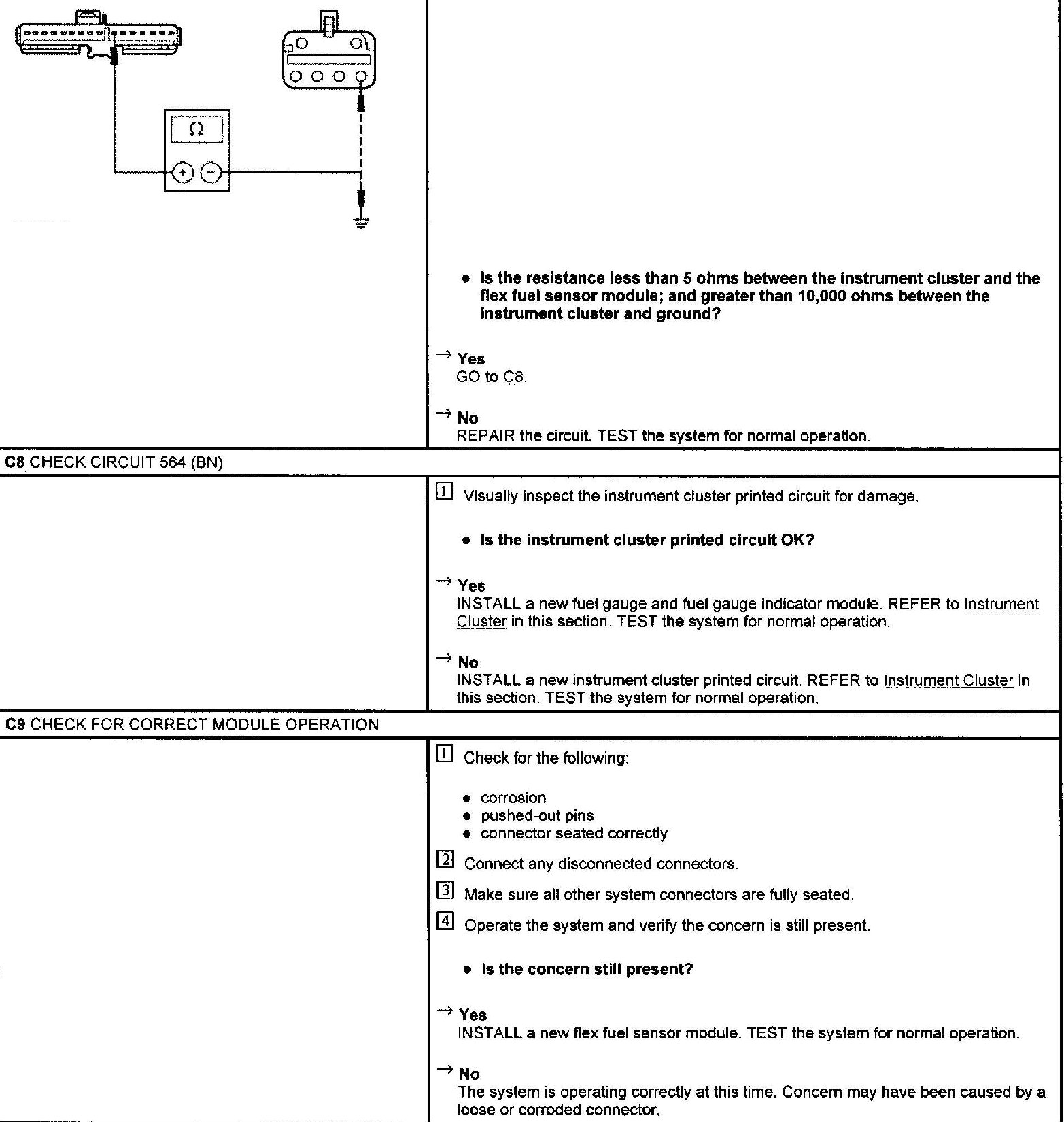

Test C7-9
