Right Hand Side

Special Tools:

Removal
1. Remove the cowl panel grille.
2. Remove the RH valve cover.

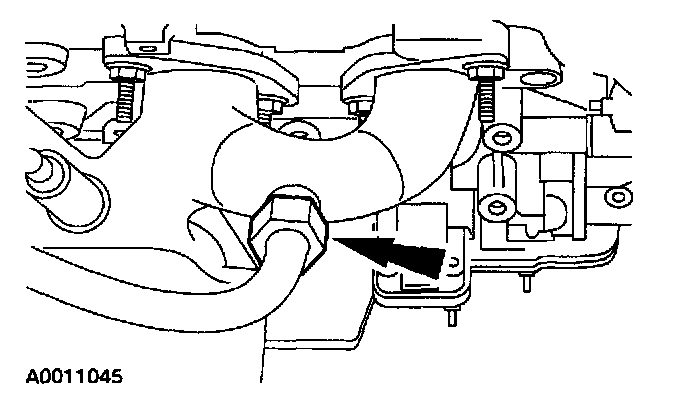

3. Disconnect the Exhaust Gas Recirculation (EGR) tube from the exhaust manifold.
4. Raise and support the vehicle.





5. Remove the RH manifold to Y-pipe nuts.





6. Remove the engine support insulator nut.
7. Lower the vehicle.

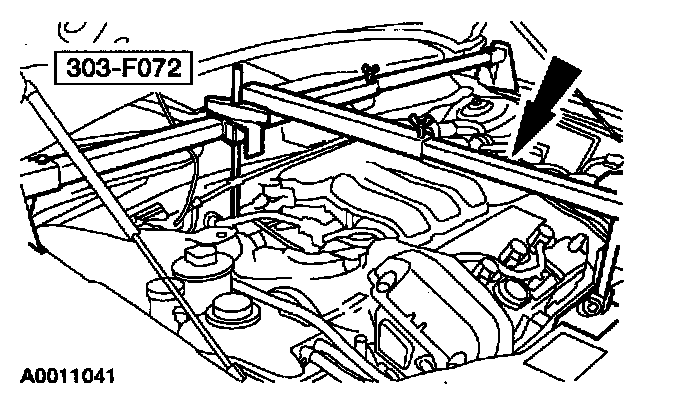

8. Using the special tool, raise the engine until the exhaust manifold can be removed.

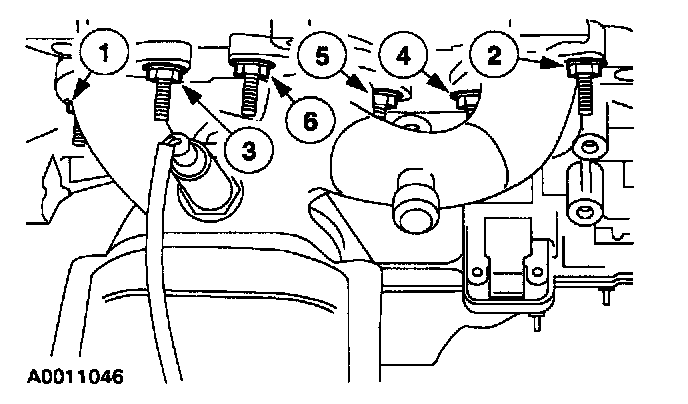

9. Remove the nuts in the sequence shown and remove the exhaust manifold.
- Discard the gasket.

Installation

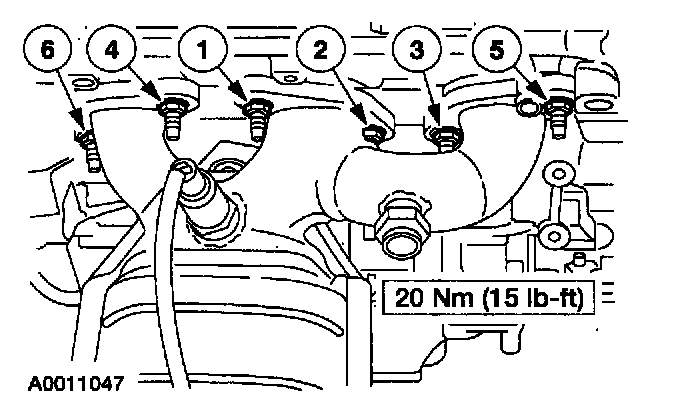

1. Position a new gasket and install the exhaust manifold nuts in the sequence shown.





2. Using the special tool, lower the engine.
3. Raise the vehicle.

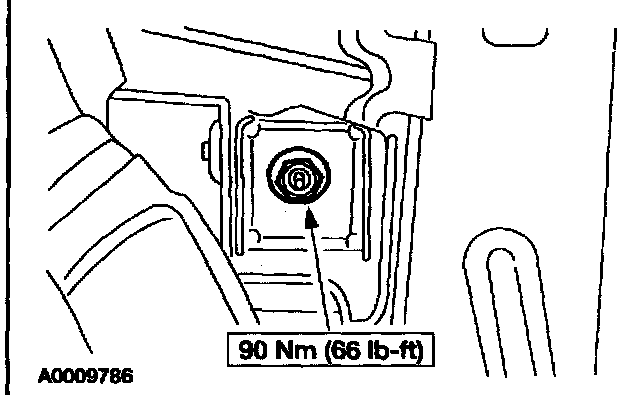

4. Install the engine support insulator nut.

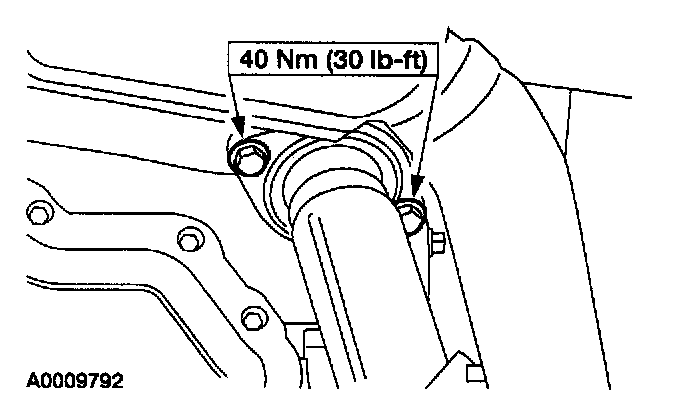

5. Install the RH exhaust manifold to pipe bolts.
6. Lower the vehicle.
7. Remove the special tools.
8. Install the RH valve cover.
9. Install the cowl panel grille.
