Valve Guide Seal: Service and Repair

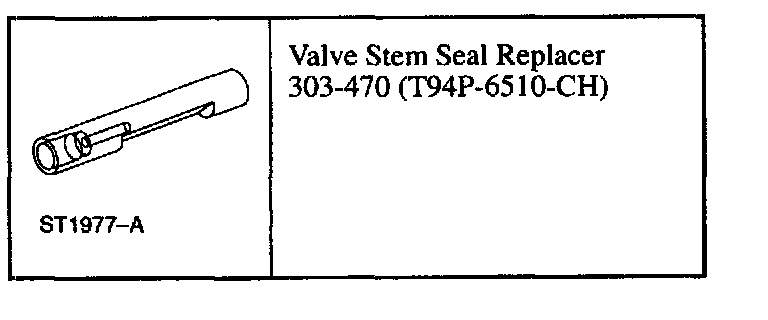

Special Tools:

Removal
1. Remove the valve spring.

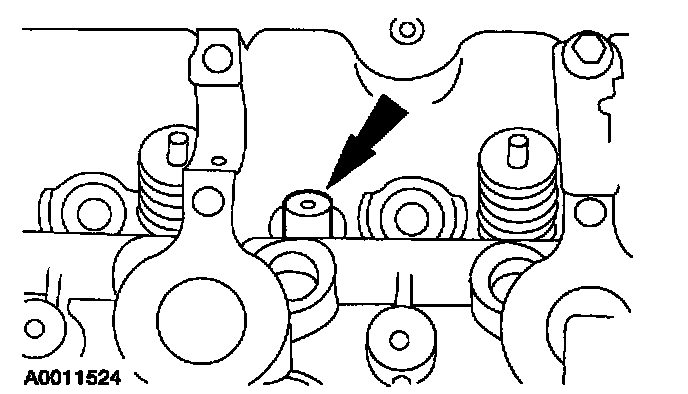

2. Note: Camshaft removed for clarity.

Remove the valve seal.

Installation

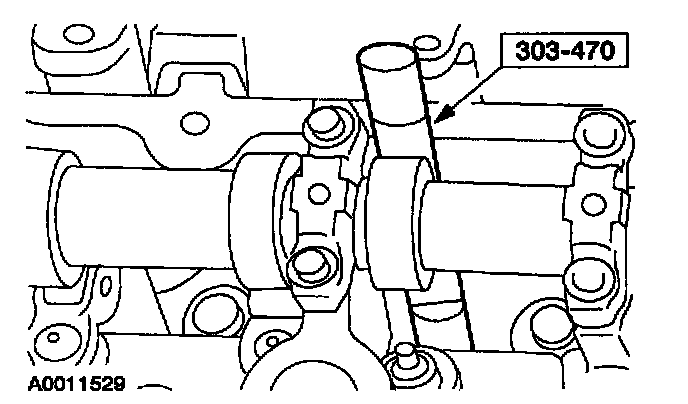

1. Using the special tool, install the valve seal.
2. Install the valve. spring.
