Rear Crankshaft Main Bearing Seal: Service and Repair

Special Tools:

Removal
1. Remove the flexplate.

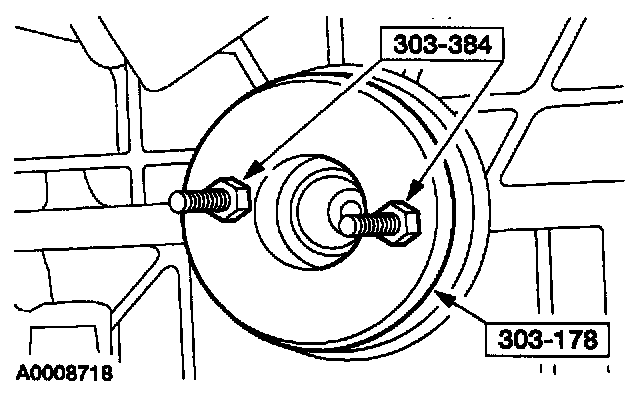

2. Using the special tools, remove the crankshaft rear oil seal.

Installation

1. Note: Lubricate the crankshaft rear oil lips with Super Premium SAE 5W-30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specifications WSS-M2C153-G.

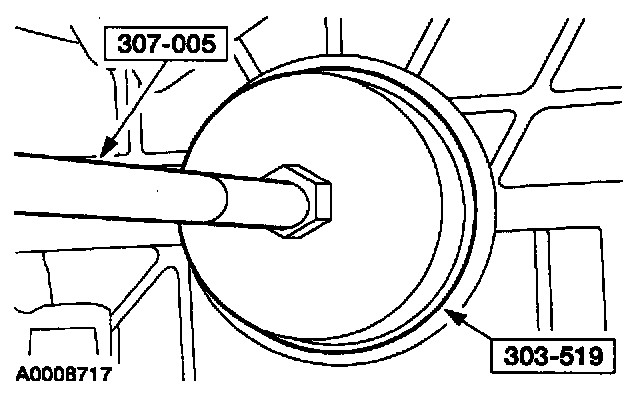

Using the special tools, install the crankshaft rear oil seal.
2. Install the flexplate.
