Front Crankshaft Seal: Service and Repair

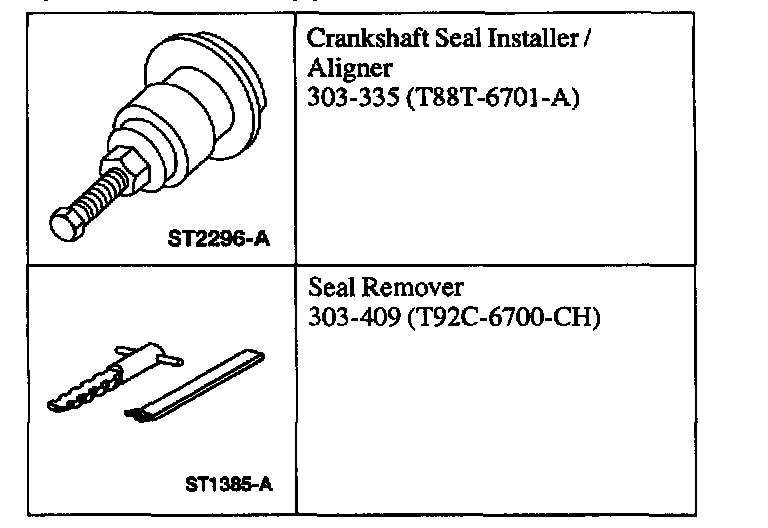

Special Tools:

Removal
1. Remove the crankshaft vibration damper.

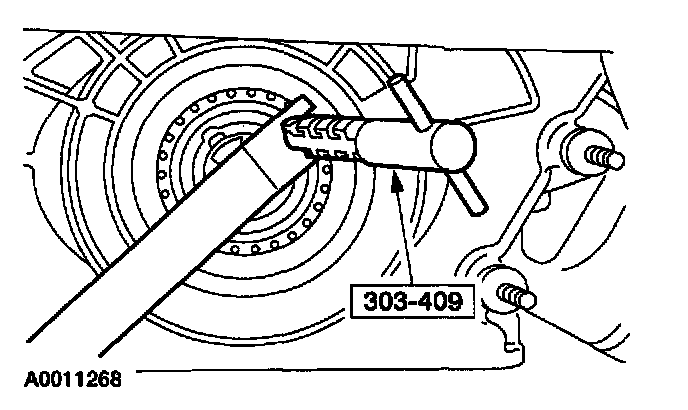

2. Using the special tool, remove the crankshaft front oil seal.

Installation

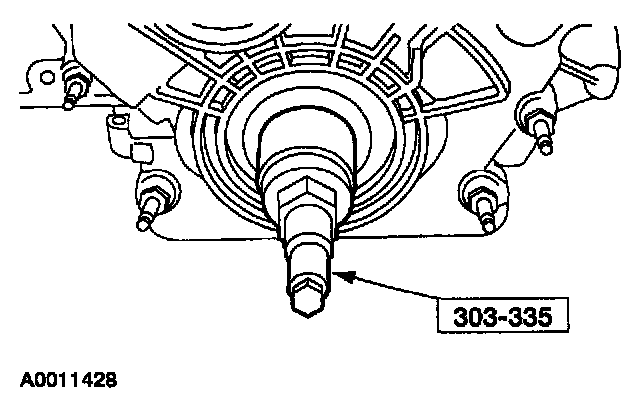

1. Using the special tool, install the crankshaft front oil seal.
2. Install the crankshaft vibration damper.
