Oil Pick Up/Strainer: Service and Repair

Removal
1. Remove the oil pan.

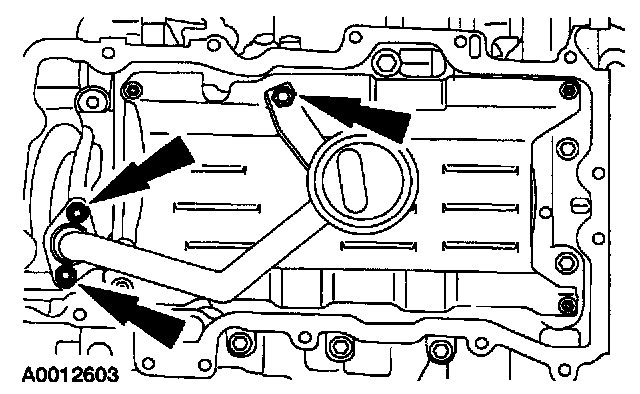

2. Remove the nut, bolts and the oil pump screen and pick-up tube.





3. Remove and inspect the O-ring seal.

Installation





1. Install the O-ring seal.





2. Install the oil pump screen cover and tube.

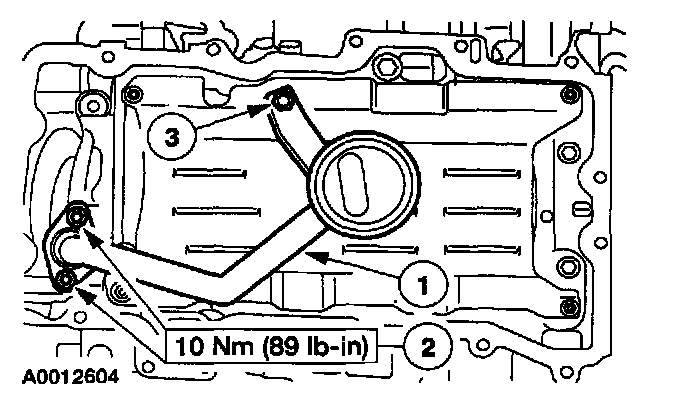

1. Position the oil pump screen and pick up tube.
2. Install the bolts.
3. Install the nut.
- Tighten the nut in two stages.
- Stage 1: Tighten to 5 Nm (44 inch lbs.).
- Stage 2: Tighten 45 degrees.
3. Install the oil pan.
