Oil Pan Baffle

Removal
1. Remove the oil pump screen cover and tube.

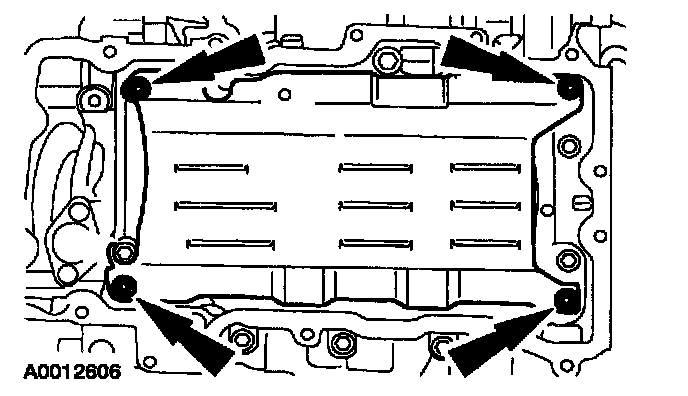

2. Remove the nuts and the oil pan baffle.

Installation

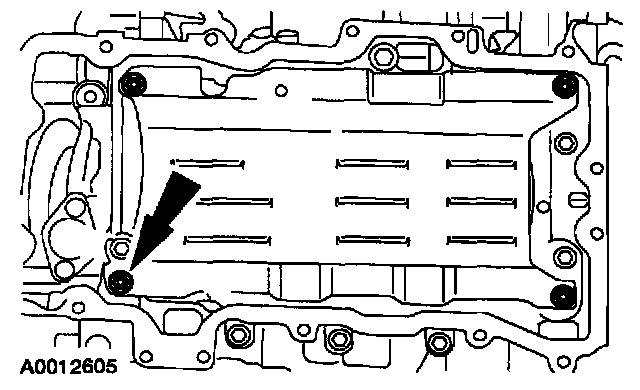

1. Position the oil pan baffle and install the nuts.
- Tighten the nuts in two stages.
- Stage 1: Tighten to 5 Nm (44 inch lbs.).
- Stage 2: Tighten 45 degrees.
2. Install the oil pump screen cover and tube.
