Valve Spring: Service and Repair

Special Tools:

Removal and Installation
1. Remove the hydraulic lash adjusters.
2. Pressurize the cylinder using compressed air.

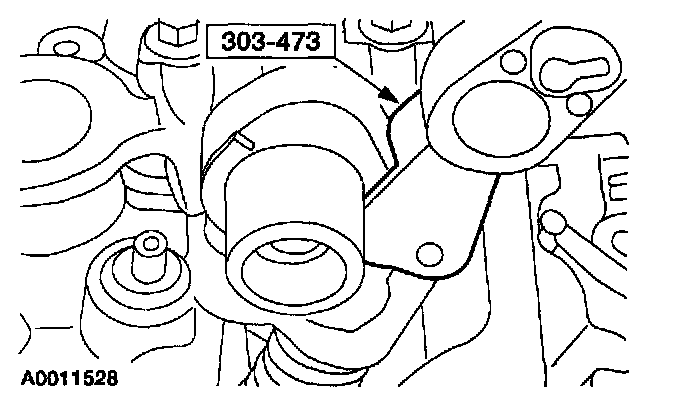

3. Using the special tool, remove the key, retainer, and valve spring.
4. To install, reverse the removal procedure.
