Pulley, Crankshaft

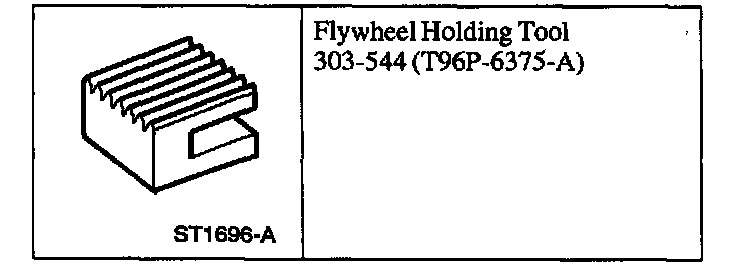

Special Tools:

Removal and Installation
1. Remove the drive belt.
2. Raise and support the vehicle.
3. Remove the RH front wheel.

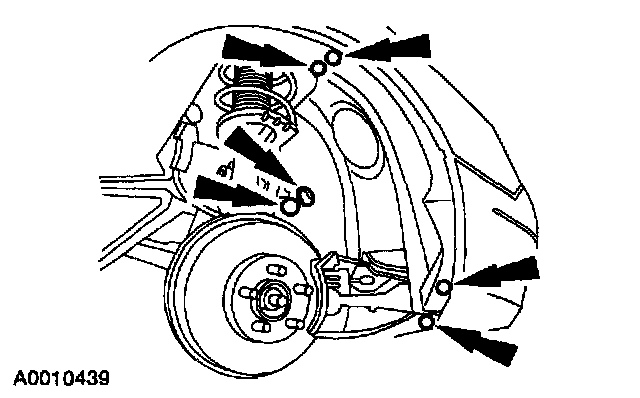

4. Remove the RH front inner fender splash shield.
- Remove the screws and the pin-type retainers.

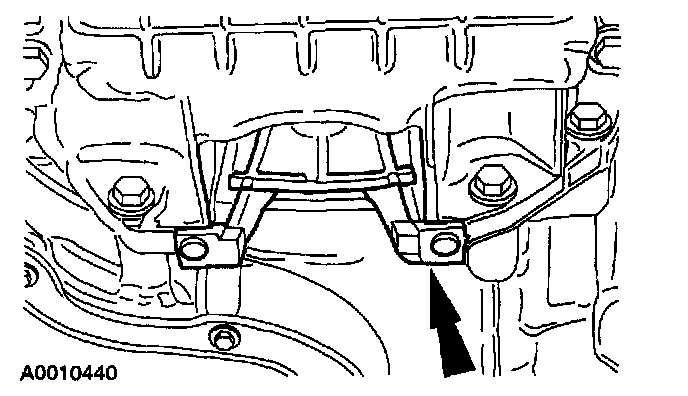

5. Remove the torque converter inspection cover.





6. Install the flywheel holding tool.

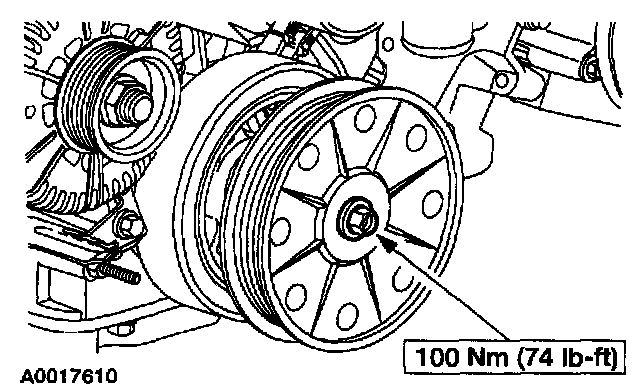

7. Note: The pulley has a reverse thread.

Remove the crankshaft pulley.
8. To install, reverse the removal procedure.
