Home >> Mercury >> 2000 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Passive Anti-Theft System (PATS) >> Test C: PATS Received Incorrect Key Code From Ignition Transponder

Test C: PATS Received Incorrect Key Code From Ignition Transponder

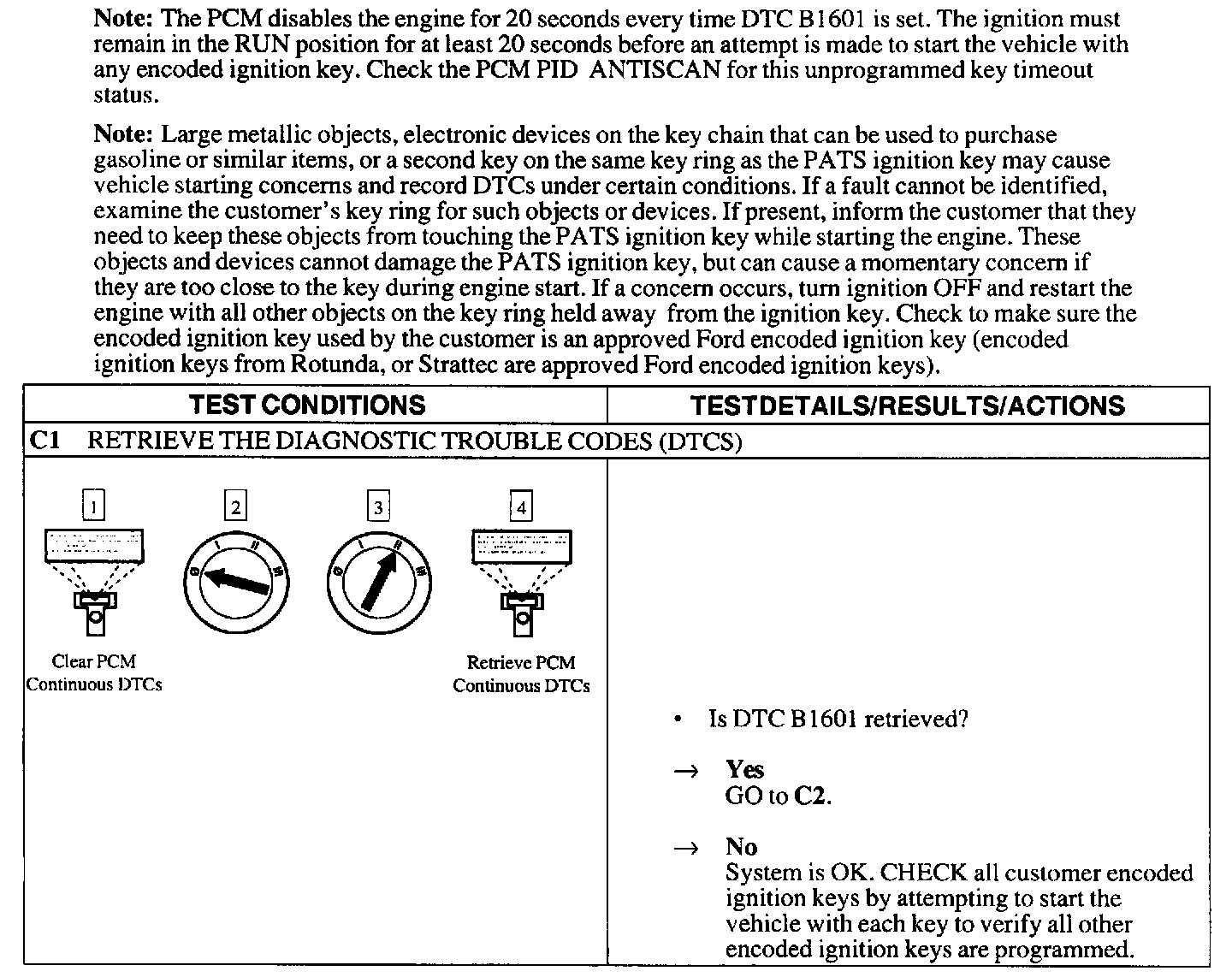

C1:






C2 - C3:

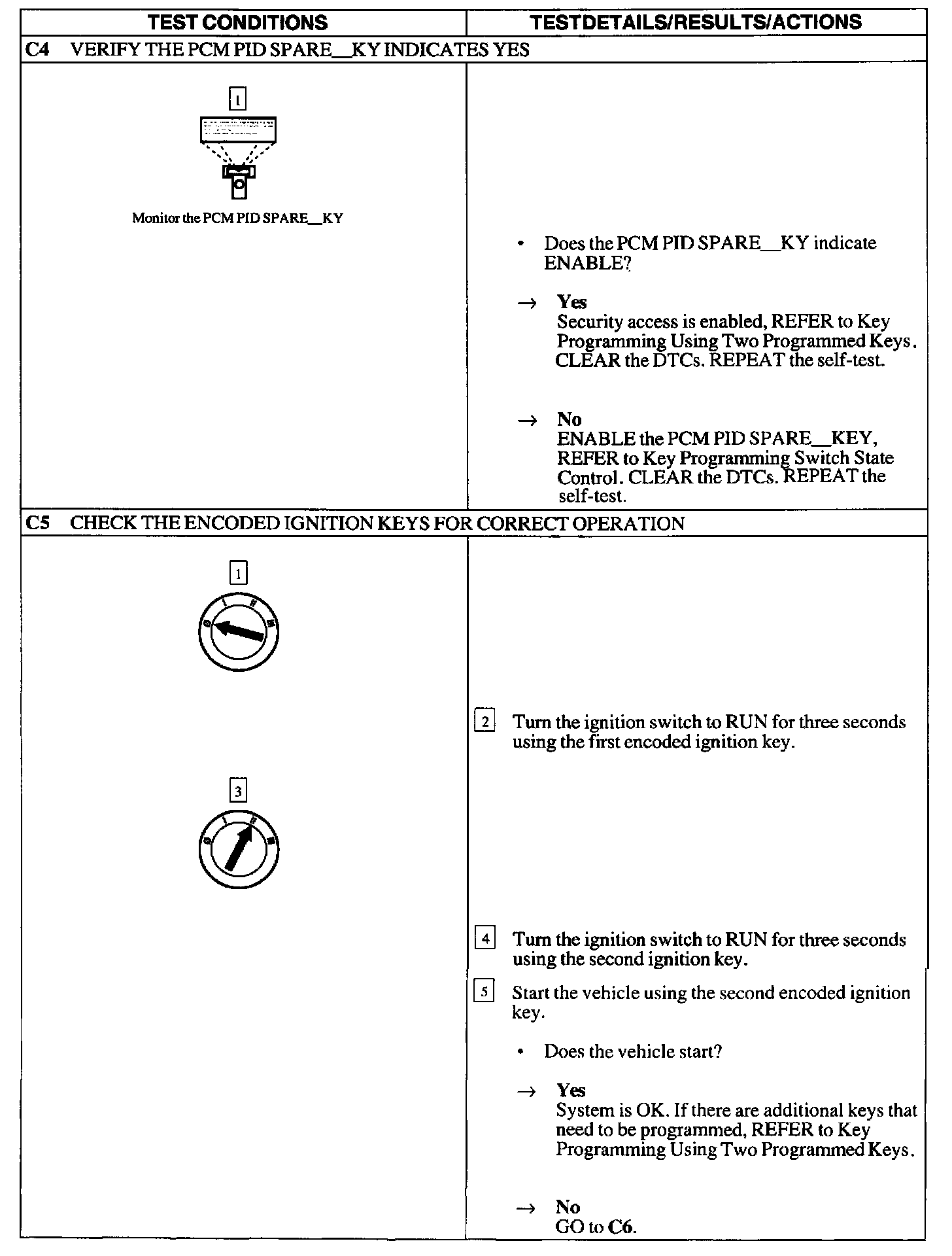

C4 - C5:

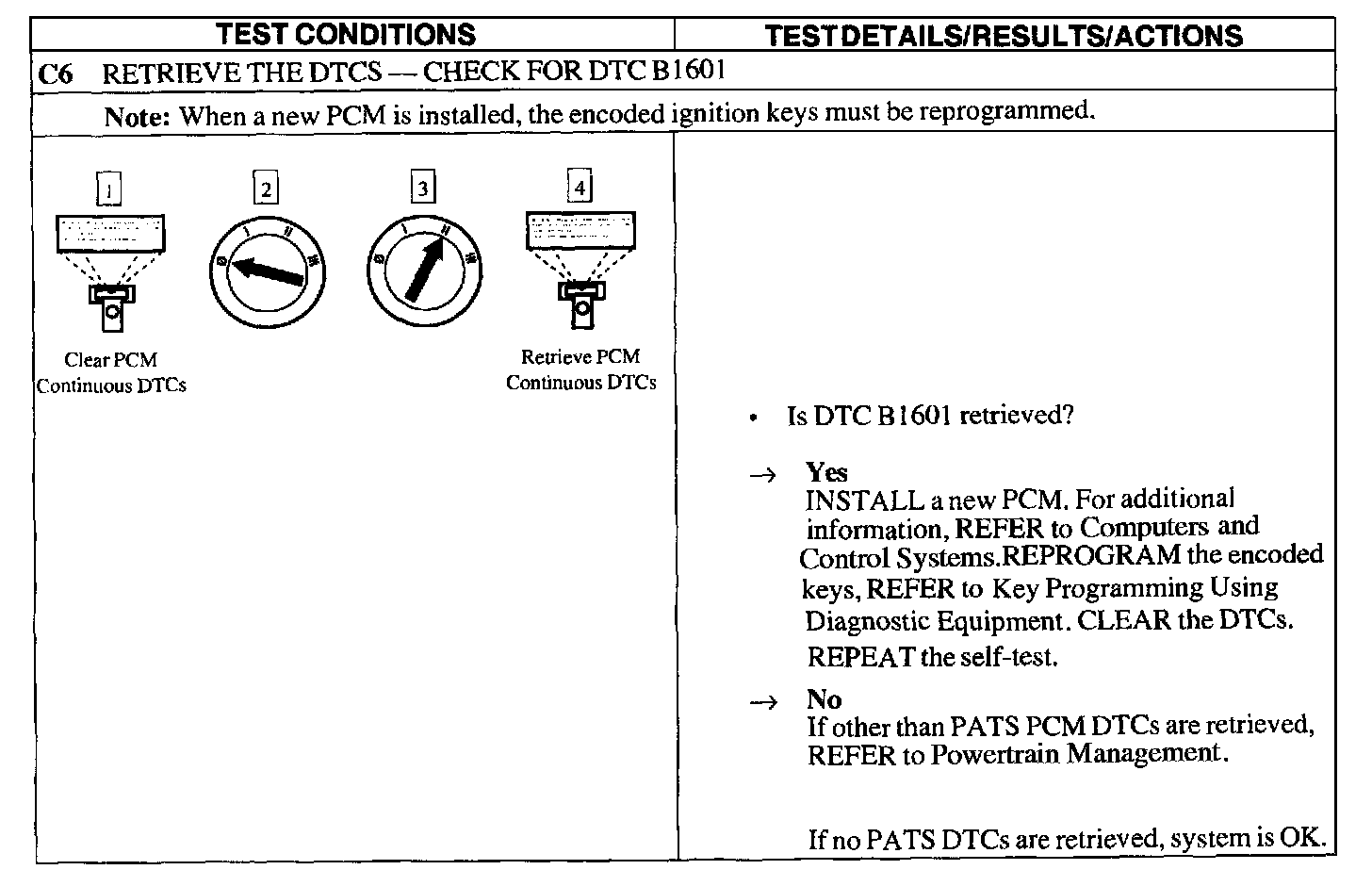

C6:
