Home >> Mercury >> 2000 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test E: Intermittent Wiper Speed Does Not Operate Properly

Test E: Intermittent Wiper Speed Does Not Operate Properly

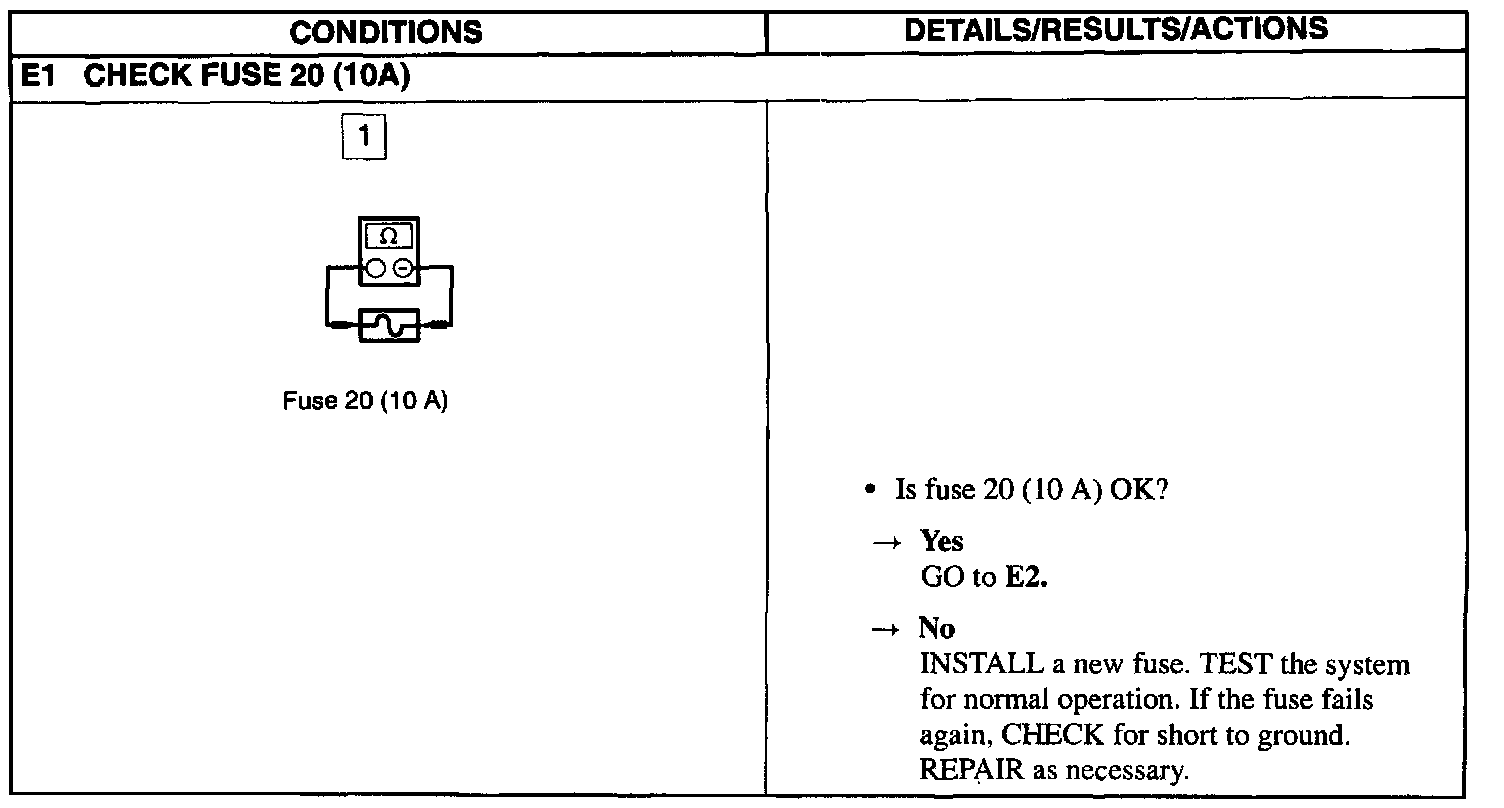

E1:






E2 - E3:

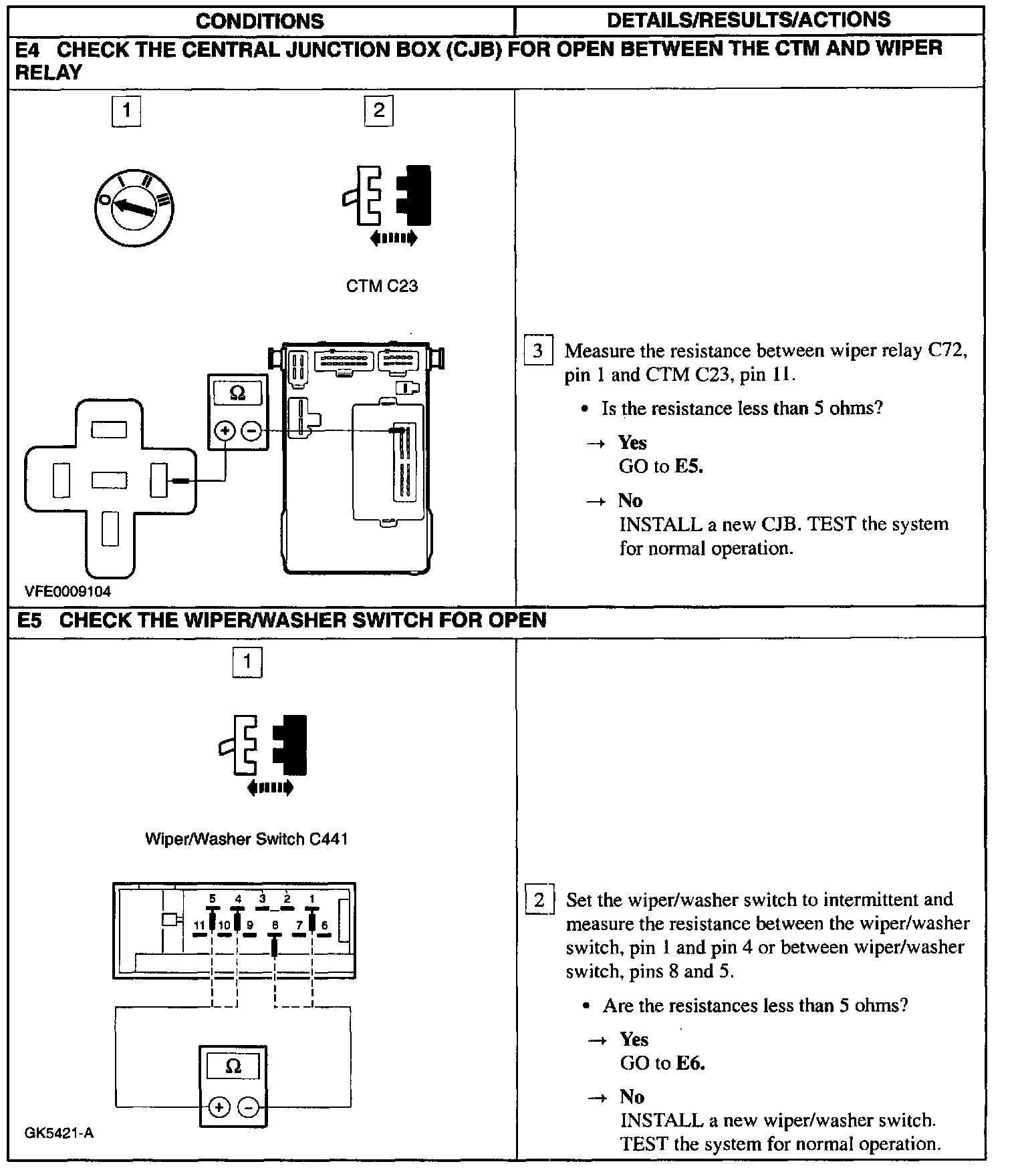

E4 - E5:

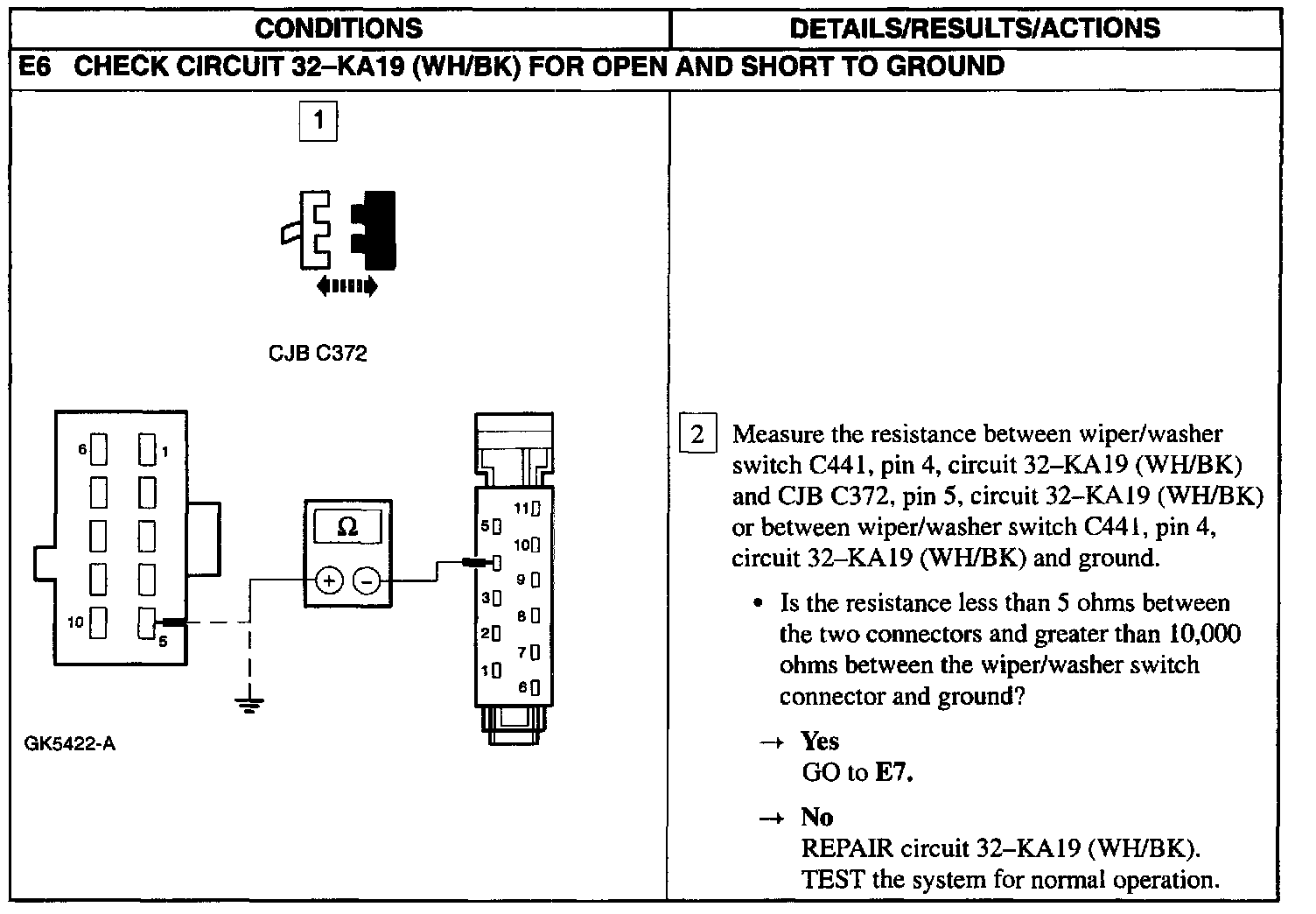

E6:

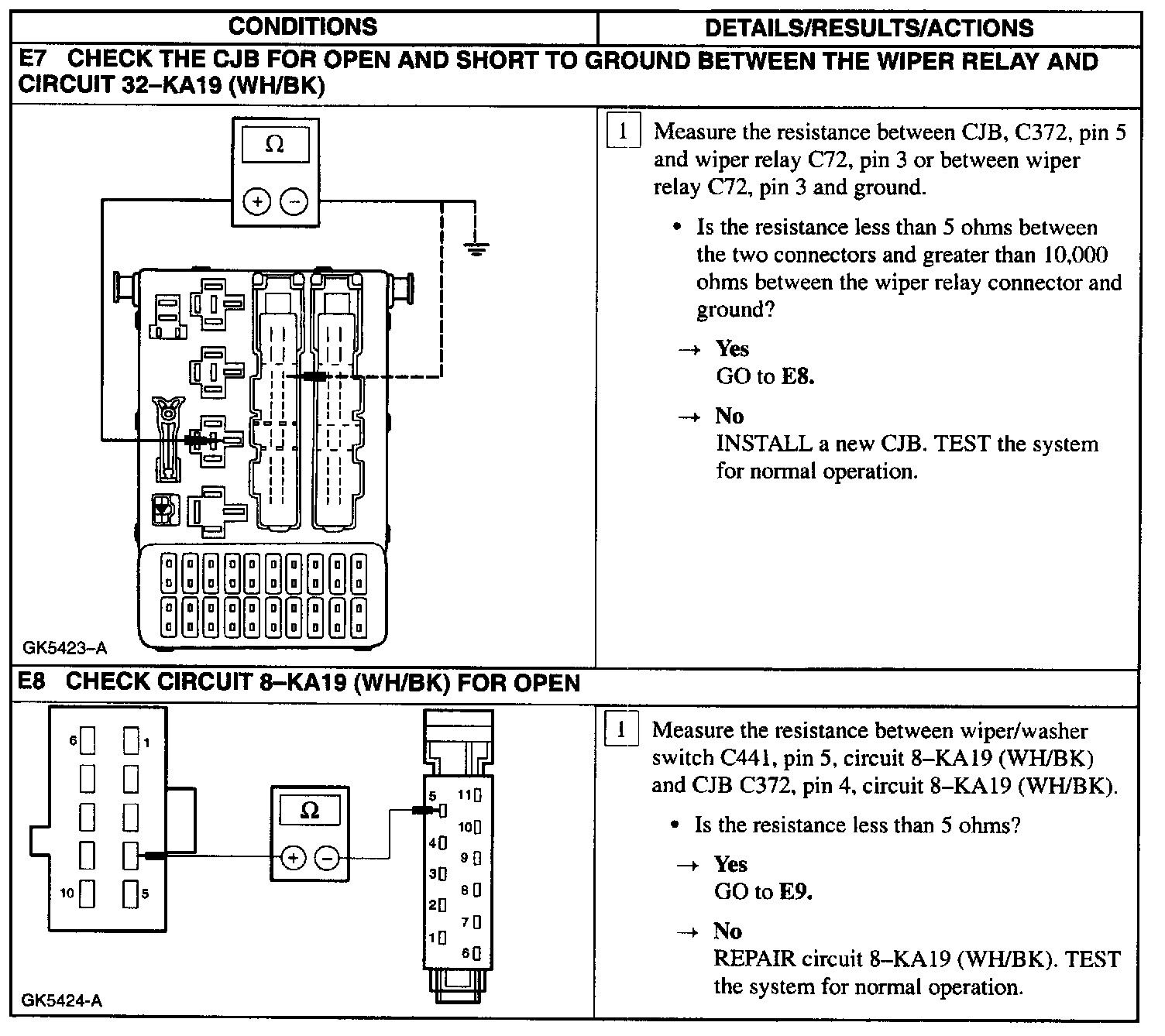

E7 - E8:






E9 - E10:






E11:
