Home >> Mercury >> 2000 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Windows and Glass >> Testing and Inspection >> Pinpoint Tests >> Test G: Defrost System Is Inoperative

Test G: Defrost System Is Inoperative

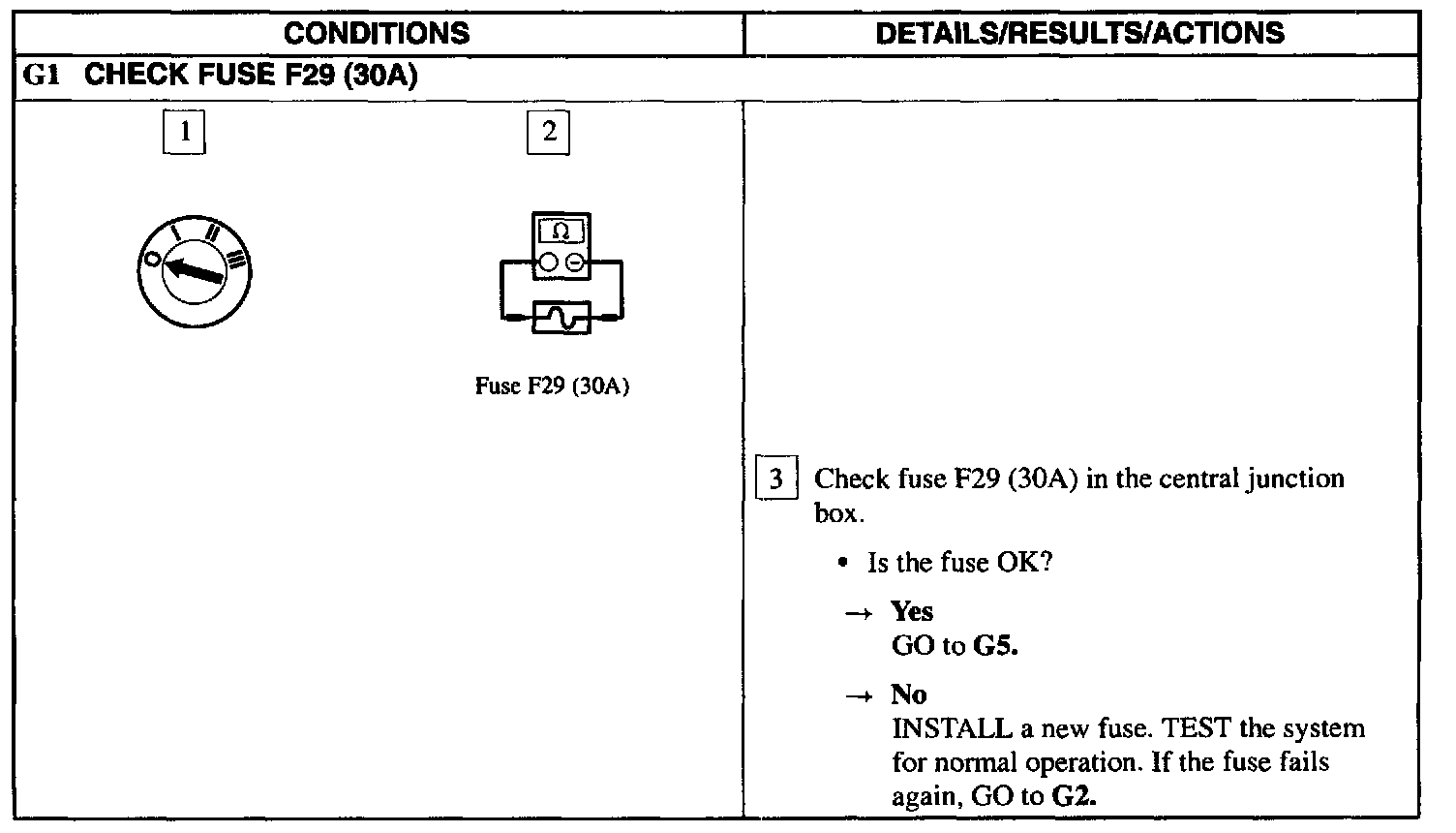

G1:

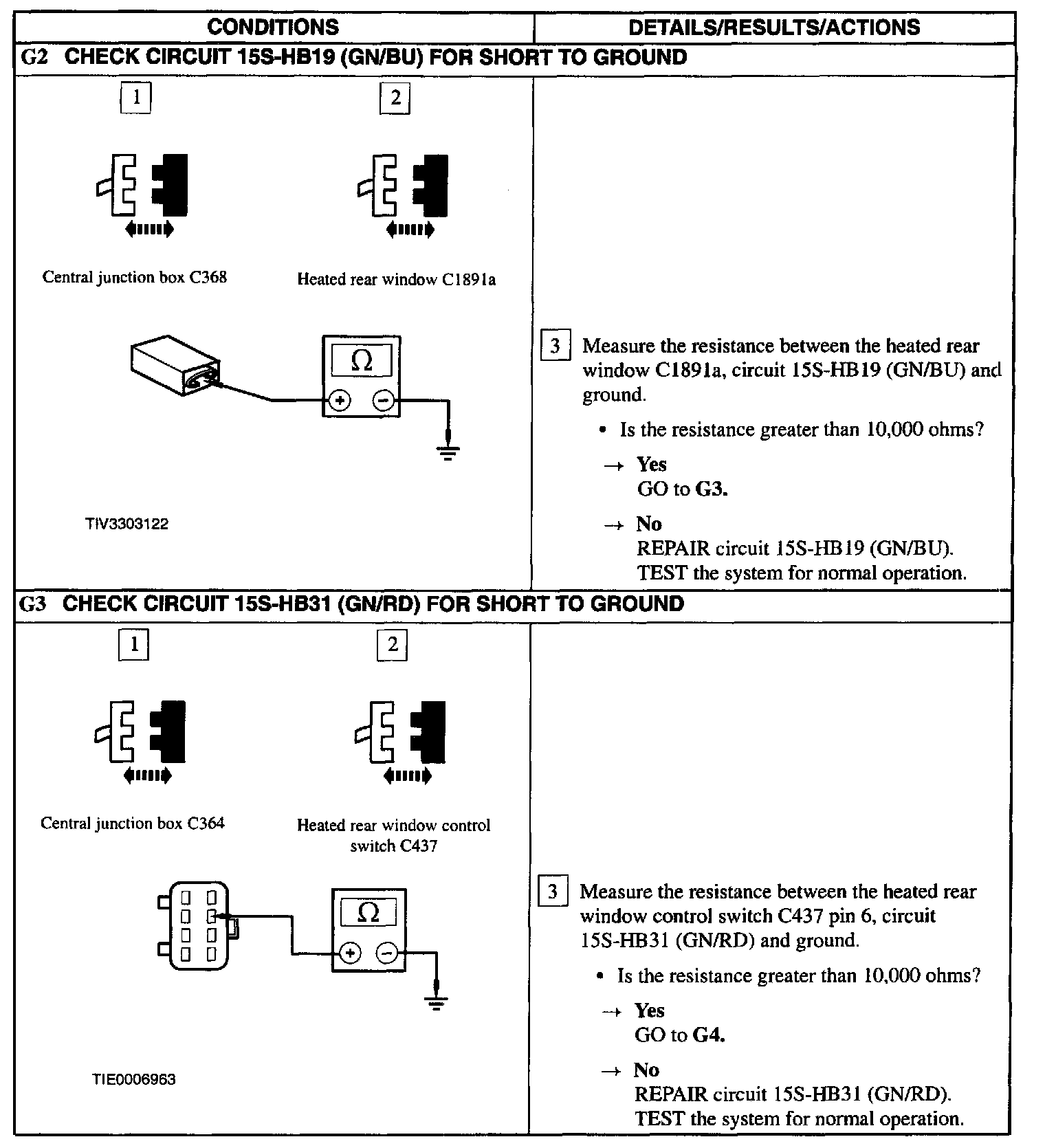

G2 - G3:

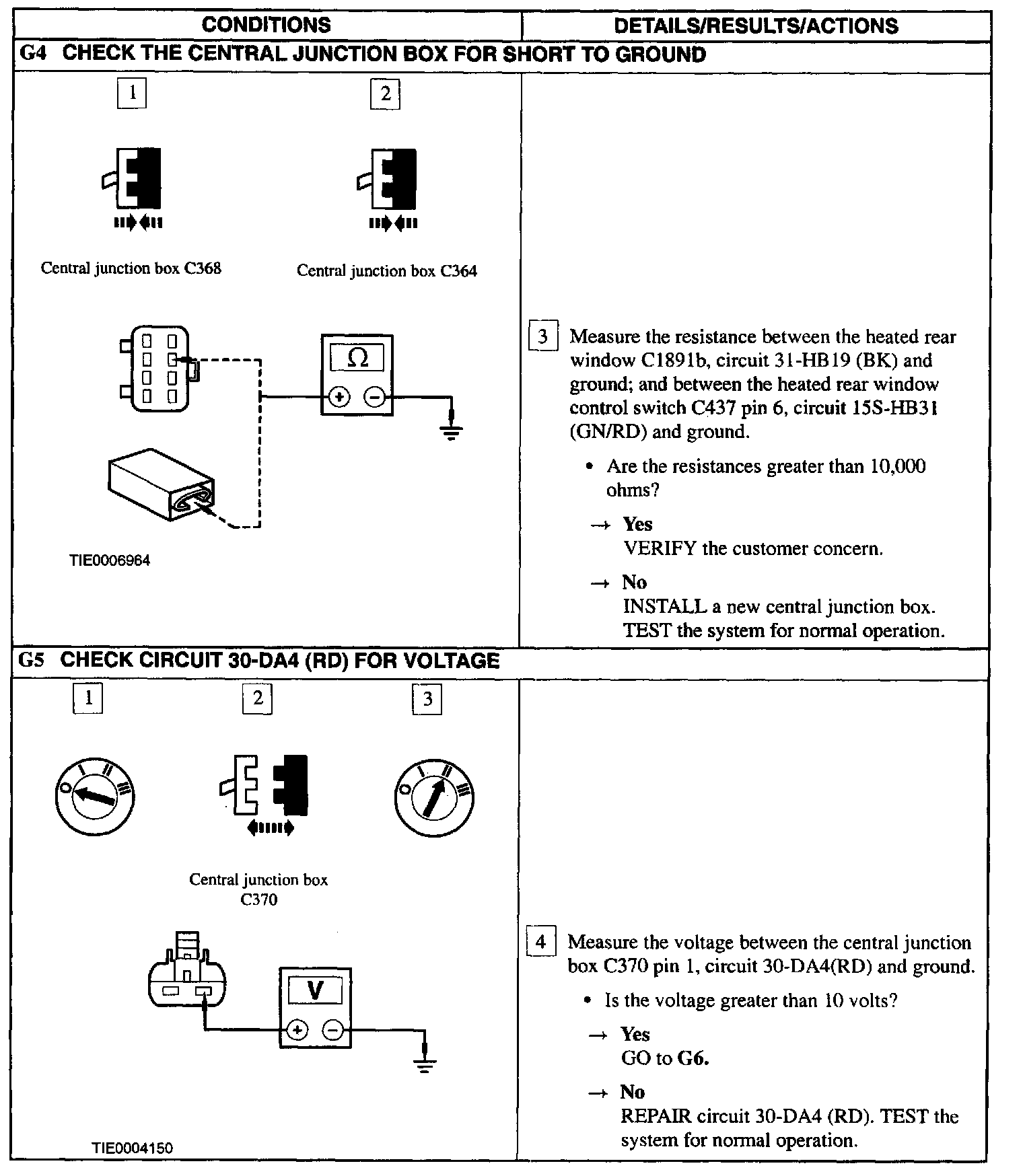

G4 - G5:

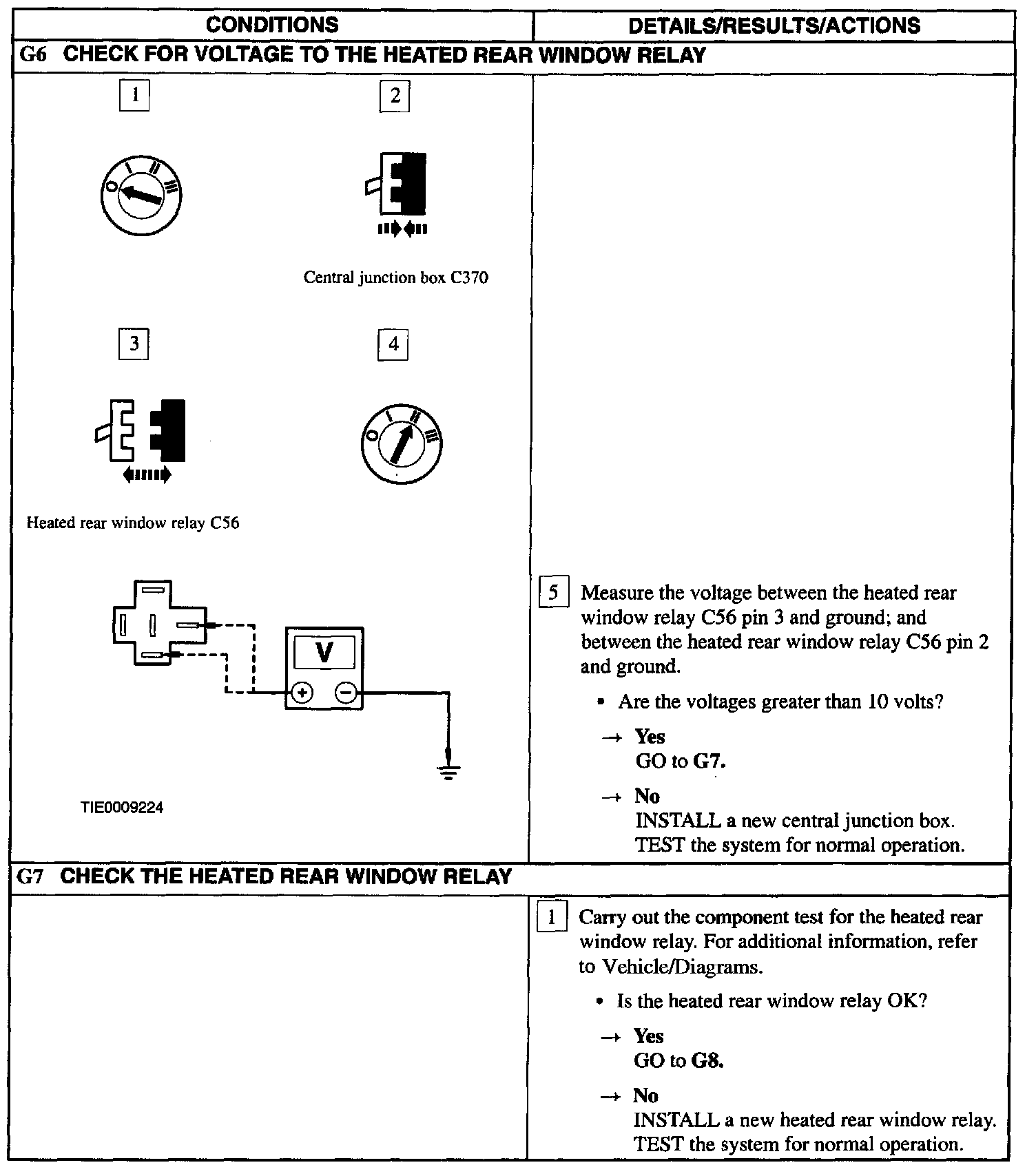

G6 - G7:

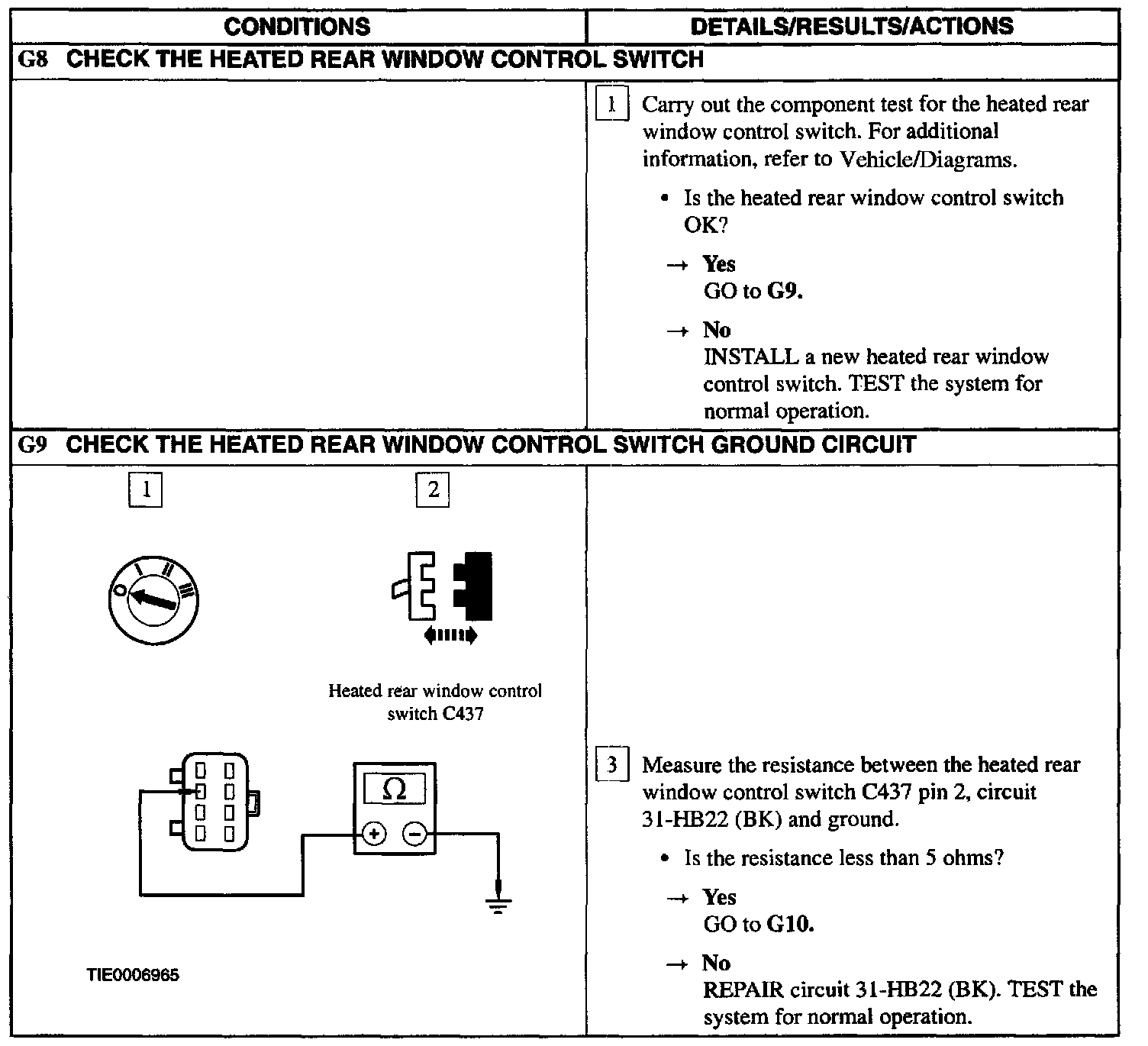

G8 - G9:

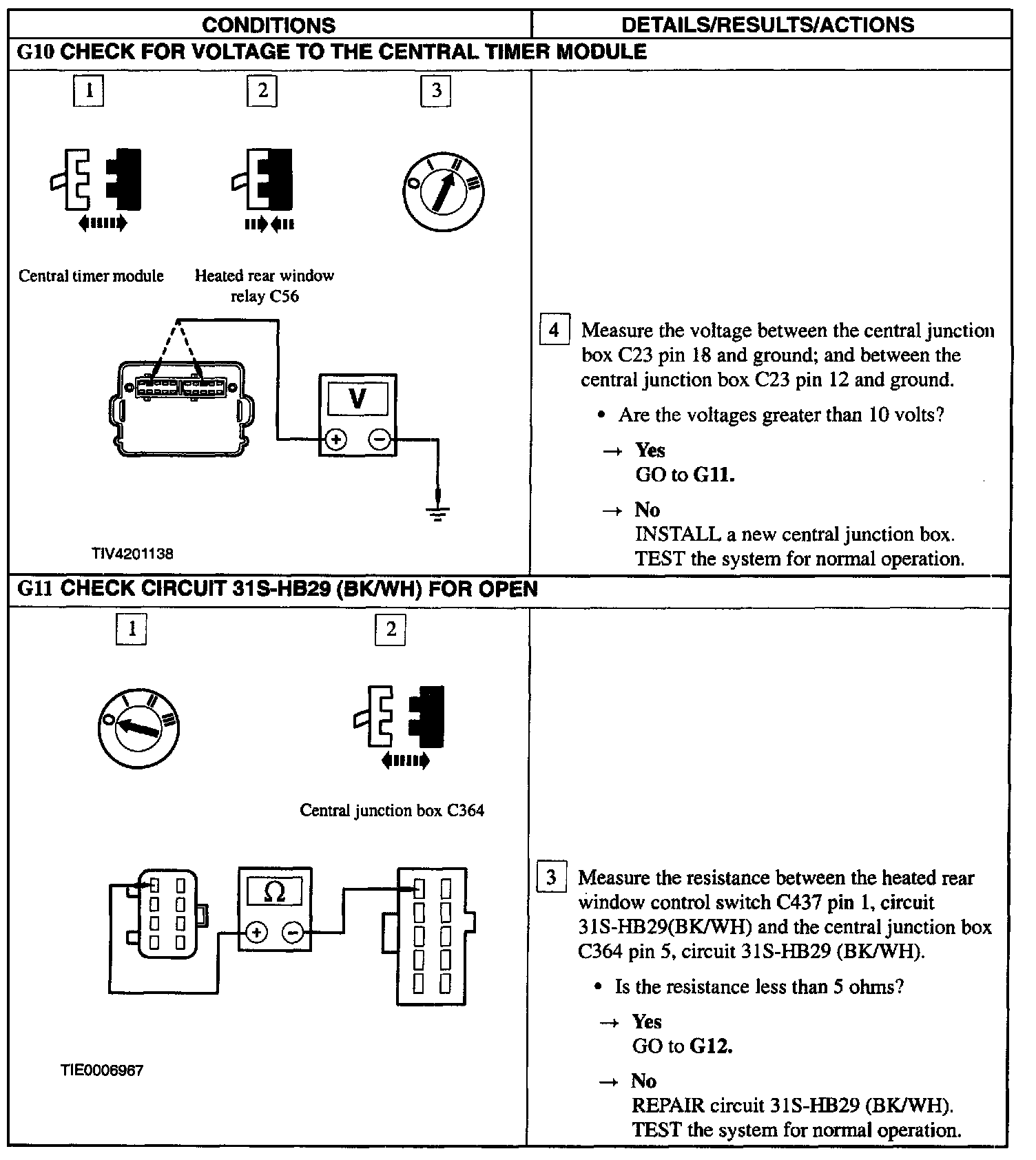

G10 - G11:

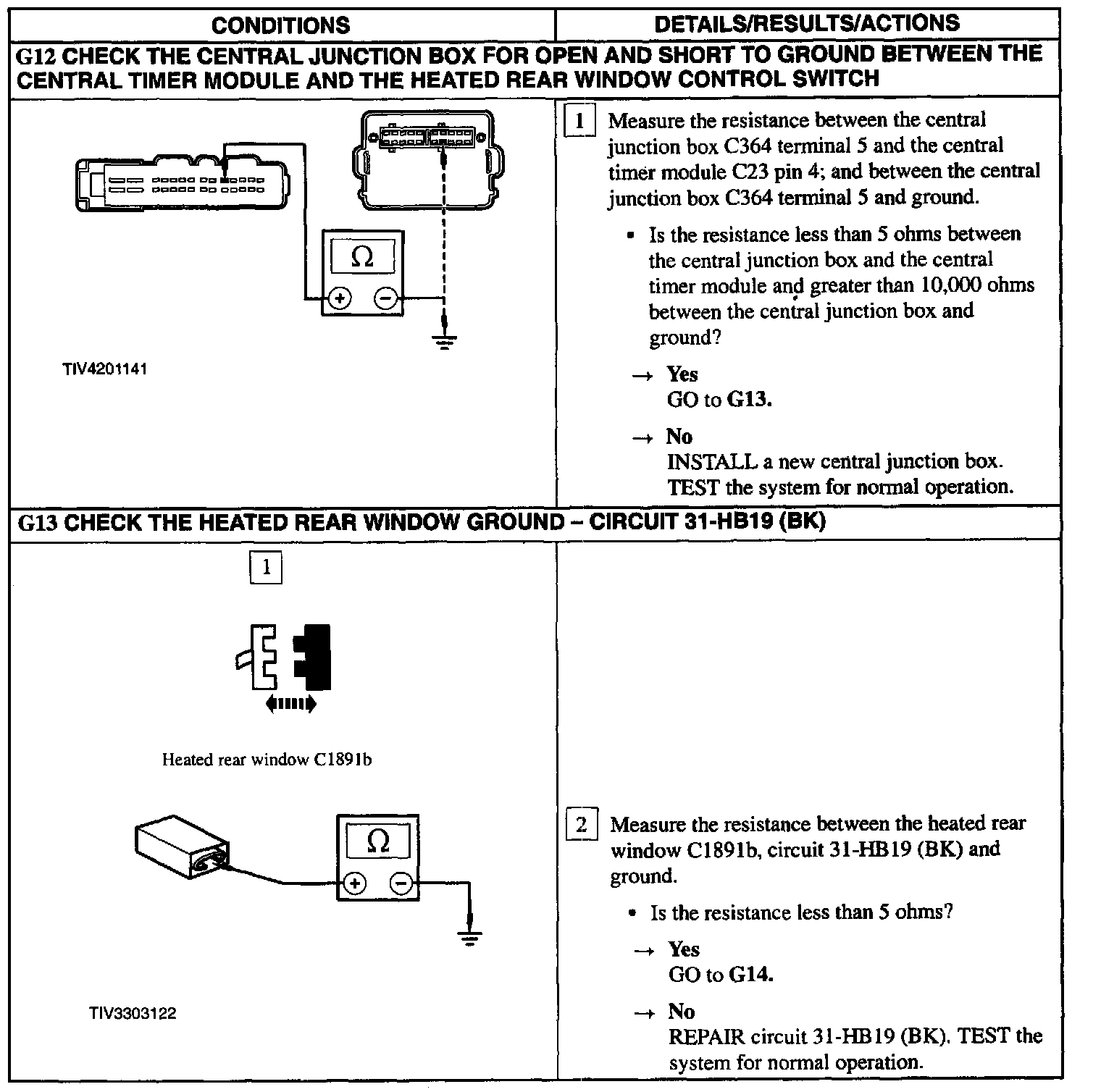

G12 - G13:

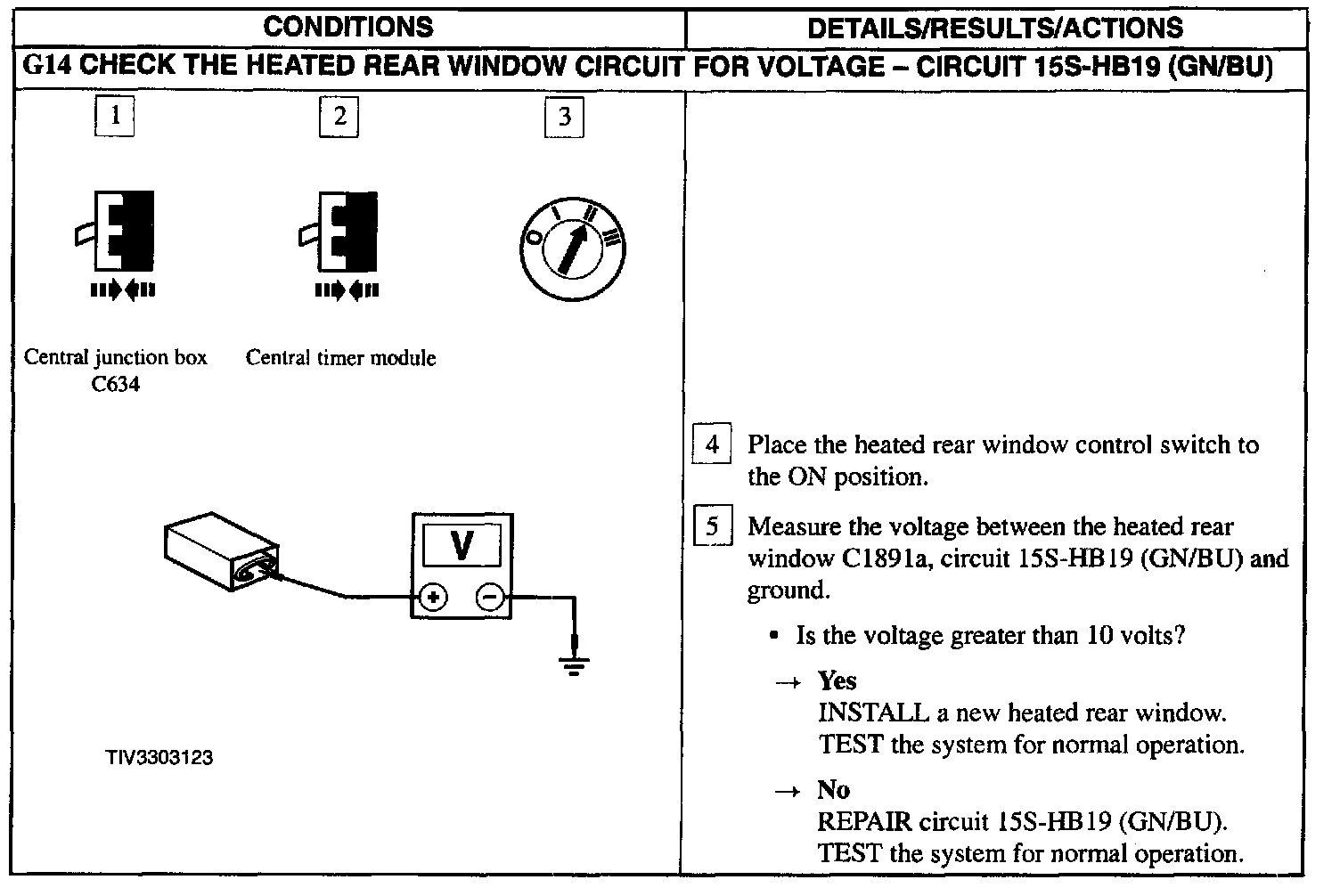

G14:
