Test B: Transmission Fluid Temperature (TFT) Sensor

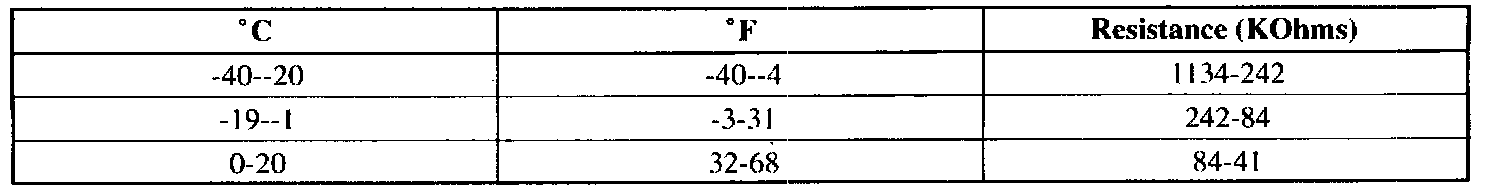

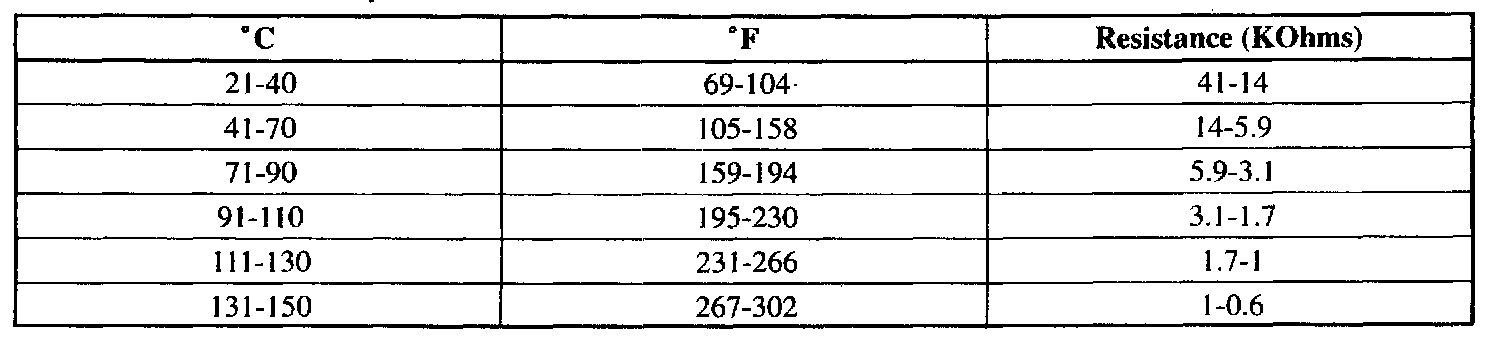

Transmission Fluid Temperature Chart

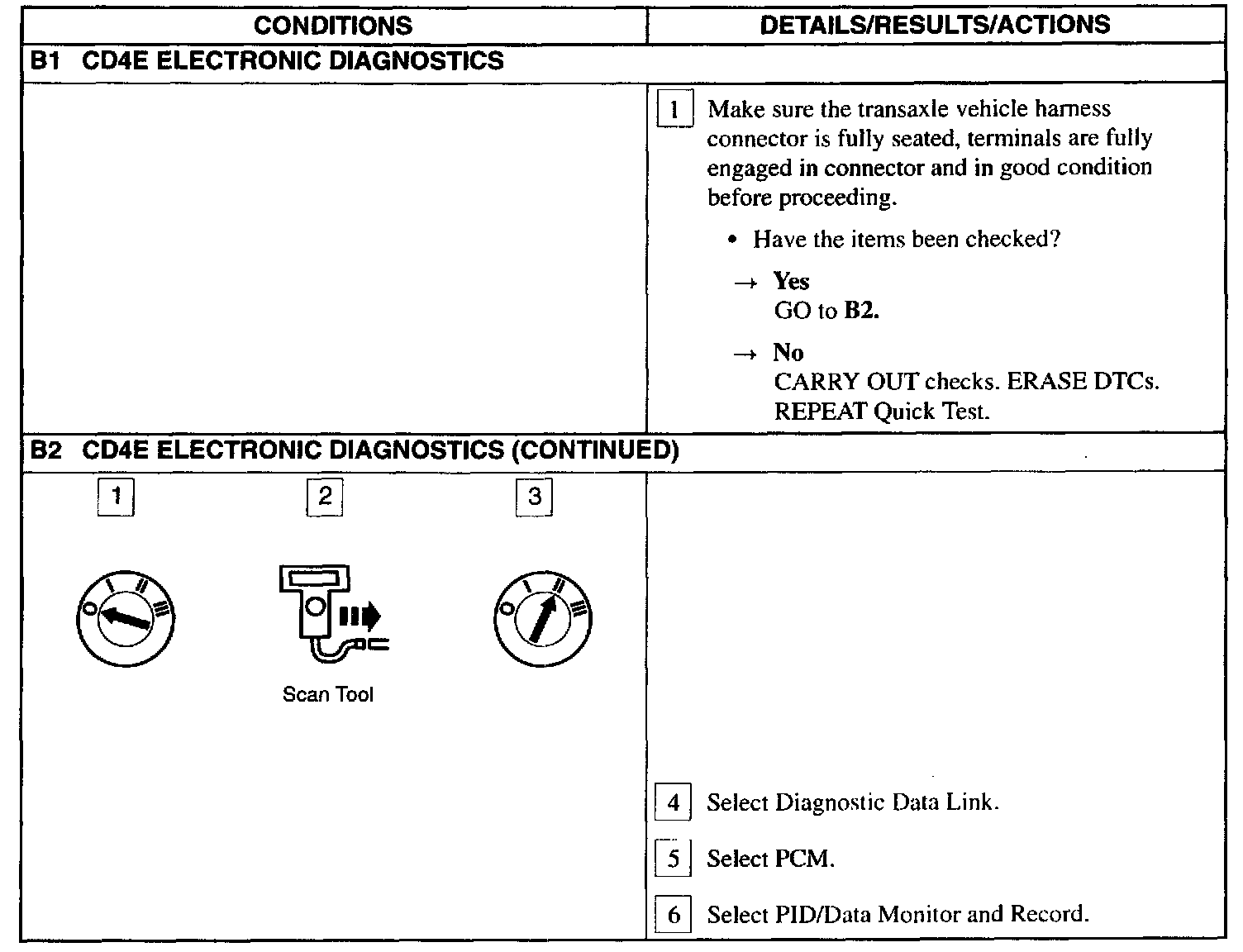

B1 - B2





B2 - B3

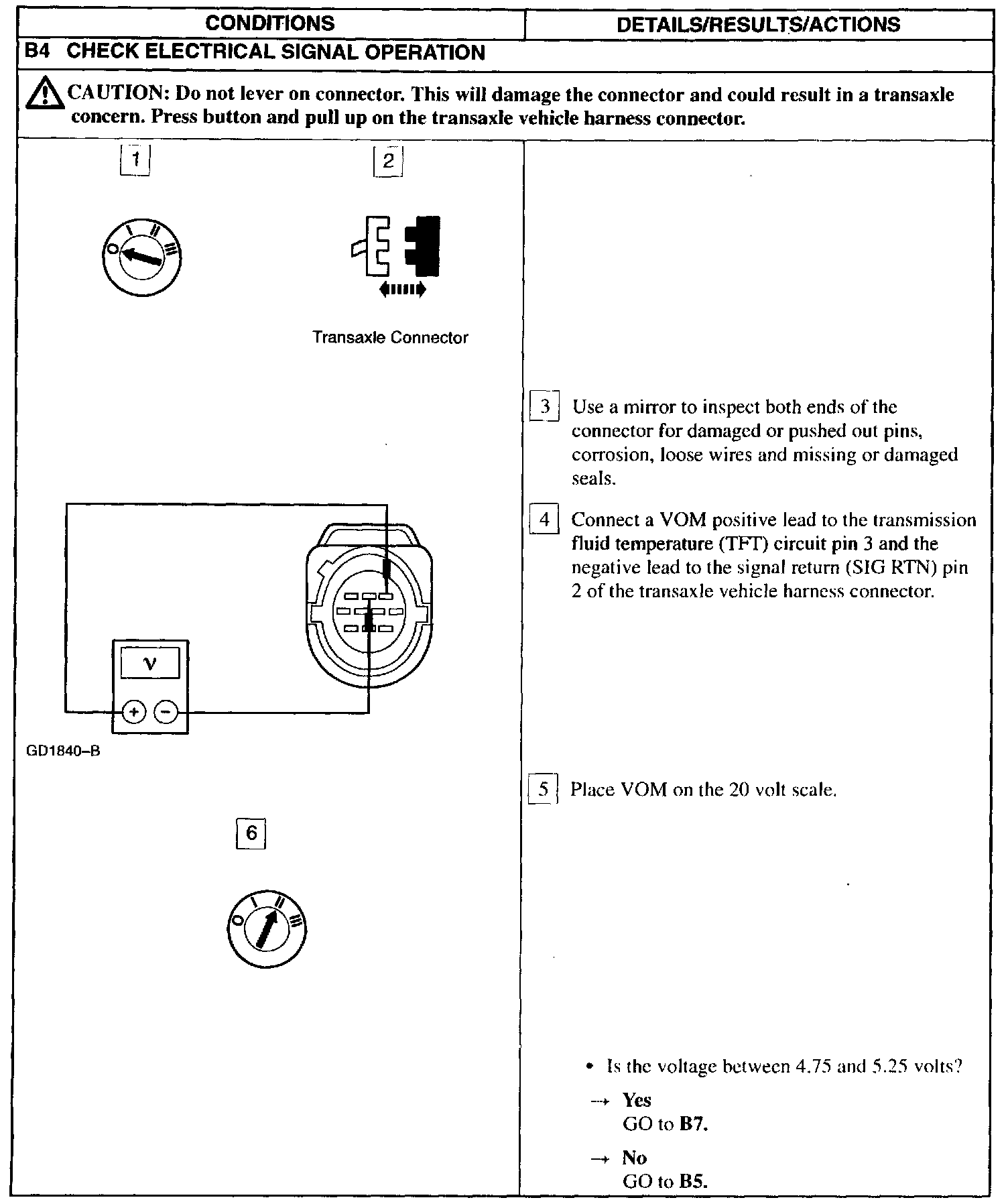

B4

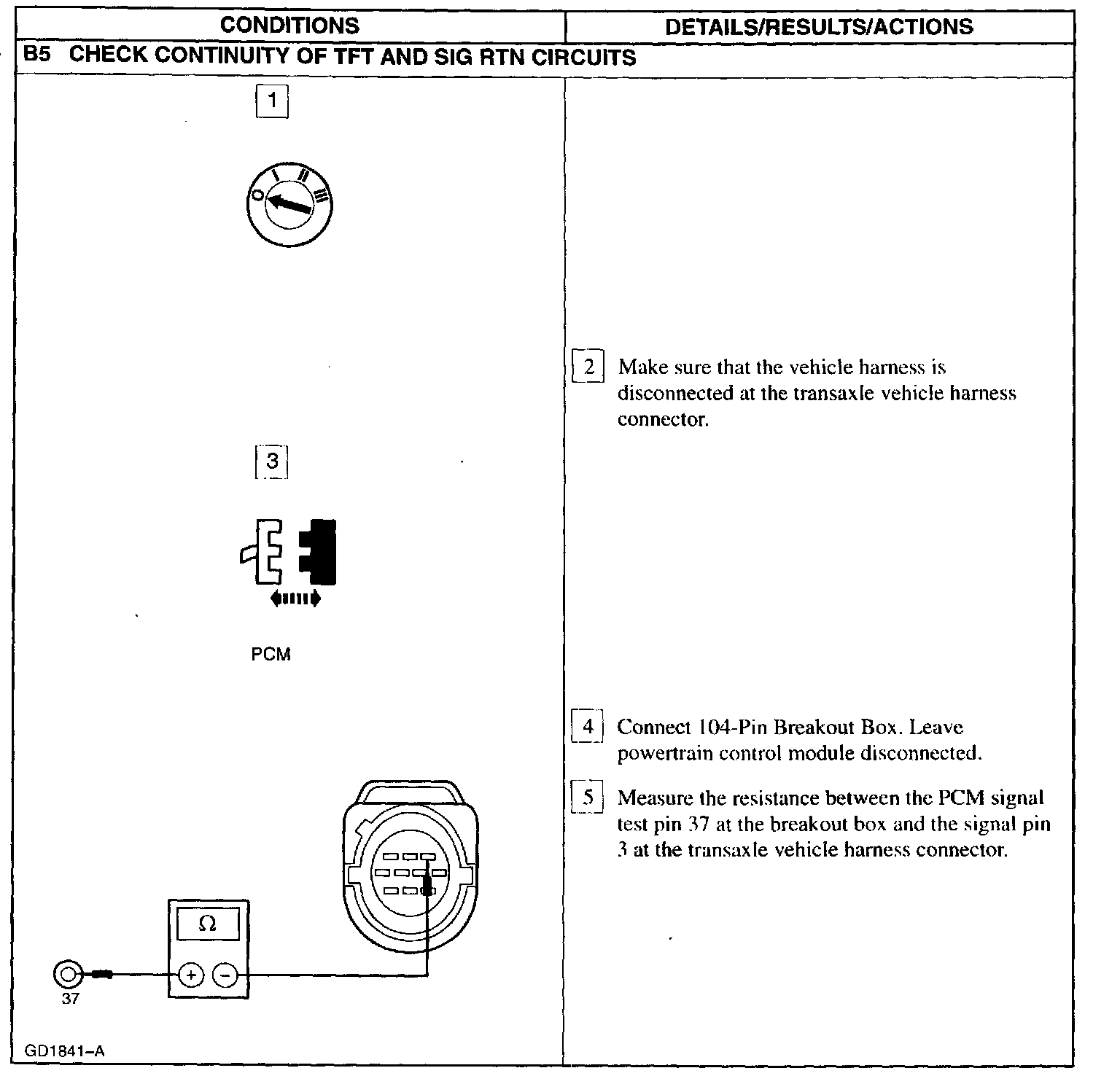

B5

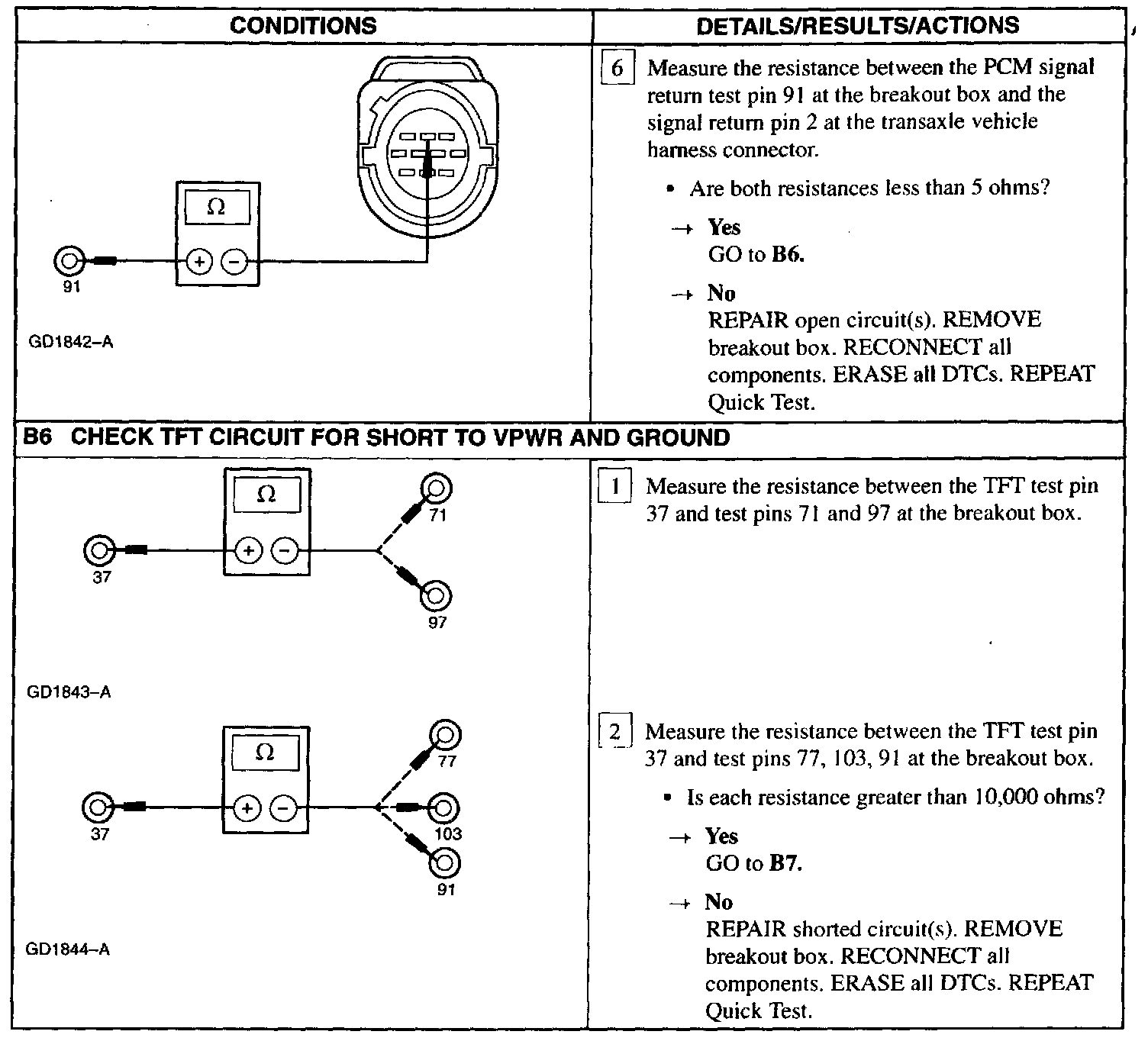

B5 - B6

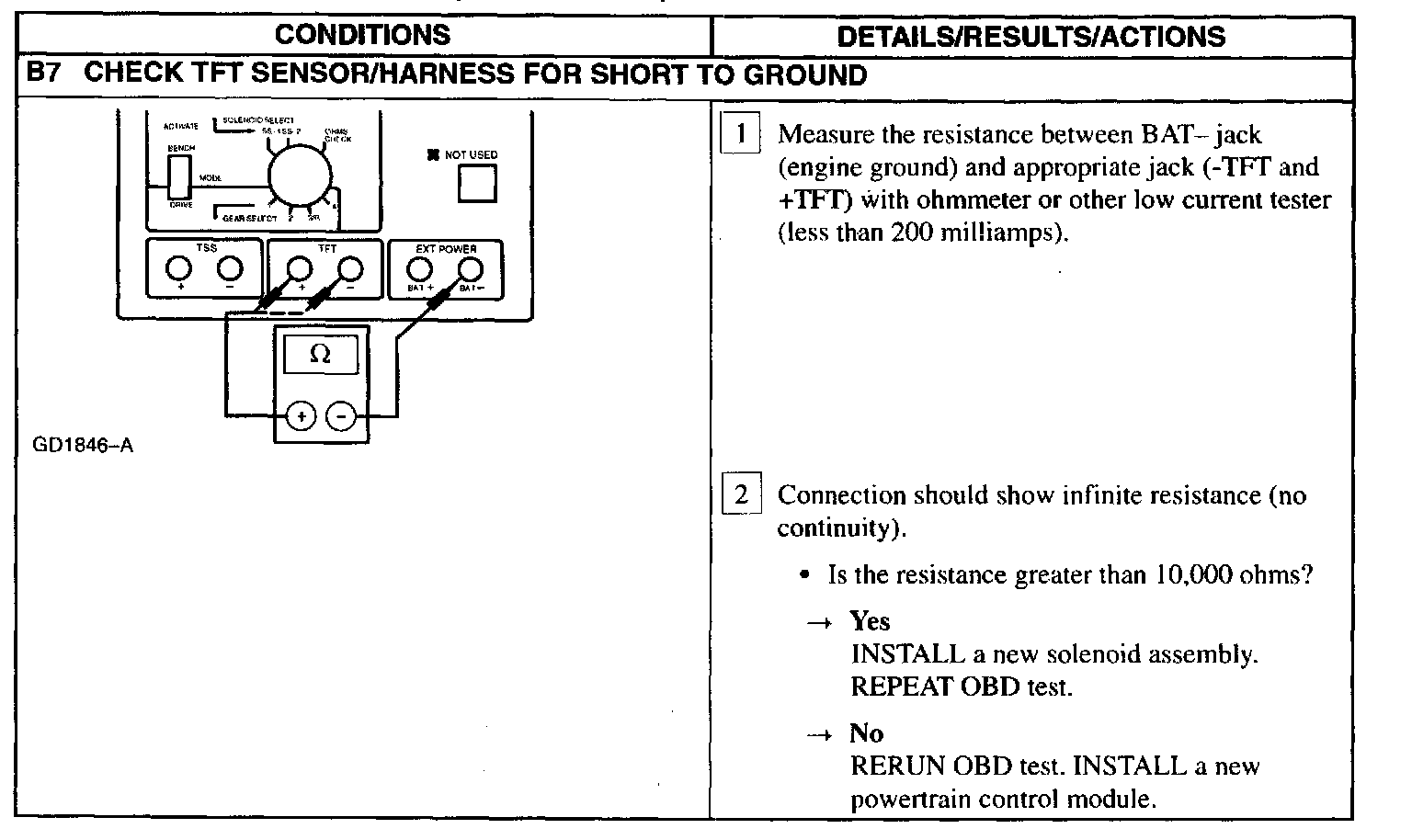

B7
