Steering: Description and Operation

Steering Linkage

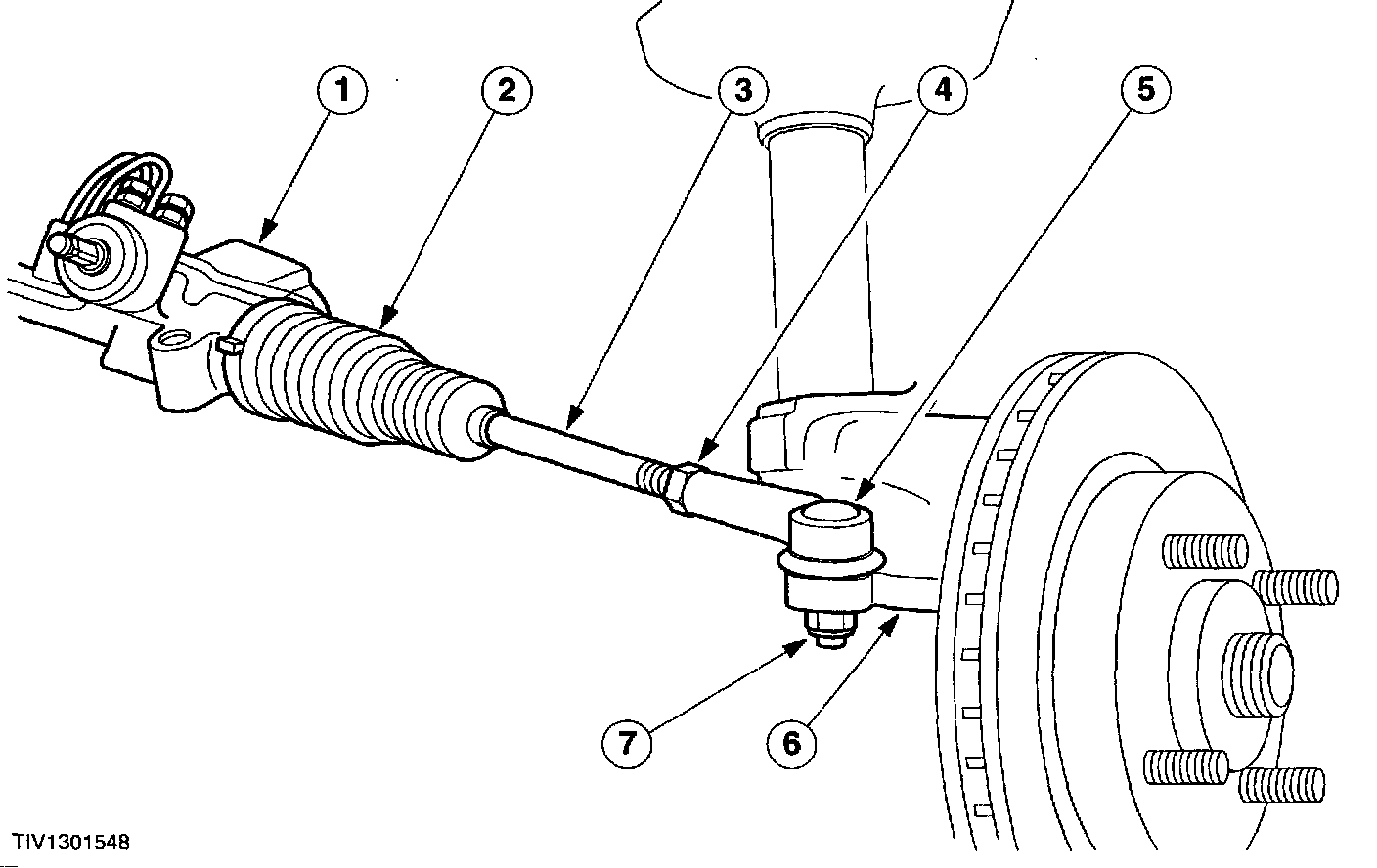

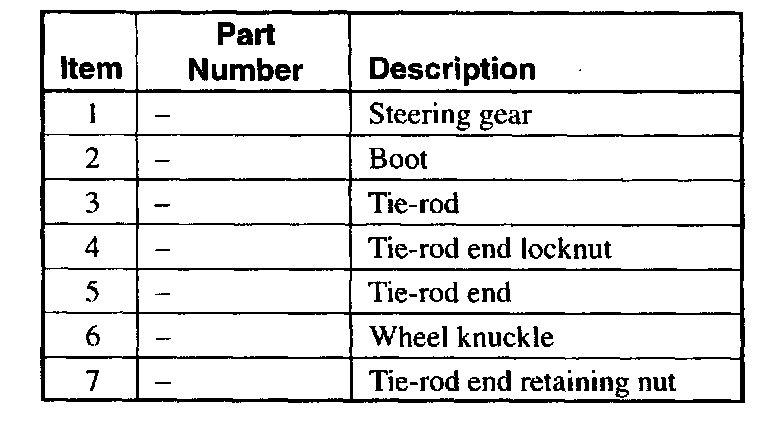

The tie-rod is an extension to the steering gear. The steering gear movement is transferred to the wheels by means of:
^ Tie-rod
^ Tie-rod end
^ Wheel knuckle

The tie-rod end is secured to the tie-rod with a locknut.

To prevent the ingress of dirt and water, the tie-rod entry into the steering gear is protected by a boot.

SVT vehicles are equipped with travel restrictors, to allow for larger wheel and tire combination without interference problems.
