Ignition Coil: Service and Repair

REMOVAL

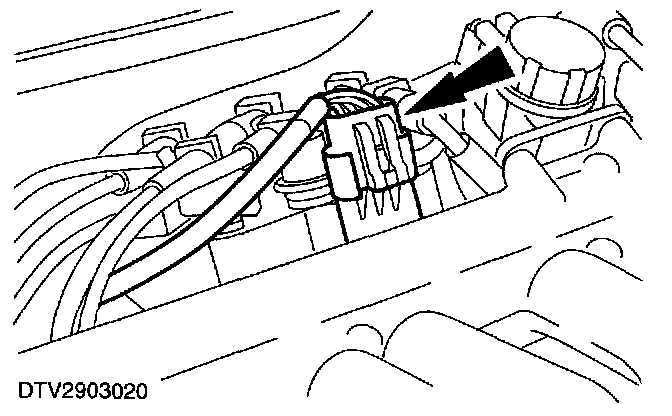

1. Disconnect the ignition coil electrical connector.

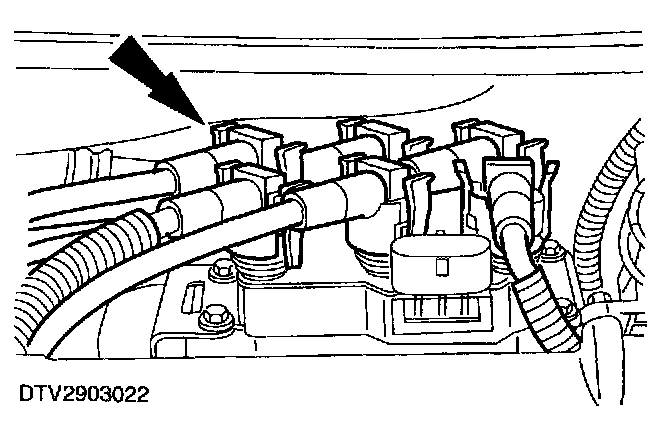

2. Disconnect the spark plug wires from the ignition coil.

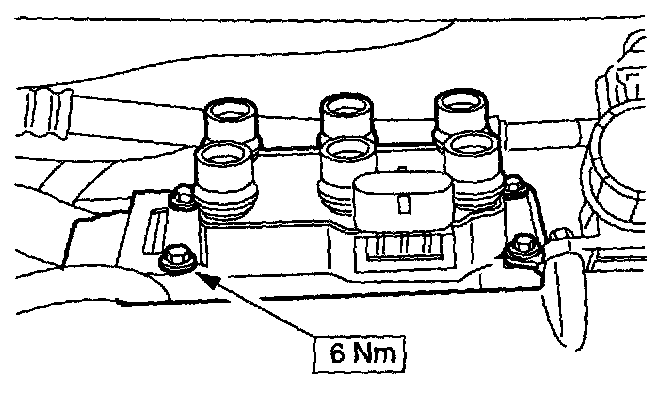

3. Remove the ignition coil.

INSTALLATION












1. To install, reverse the removal procedure.

NOTE: When installing the ignition coil, make sure the ground wire is connected.
