RH

EGO Sensor Wrench:

SPECIAL TOOL(S)

REMOVAL
1. Remove the ignition coil. For additional information, refer to Ignition System.

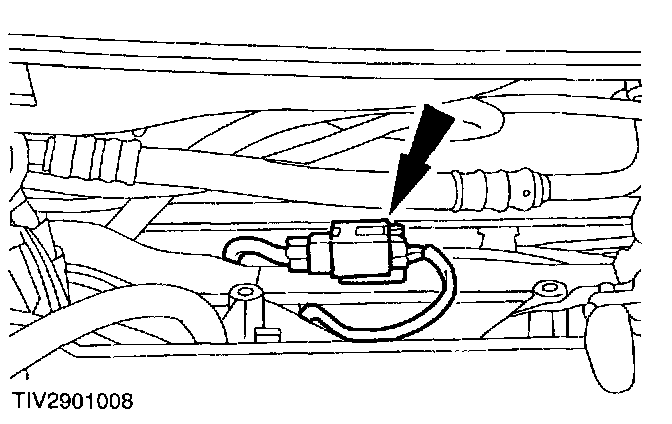

2. Disconnect the heated oxygen sensor electrical connector.
3. Remove the engine splash shield.

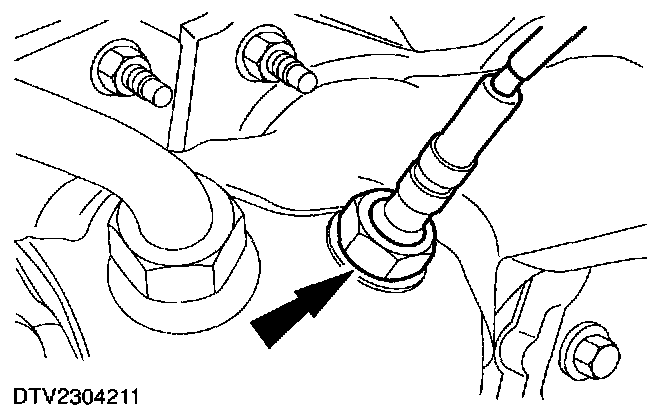

4. Remove the heated oxygen sensor.

INSTALLATION

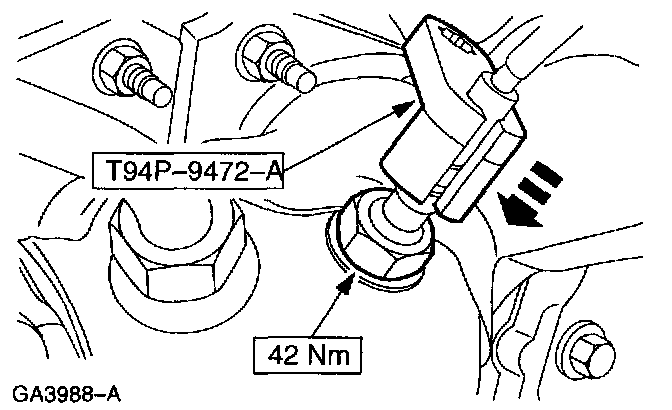

1. Use the Oxygen Sensor Wrench to install the heated oxygen sensor.
2. To install, reverse the removal procedure.
