LH

Removal
1. Remove the left-hand Heated Oxygen (H02S) Sensor.
2. Remove the exhaust crossover tube.

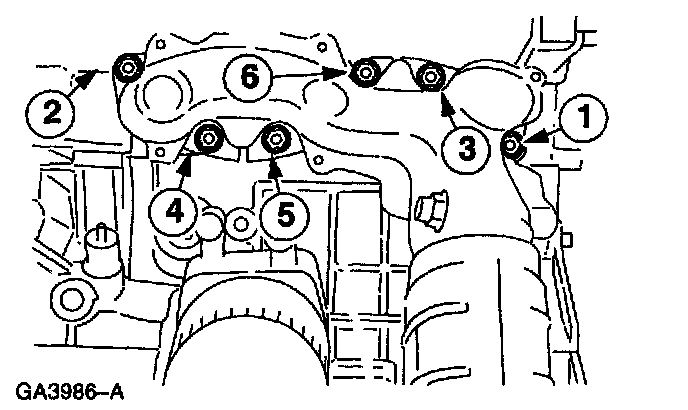

3. Remove the nuts and remove the left-hand exhaust manifold and gasket in the sequence shown.
- Remove and discard the gasket.

Installation





1. NOTE: Use a new exhaust manifold gasket.

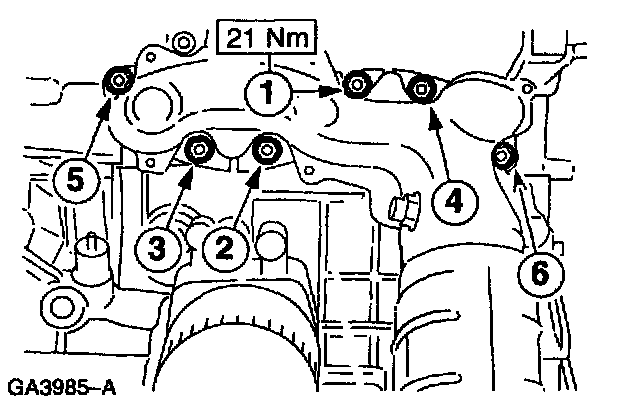

NOTE: Tighten in the sequence shown.

To install, reverse the removal procedure.
