Timing Chain: Service and Repair
Removal1. Remove and discard the camshaft oil seal.

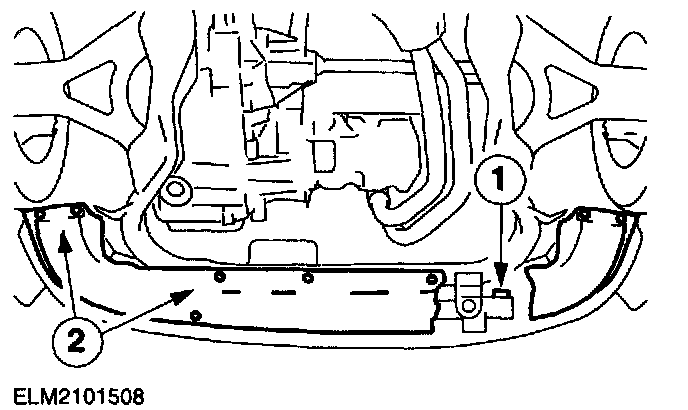

2. Remove the engine front cover.

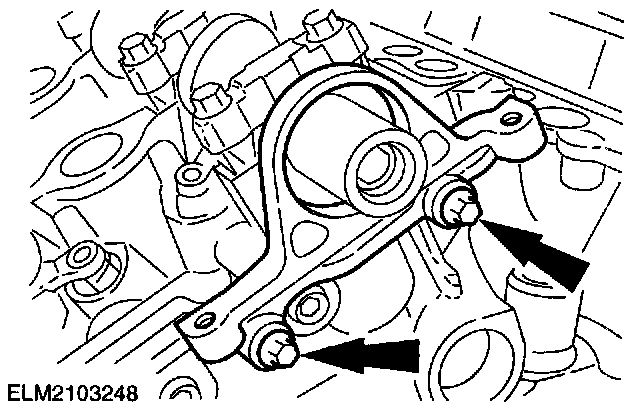

3. Remove the camshaft oil seal retainer.

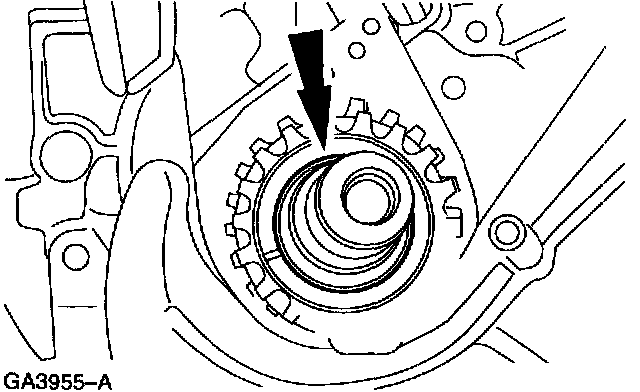

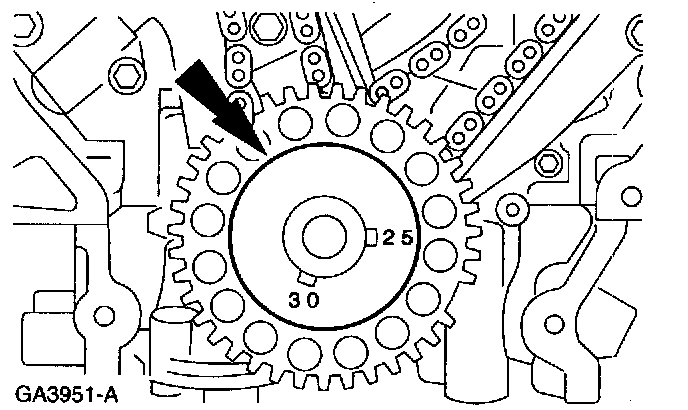

4. NOTE: The pulse ring has two keyways, one for the 3.0L engine and one for the 2.5L engine.
Remove the Crankshaft Position (CKP) sensor pulse wheel.
- Install the pulse wheel with the keyway in the 2.5L slot.
5. Install the crankshaft pulley bolt and washer.
6. CAUTION: Rotate the crankshaft clockwise to position the crankshaft keyway to the 11 o'clock position and the engine to Top Dead Center (TDC) No. 1 cylinder before the removal and installation of the camshafts and the roller finger followers or damage to the engine may occur.
NOTE: Do not rotate the crankshaft counterclockwise. The timing chains may bind causing engine damage.
NOTE: If the Roller Finger Follower (RFF) marks do not align, rotate the crankshaft one complete revolution.

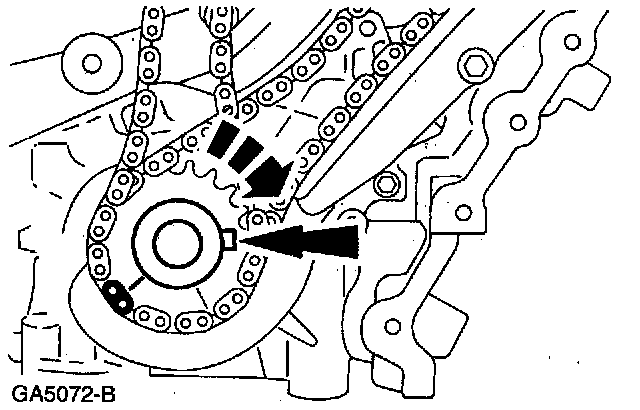

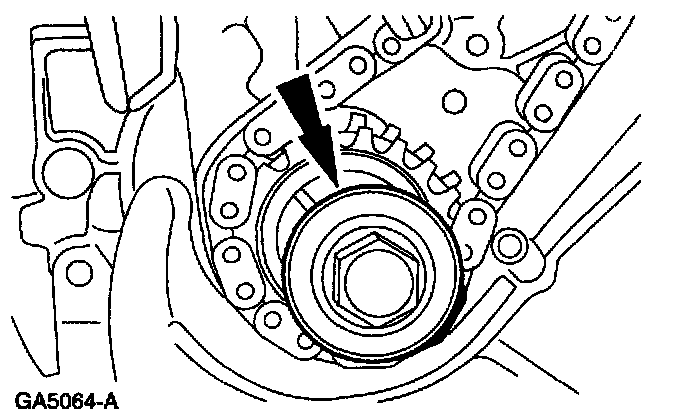

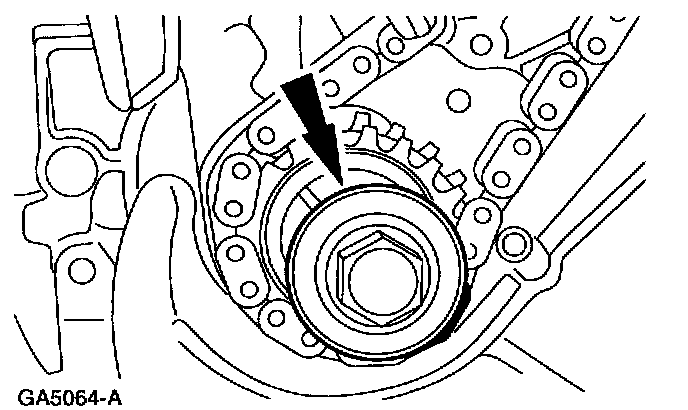

Position the crankshaft.

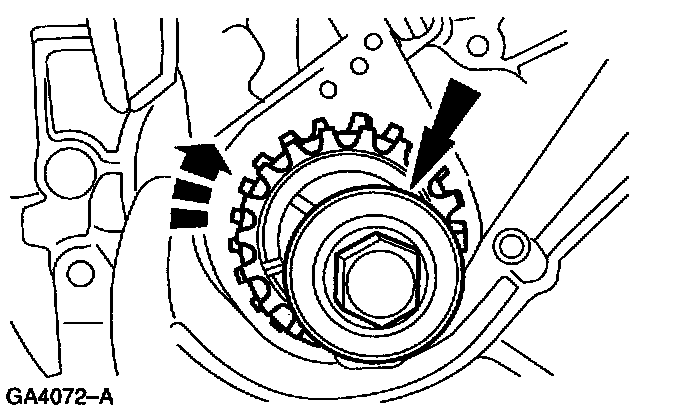

- Rotate the crankshaft keyway clockwise to the 11 o'clock position.

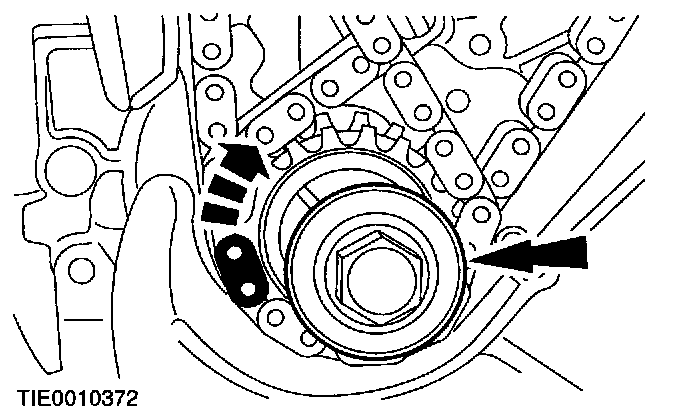

7. Rotate the crankshaft clockwise to position the crankshaft keyway in the 3 o'clock position.

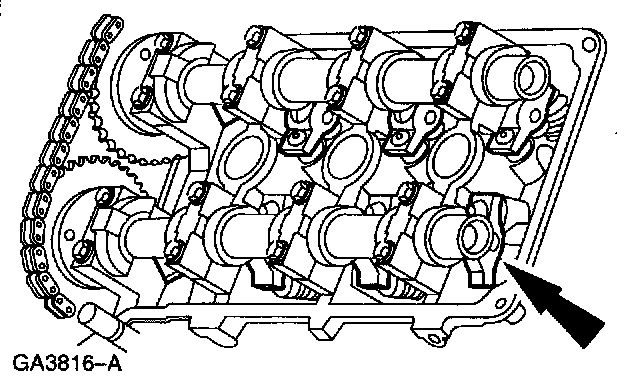

- The right-hand camshafts are in the neutral position.
8. NOTE: Mark the position of all chain drive components to make sure they are assembled in their original positions.

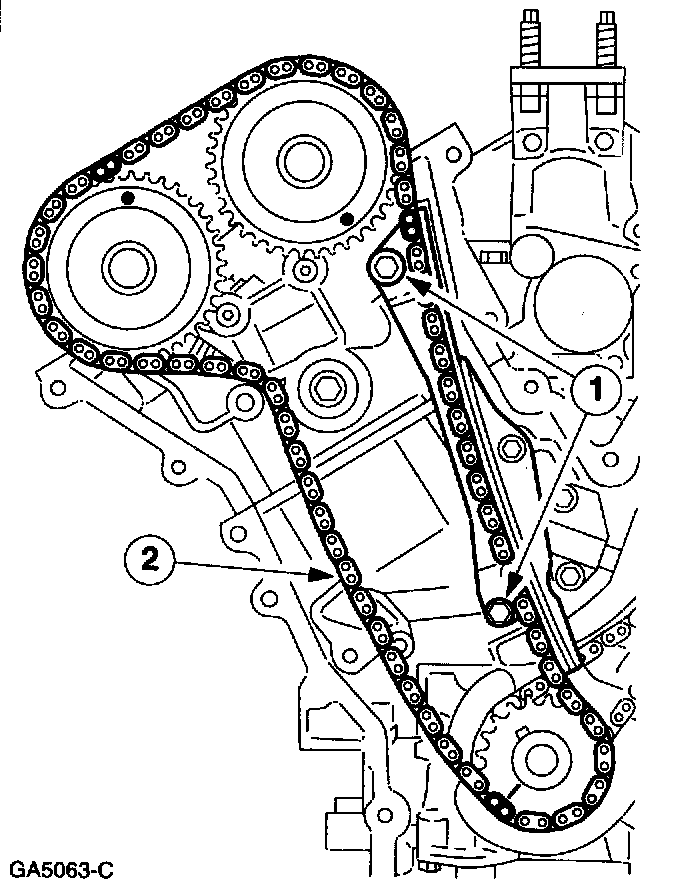

Remove the right-hand chain tensioner and tensioner arm.

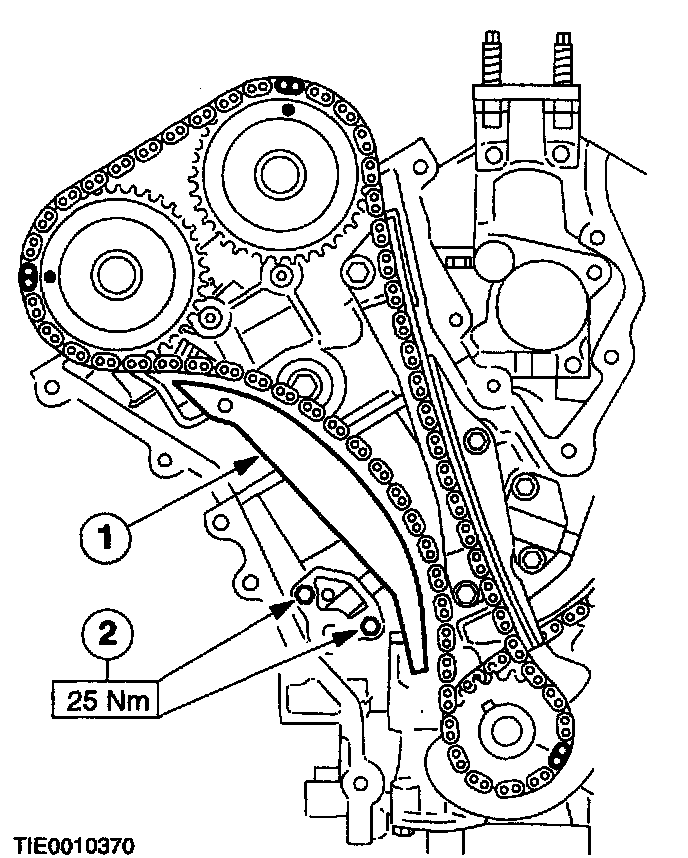

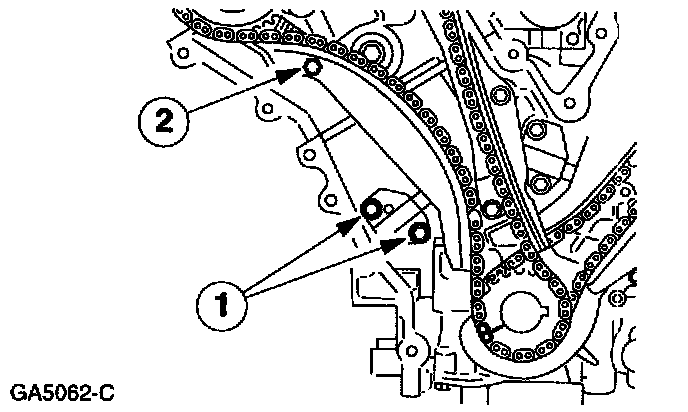

1 Remove the bolts, the chain tensioner and the tensioner adapter plate right-hand, (if equipped).
2 Remove the tensioner arm.
9. Remove the right-hand timing chain.
1 Remove the timing chain guide.
2 Remove the right-hand timing chain.
10. CAUTION: The cylinder head and the camshaft bearing caps are numbered to make sure they are reassembled in their original position. When removed, keep the bearing caps with the cylinder head they were removed from. Do not mix the caps.
NOTE: Remove the camshaft bearing thrust caps Nos. 1R and 5R first. Do not loosen any other bolts until the thrust caps are removed.
NOTE: Camshaft bearing caps are doweled to cylinder head. If necessary use a plastic mallet to loosen the caps.

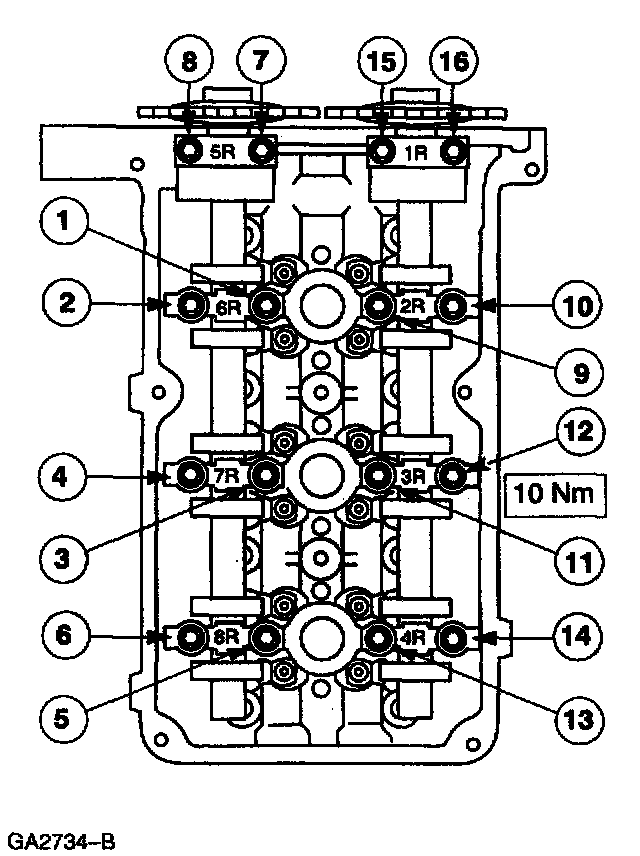

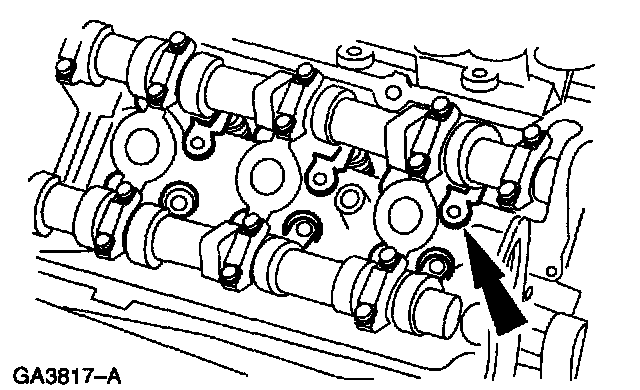

Loosen the camshafts (right-hand cylinder head).

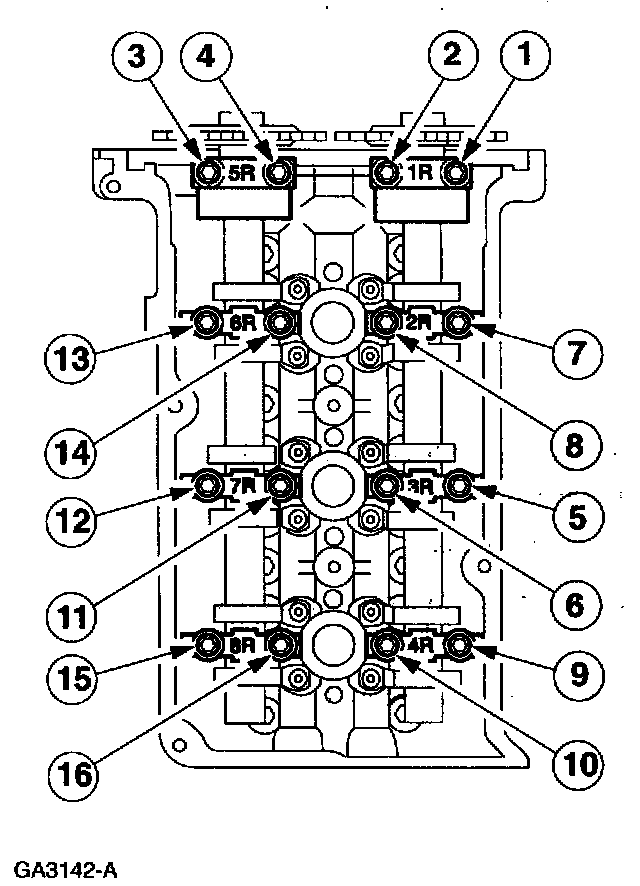

- Loosen the remaining bolts and bearing caps in the indicted sequence in several passes to allow the camshafts to gradually raise from the cylinder head.
- Remove the Roller Finger Followers (RFF).
11. Rotate the crankshaft clockwise 2 revolutions until the keyway is in the 11 o'clock position.
12. Remove the crankshaft pulley bolt and washer.
13. Remove the left-hand chain tensioner and tensioner arm.
1 Remove the bolts.
2 Remove the chain tensioner and the tensioner adapter plate left-hand, if equipped.
3 Remove the tensioner arm.
14. Remove the left-hand timing chain.
1 Remove the fixed chain guide.
2 Remove the left-hand timing chain.
15. CAUTION: The cylinder head and the camshaft bearing caps are numbered to make sure they are reassembled in their original position. When removed, keep the bearing caps with the cylinder head they were removed from. Do not mix the caps.
NOTE: Remove the camshaft bearing thrust caps Nos. 1L and 5L first. Do not loosen any other bolts until the thrust caps are removed.
Loosen the camshafts (left-hand cylinder head).
- Loosen the remaining bolts and bearing caps in the indicated sequence in several passes to allow the camshafts to gradually raise from the cylinder head.
- Remove the Roller Finger Followers (RFF).
16. Remove the timing chain sprocket.
Installation

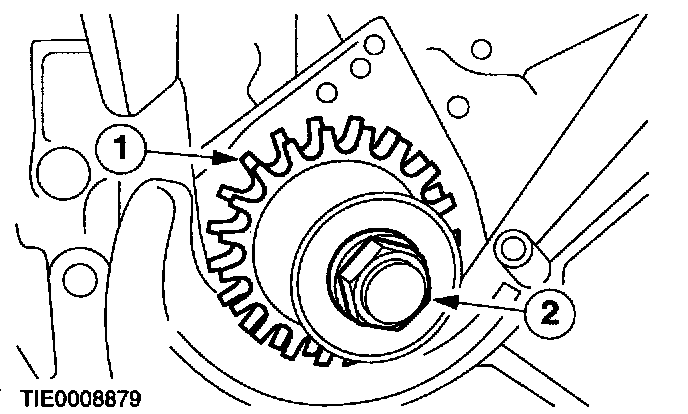

1. Install the crankshaft pulley washer and bolt.
1 Install the timing chain sprocket.
2 Install the washer and bolt.

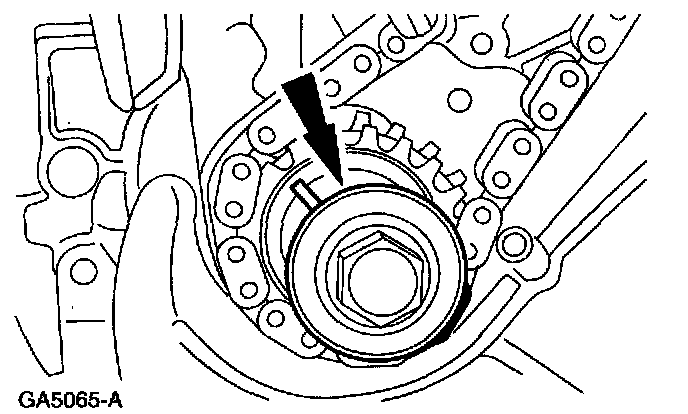

2. Position the crankshaft.
- Turn the crankshaft clockwise to position the key to the 11 o'clock position.
- Remove the crankshaft pulley bolt and washer.
3. Lubricate the camshafts with engine assembly lubricant or equivalent meeting Ford specification ESR-M99C80-A.

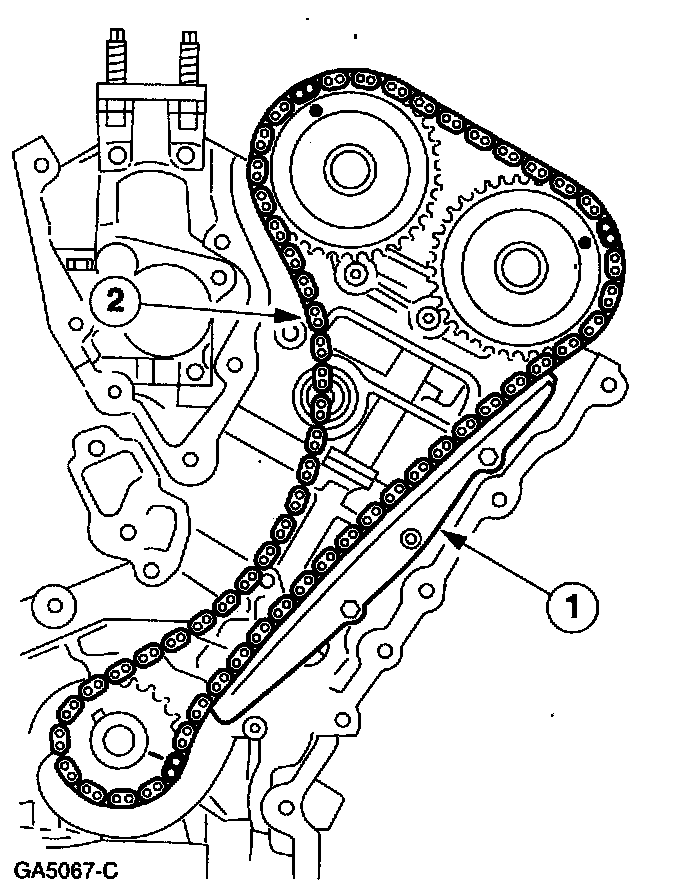

4. NOTE: The colored links of the timing chain and the marks on the timing sprockets must line up.

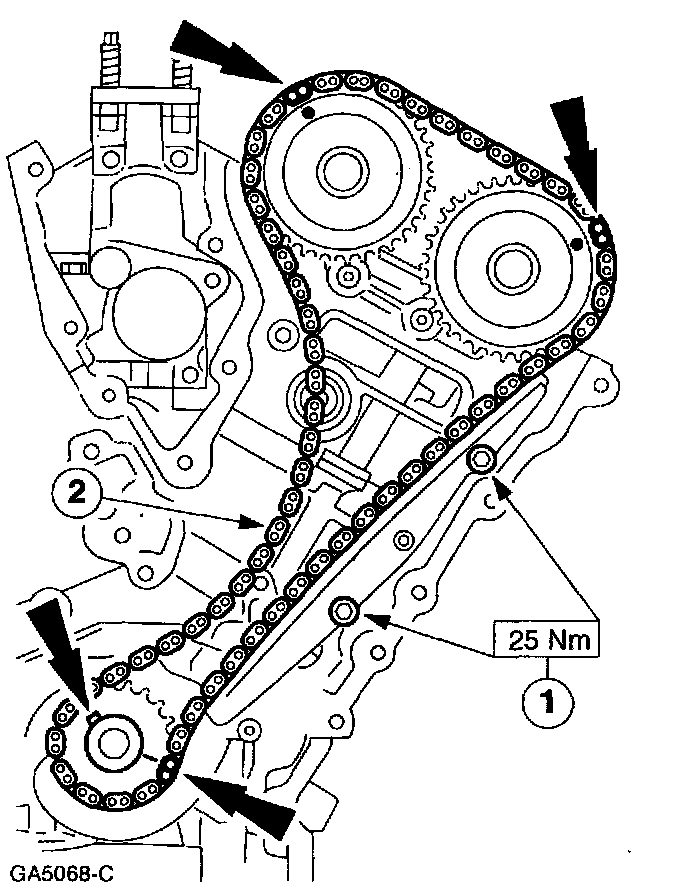

Install the left-hand timing chain.
1 Install the left-hand chain guide and bolts (black material).
2 Install the timing chain.
5. Position the left-hand timing chain tensioner in a vise with jaw protectors.
6. CAUTION: During tensioner compression, do not release the ratchet stem until the tensioner piston is fully bottomed in its bore, or damage to the ratchet stem will result.

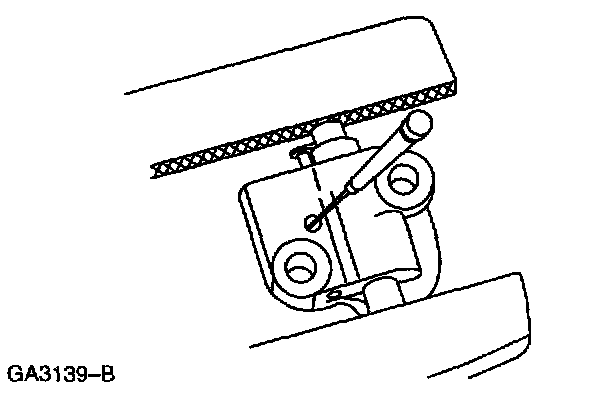

Hold the left-hand timing chain tensioner ratchet lock mechanism away from the ratchet stem with a small pick.
7. NOTE: The piston should retract with minimal force. If binding occurs, reposition the tensioner to eliminate side loading.
Slowly compress the left-hand timing chain tensioner.

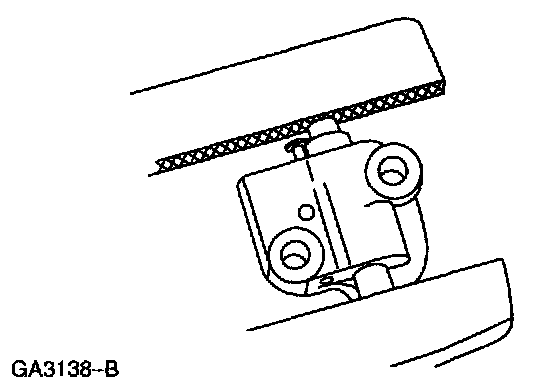

8. NOTE: The wire must remain in the timing chain tensioner until the tensioner is installed onto the engine with the piston bottomed in the bore.

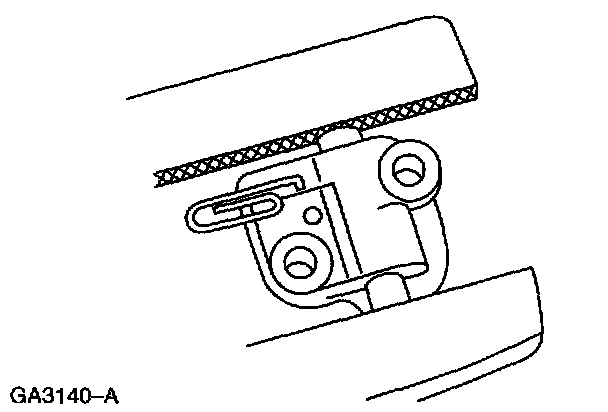

Retain piston with a 1.5 mm wire or paper clip.

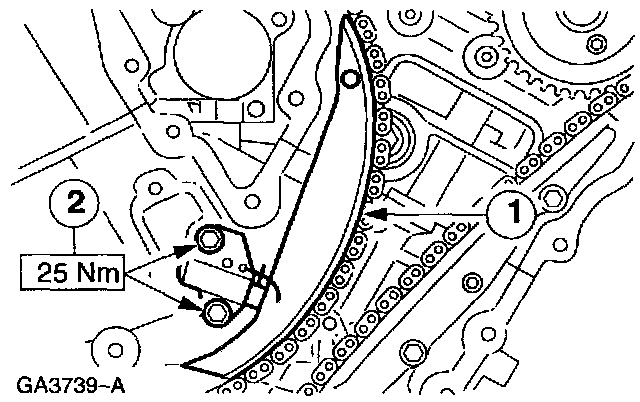

9. Install the left-hand timing chain tensioner.
1 Install the left-hand tensioner arm (black material).
2 Install the left-hand tensioner adapter plate and the timing chain tensioner.
10. NOTE: The colored links of the timing chain and the marks on the timing sprockets must line up.
Install the right-hand timing chain.
1 Install the timing chain guide and bolts (tan material).
2 Install the timing chain.
11. Position the right-hand timing chain tensioner in a vise with jaw protectors.
12. CAUTION: During tensioner compression, do not release the ratchet stem until the tensioner piston is fully bottomed in its bore, or damage to the ratchet stem will result.
Hold the right-hand timing chain tensioner ratchet lock mechanism away from the ratchet stem with a small pick.
13. NOTE: The piston should retract with minimal force. If binding occurs, reposition the tensioner to eliminate side loading.
- Slowly compress the right-hand timing chain tensioner.
14. NOTE: The wire must remain in the timing chain tensioner until the tensioner is installed with the piston bottomed in the bore.
Retain piston with a 1.5 mm wire or paper clip.
15. Install the right-hand timing chain tensioner.
1 Install the right-hand tensioner arm (tan material).
2 Install the right-hand tensioner adapter plate and the timing chain tensioner.
16. CAUTION: The crankshaft keyway must be in the 11 o'clock position prior to installation of the left-hand cylinder roller finger followers. Failure to do so may lead to engine damage.
NOTE: Verify that all timing marks are in the correct position before installing the roller finger followers.
NOTE: Roller finger followers must be installed in their original locations.
Install the left-hand roller finger followers.
- Lubricate the roller finger follower with engine assembly lubricant or equivalent meeting Ford specification ESK-M99C80-A.
17. CAUTION: Do not install the left-hand cylinder head camshaft journal thrust caps until camshaft journal caps are installed or damage to the thrust caps may occur.
NOTE: With left-hand cylinder head roller finger followers installed, align camshaft end play using thrust caps as a guide before tightening journal caps.

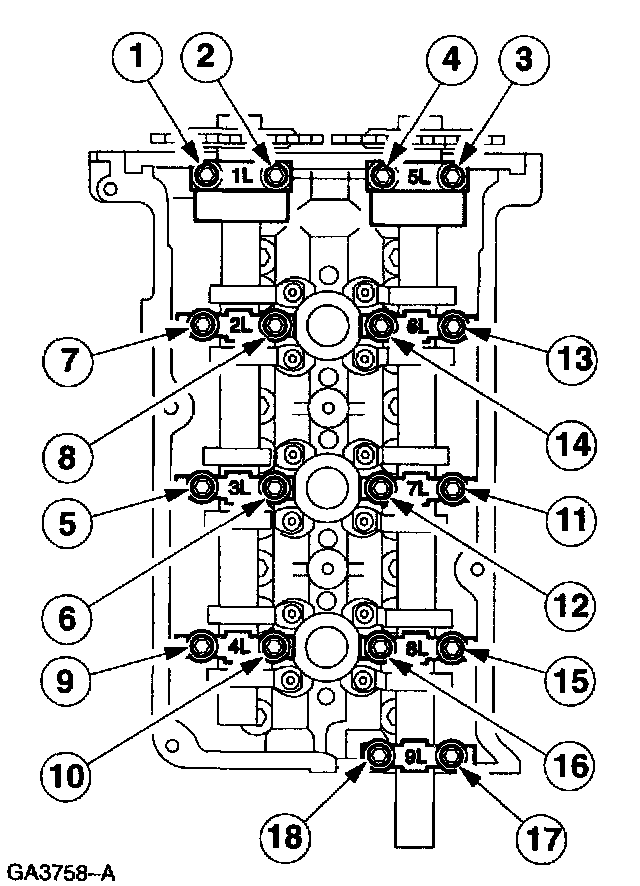

Tighten the left-hand camshaft cap bolts in the indicated sequence in several passes.
18. Install the crankshaft pulley bolt and washer.
19. CAUTION: Rotating the crankshaft counterclockwise may cause the timing chains to bind and may cause engine damage.

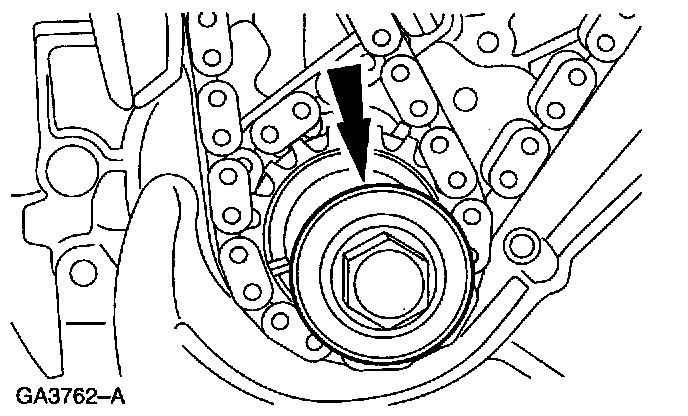

Rotate the engine clockwise to locate the crankshaft keyway to the 3 o'clock position.
20. CAUTION: The crankshaft keyway must be in the 3 o'clock position before installation to the right-hand cylinder head roller finger followers. Failure to do so may lead to engine damage.
NOTE: Roller finger followers must be installed in their original locations.
Install the right-hand roller finger followers.
- Lubricate the roller finger followers with engine assembly lubricant or equivalent meeting Ford specification ESR-M99C80-A.
21. CAUTION: Do not install the right-hand cylinder head camshaft journal thrust caps until camshaft journal caps are installed, or damage to the thrust caps may occur.
NOTE: With the right-hand cylinder head roller finger followers installed, align the camshaft end play using the thrust caps as a guide before tightening the journal caps.

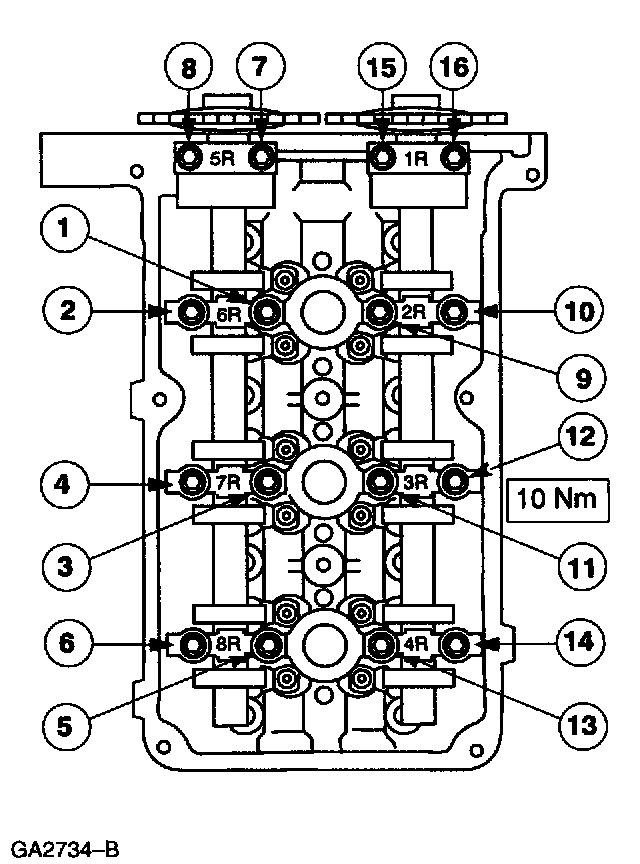

Tighten the right-hand camshaft cap bolts in the indicated sequence in several passes.
22. NOTE: Left-hand shown, right-hand similar.

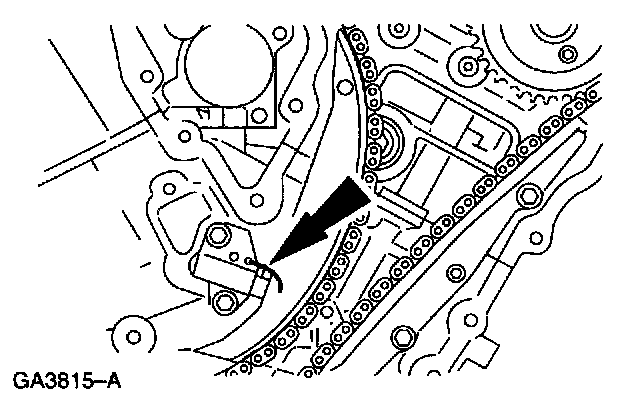

Remove the right-hand and left-hand chain tensioner retaining wires.
23. Remove the crankshaft pulley bolt and washer.

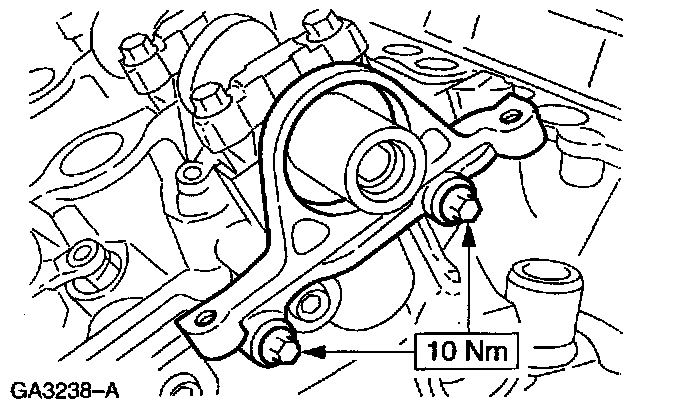

24. Install the camshaft oil seal retainer.
25. Install a new camshaft oil seal.
26. Install the engine front cover.
