Connecting Rod Large End Bore

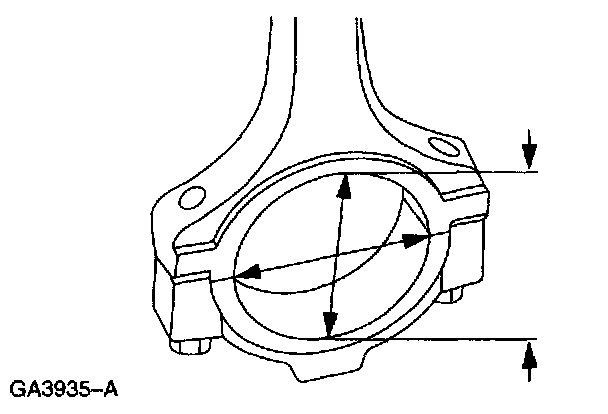

1. Measure the bearing bore in two directions. The difference is the connecting rod bore out-of-round. Verify the out-of-round is within specification.





2. Measure the bearing bore diameter in two directions. Verify the bearing bore is within specification.
