Thermostat Housing: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Drain the cooling system.





3. Remove the engine cover.

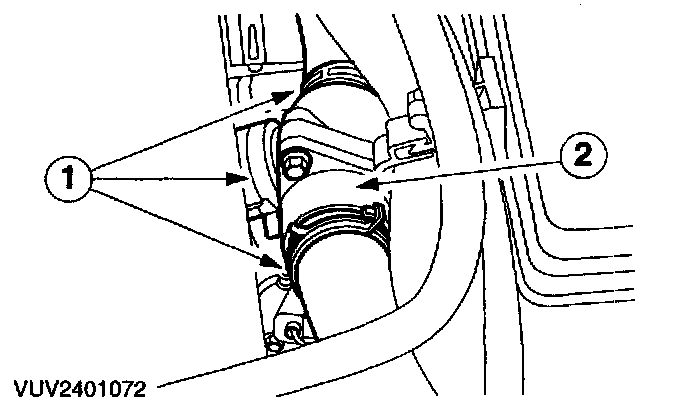

4. Re move the thermostat housing.
1 Disconnect the hoses.
2 Remove the housing.

Installation
1. To install, reverse the removal procedure.
2. Refill the cooling system.
