System Diagram

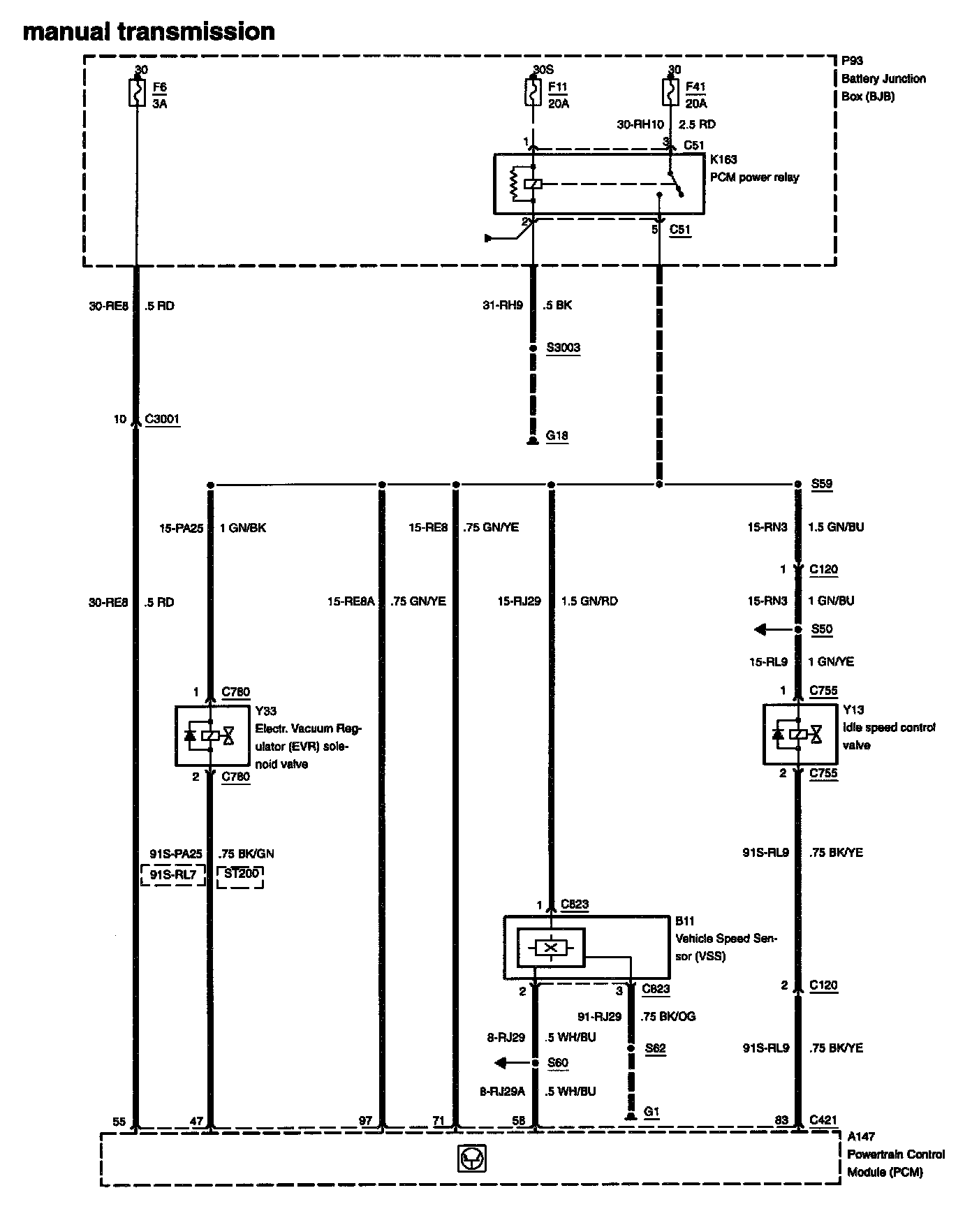

DETAILED DIAGRAMSDiagram 303-14b-00-1:
Battery Junction Box
Electronic Vacuum Regulator Solenoid Valve
Fuse F6
Fuse F11
Fuse F41
Idle Speed Control Valve
Powertrain Control Module
Powertrain Control Module Power Relay
Vehicle Speed Sensor

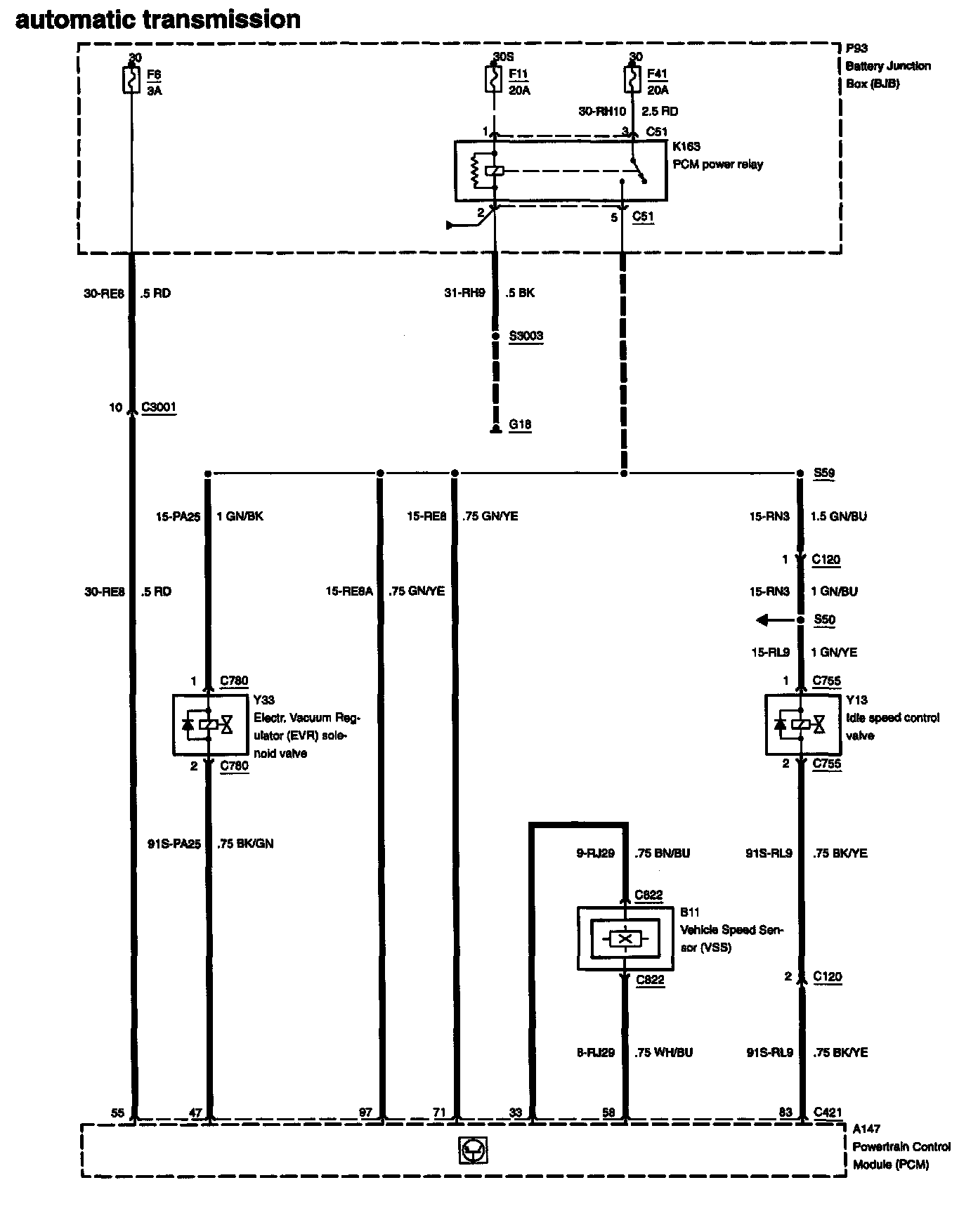

Diagram 303-14B-00-2:
Battery Junction Box
Electronic Vacuum Regulator Solenoid Valve
Fuse F6
Fuse F11
Fuse F41
Idle Speed Control Valve
Powertrain Control Module
Powertrain Control Module Power Relay
Vehicle Speed Sensor

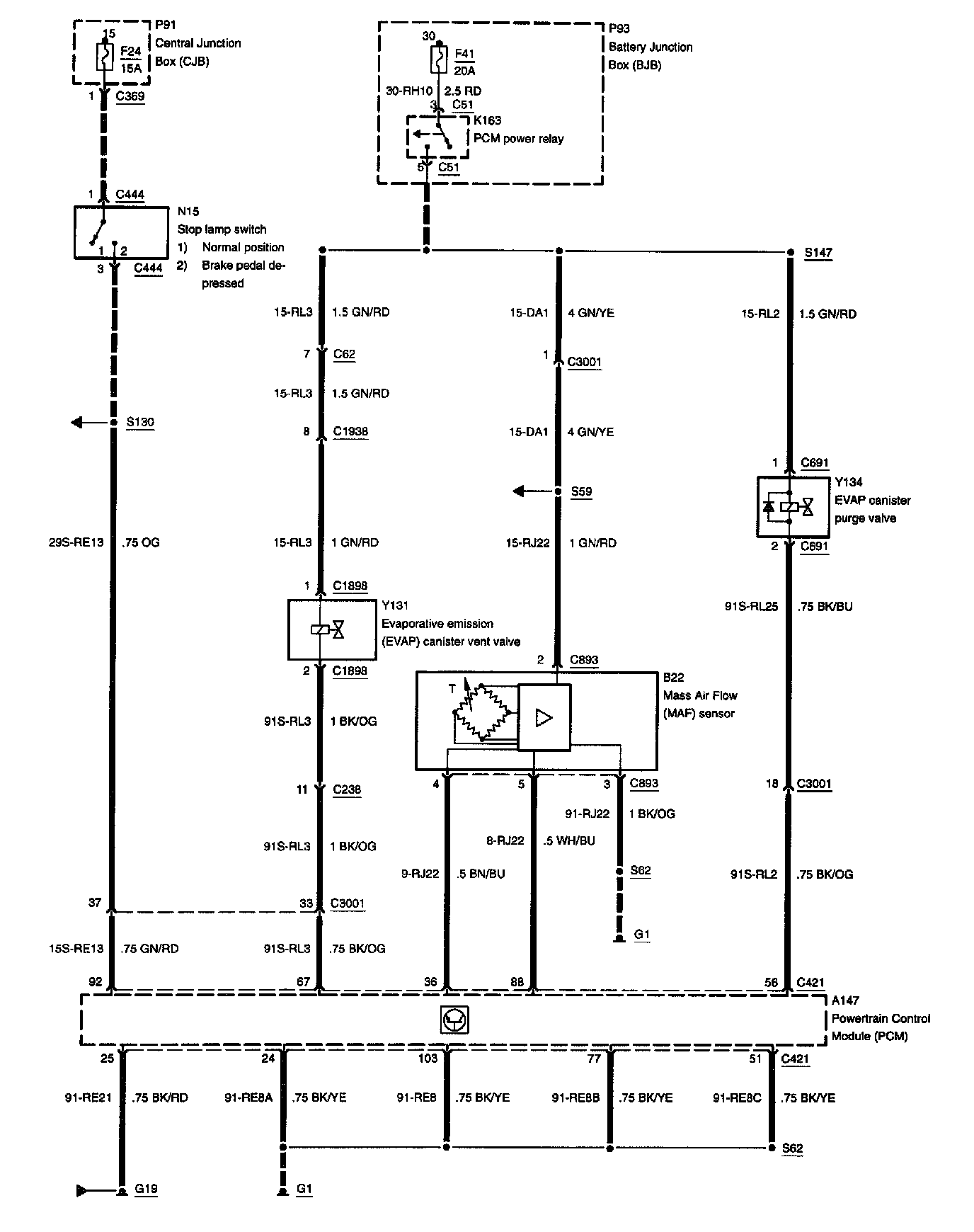

Diagram 303-14B-00-3:
Battery Junction Box
Central Junction Box
Evaporative Canister Purge Valve
Evaporative Emission Canister Vent Valve
Fuse 24
Fuse 41
Mass Air Flow Sensor
Powertrain Control Module
Powertrain Control Module Power Relay
Stop Lamp Switch
Diagram 303-14B-00-4:
Battery Junction Box
Compuvalve Module
Fuse F13
Heated Oxygen Sensor #12
Heated Oxygen Sensor #22
Knock Sensor 1
Powertrain Control Module

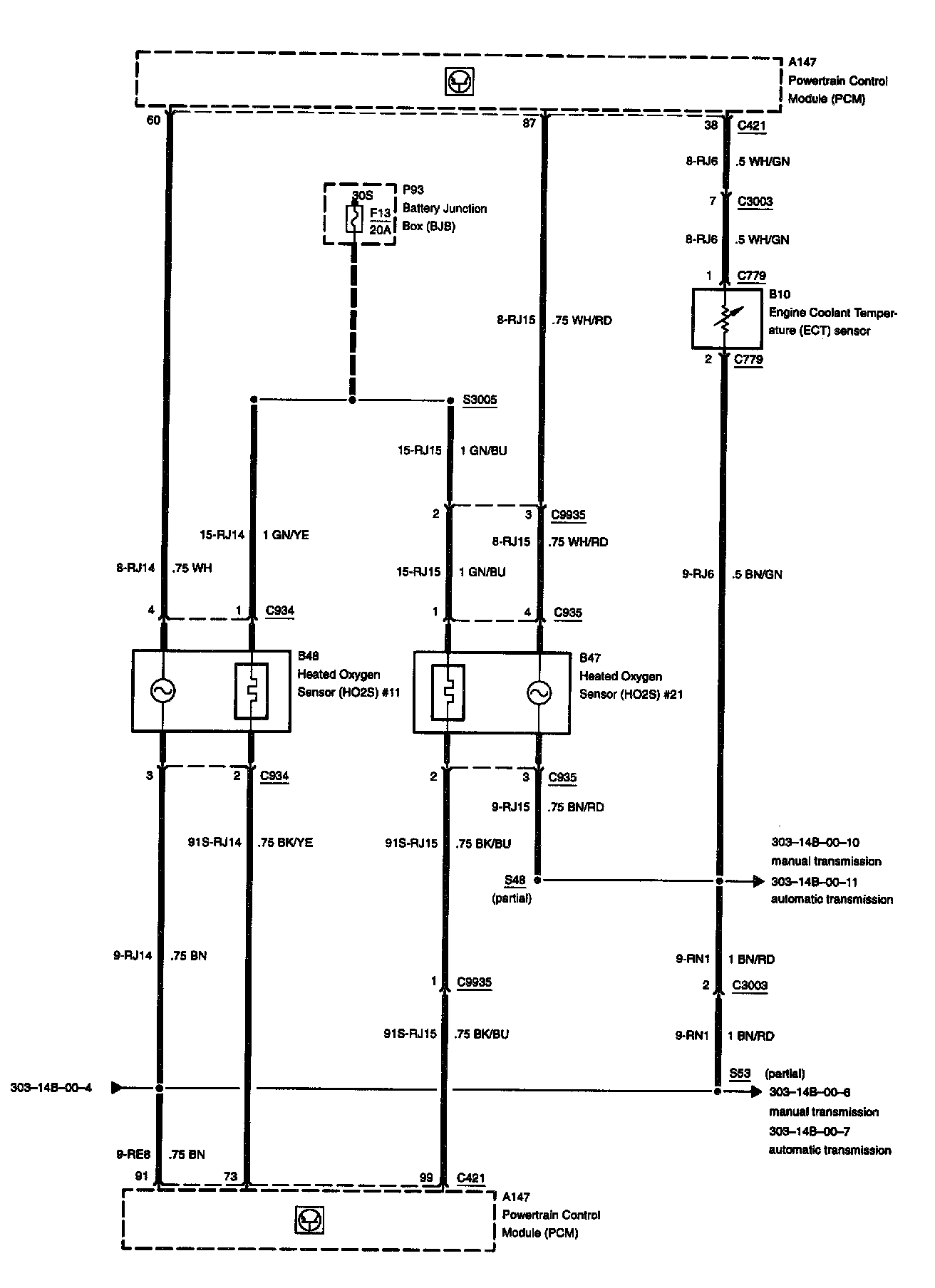

Diagram 303-14B-00-5:
Battery Junction Box
Engine Coolant Temperature Sensor
Fuse F13
Heated Oxygen Sensor #11
Heated Oxygen Sensor #21
Powertrain Control Module

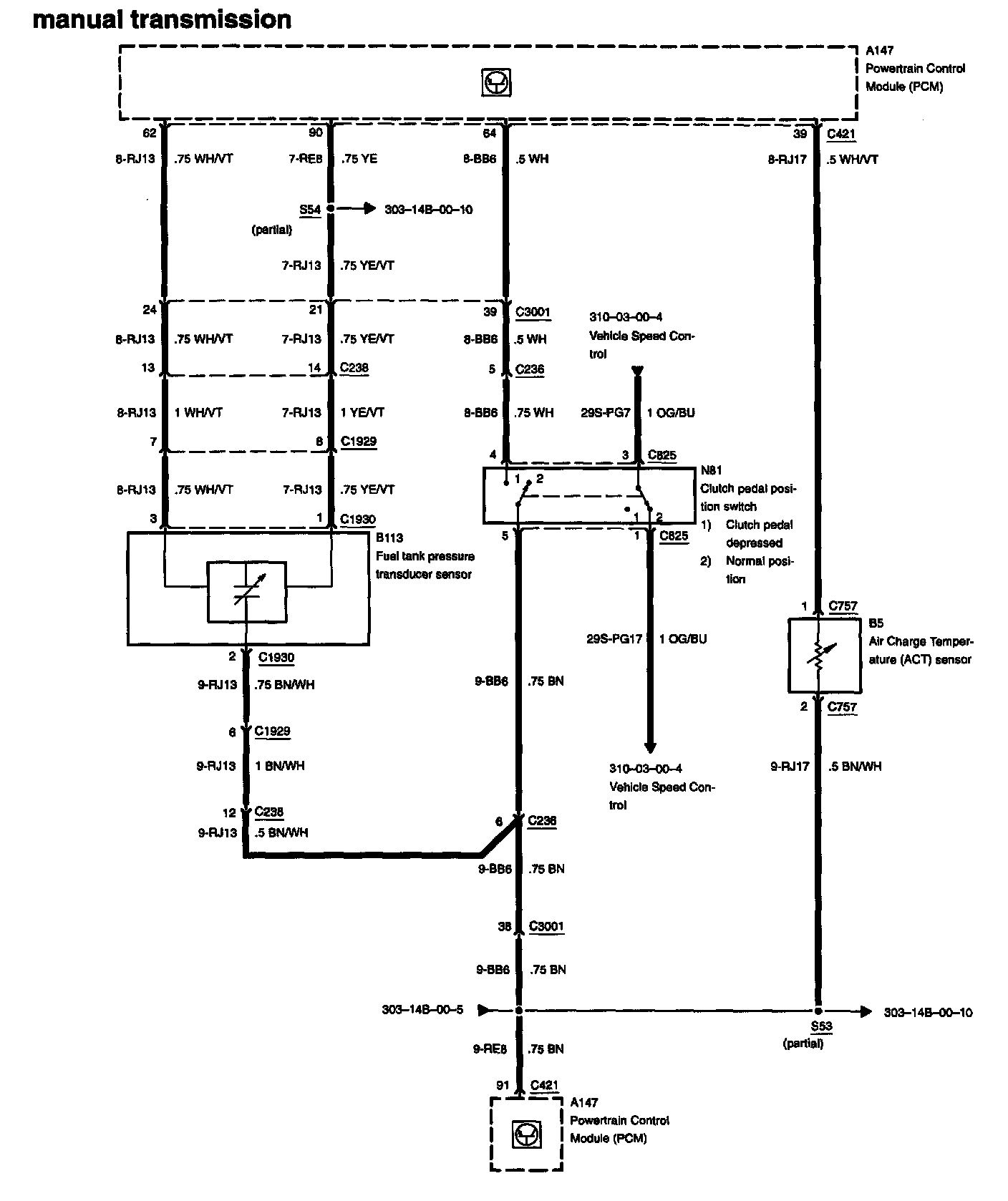

Diagram 303-14B-00-6:
Air Charge Temperature Sensor
Clutch Pedal Position Switch
Fuel Tank Pressure Transducer Sensor
Powertrain Control Module
Diagram 303-14B-00-7:
Air Charge Temperature Sensor
Fuel Tank Pressure Transducer Sensor
Powertrain Control Module
Transmission Range Sensor

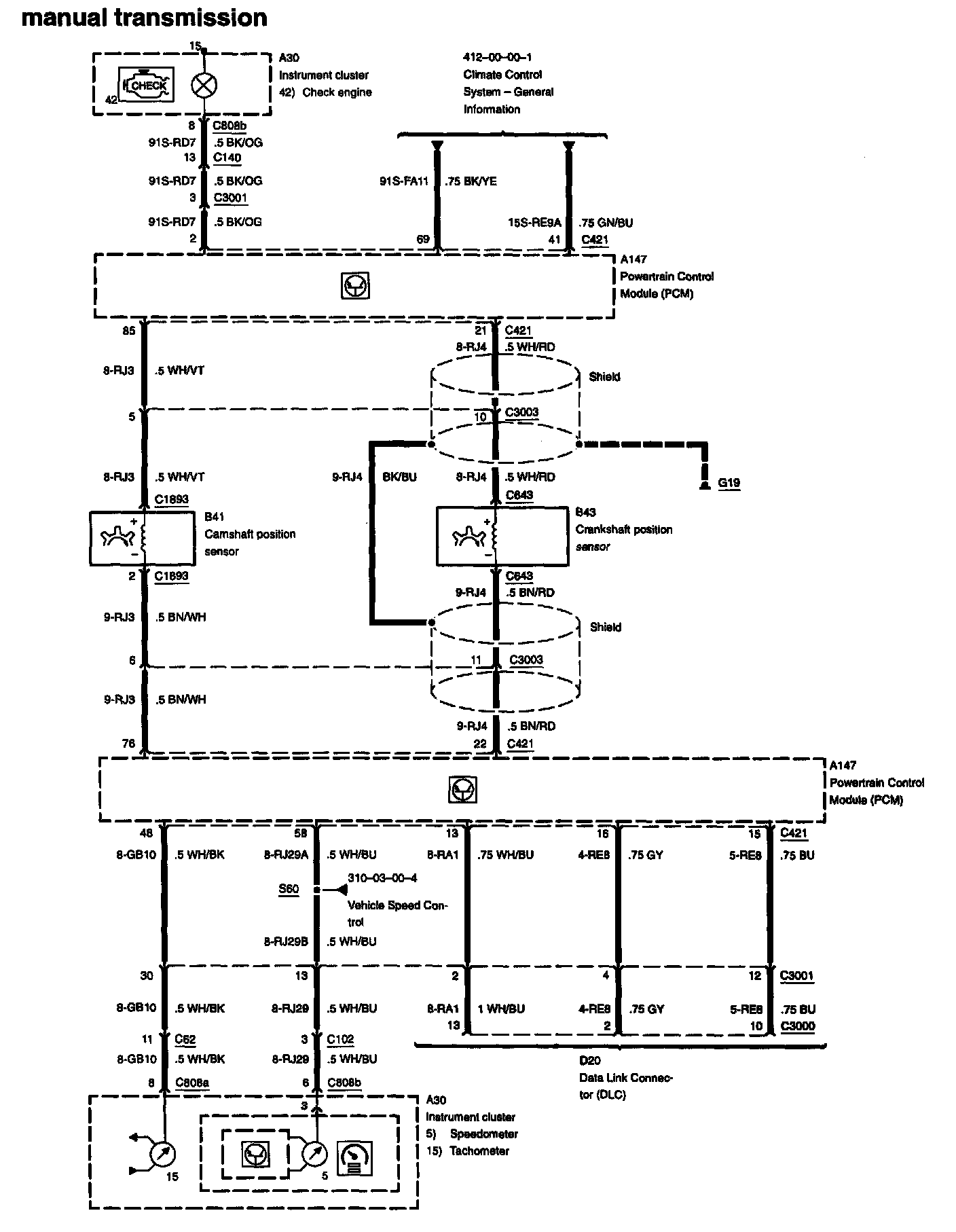

Diagram 303-14B-00-8:
Camshaft Position Sensor
Crankshaft Position Sensor
Data Link Connector
Instrument Cluster
Powertrain Control Module
Shield
Speedometer
Tachometer

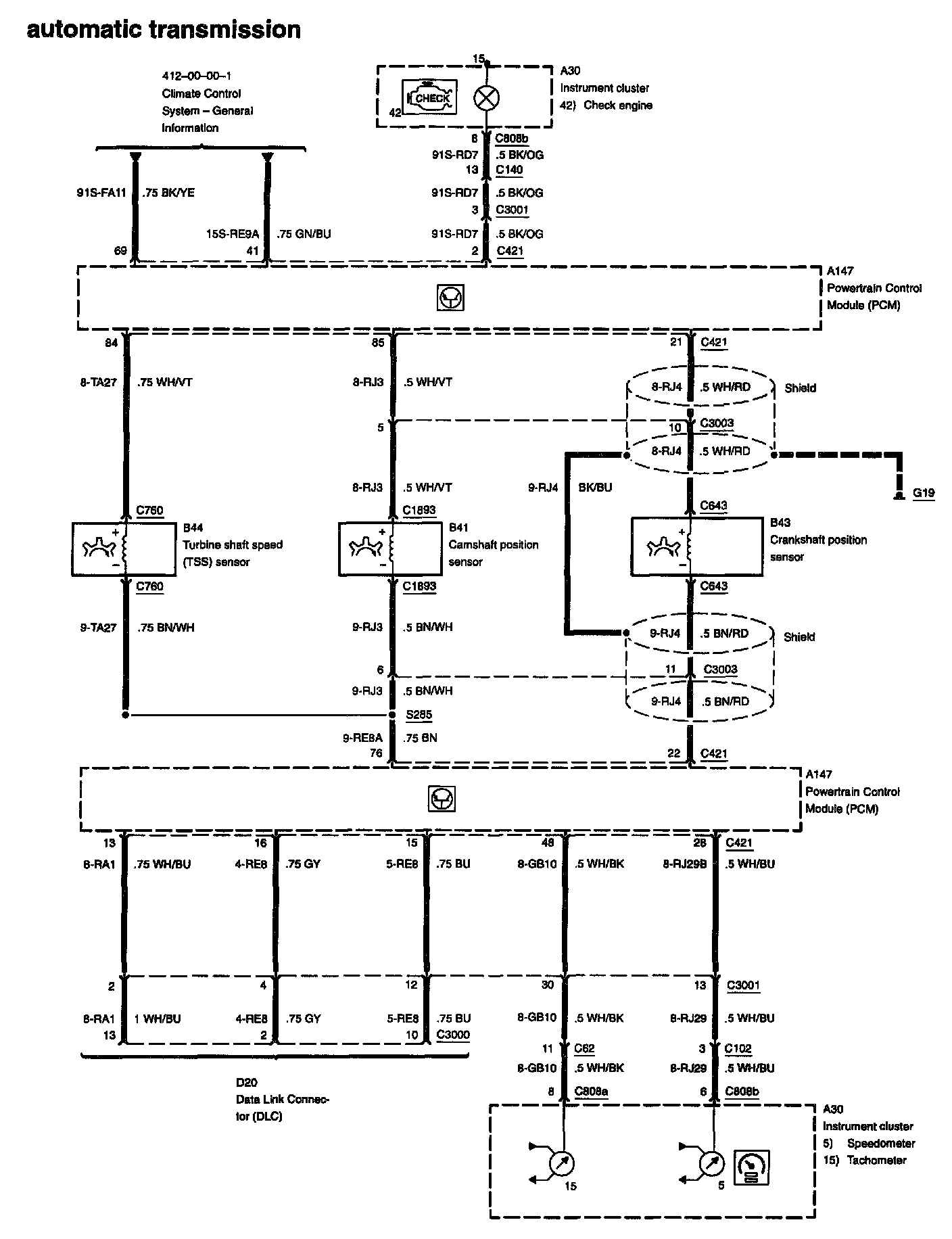

Diagram 303-14B-00-9:
Camshaft Position Sensor
Crankshaft Position Sensor
Data Link Connector
Instrument Cluster
Powertrain Control Module
Shield
Speedometer
Tachometer
Turbine Shaft Speed Sensor
Diagram 303-14B-00-10:
Exhaust Pressure Transducer Sensor
Fuel Rail Pressure Transducer Sensor
Power Steering Pressure Switch
Powertrain Control Module
Throttle Position Sensor

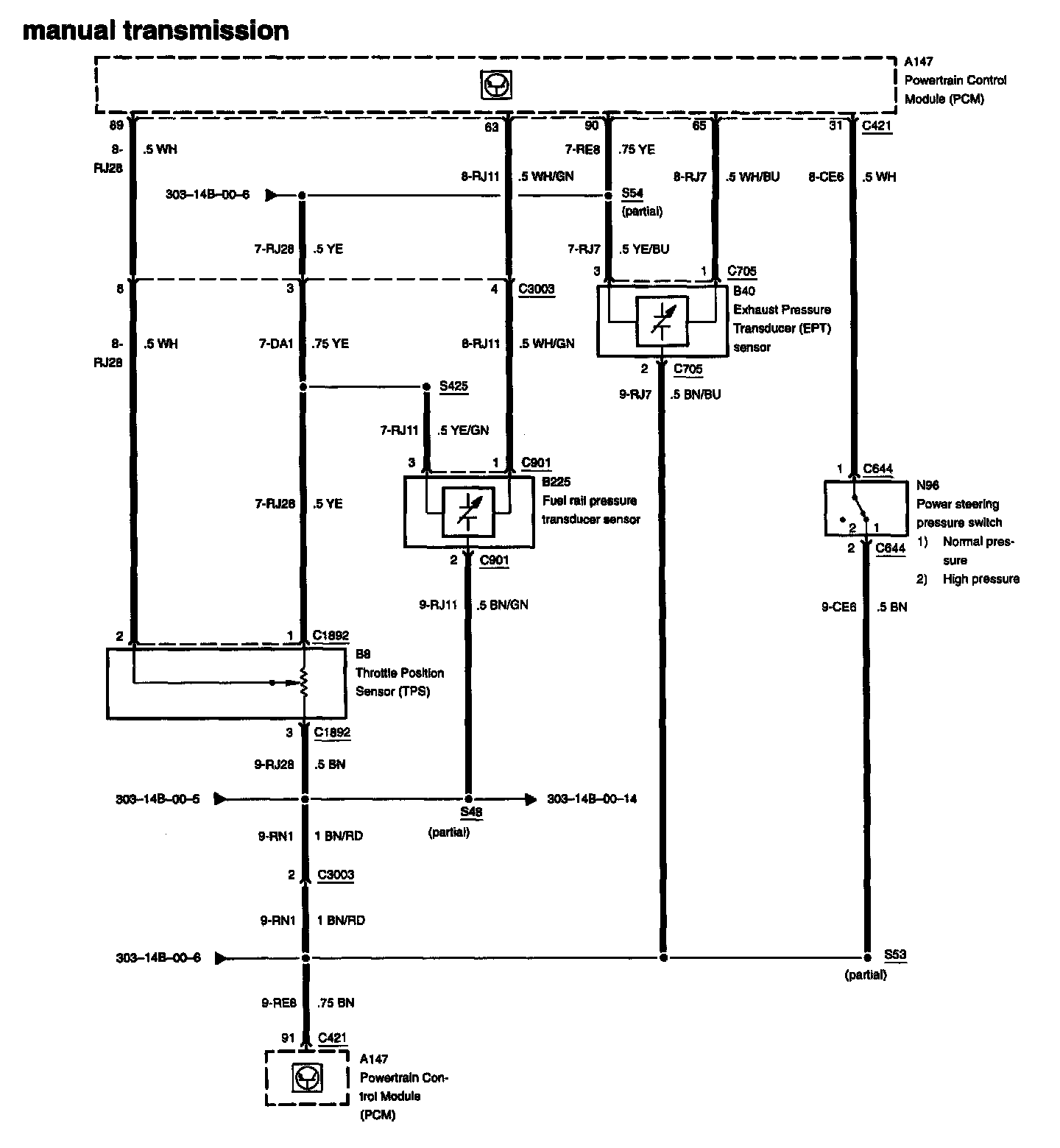

Diagram 303-14B-00-11:
Exhaust Pressure Transducer Sensor
Fuel Rail Pressure Transducer Sensor
Power Steering Pressure Switch
Throttle Position Sensor
Powertrain Control Module
Diagram 303-14B-00-12:
Battery Junction Box
Fuel Pump
Fuel Pump Driver Module
Fuel Pump Relay
Fuel Tank Unit
Fuse F41
Fuse F9
Inertia Fuel Shutoff Switch
Powertrain Control Module
Powertrain Control Module Power Relay

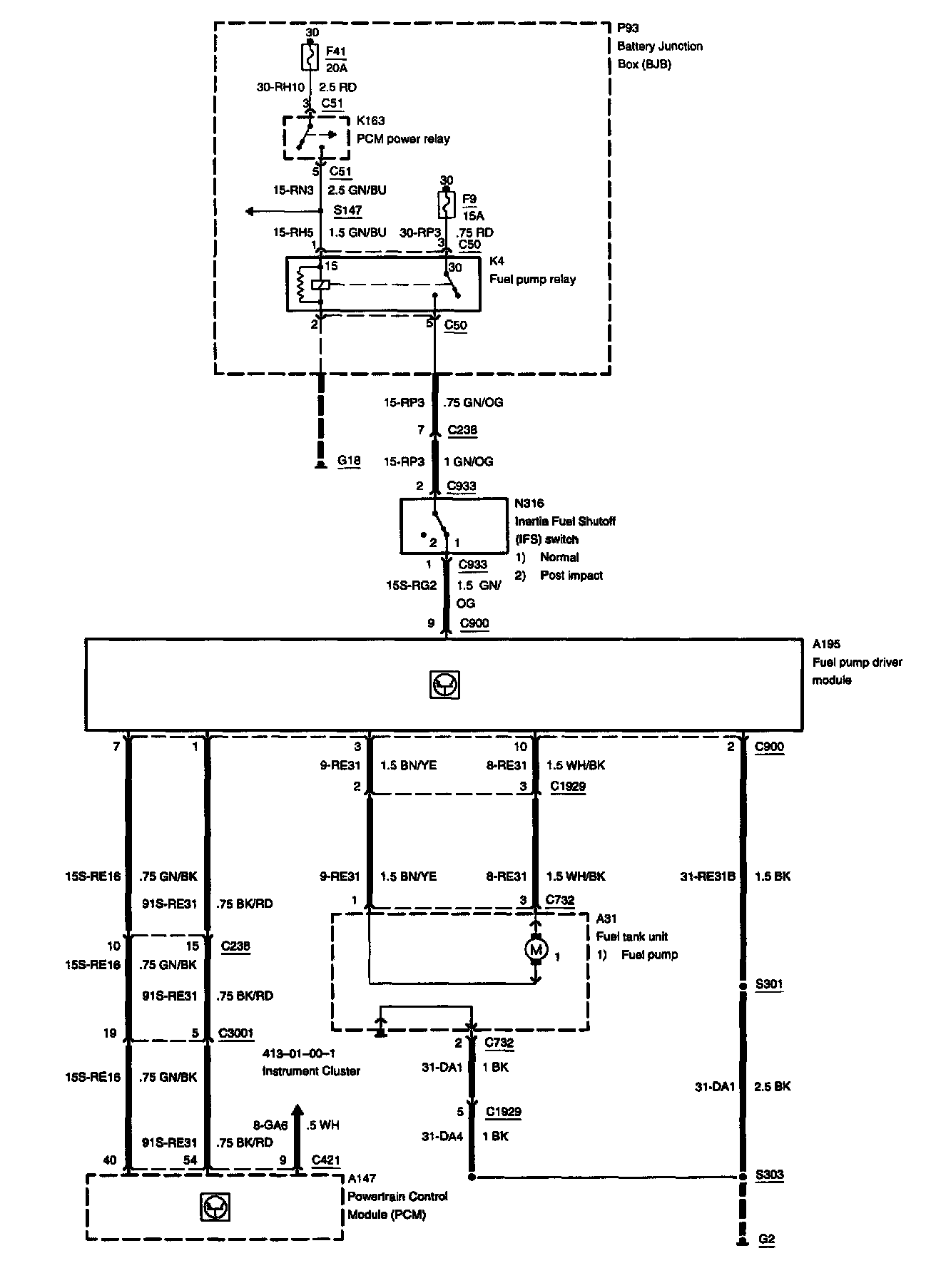

Diagram 303-14B-00-13:
Battery Junction Box
Electric Pressure Control Solenoid
Fuse F41
Gearshift Lever Unit
Instrument Interface Module
Modulated Lock-Up Solenoid
Powertrain Control Module
Powertrain Control Module Power Relay
Shift Solenoid 1
Shift Solenoid 2
Shift Solenoid 3
Transmission Oil Temperature Sensor
Transmission Hardware Unit

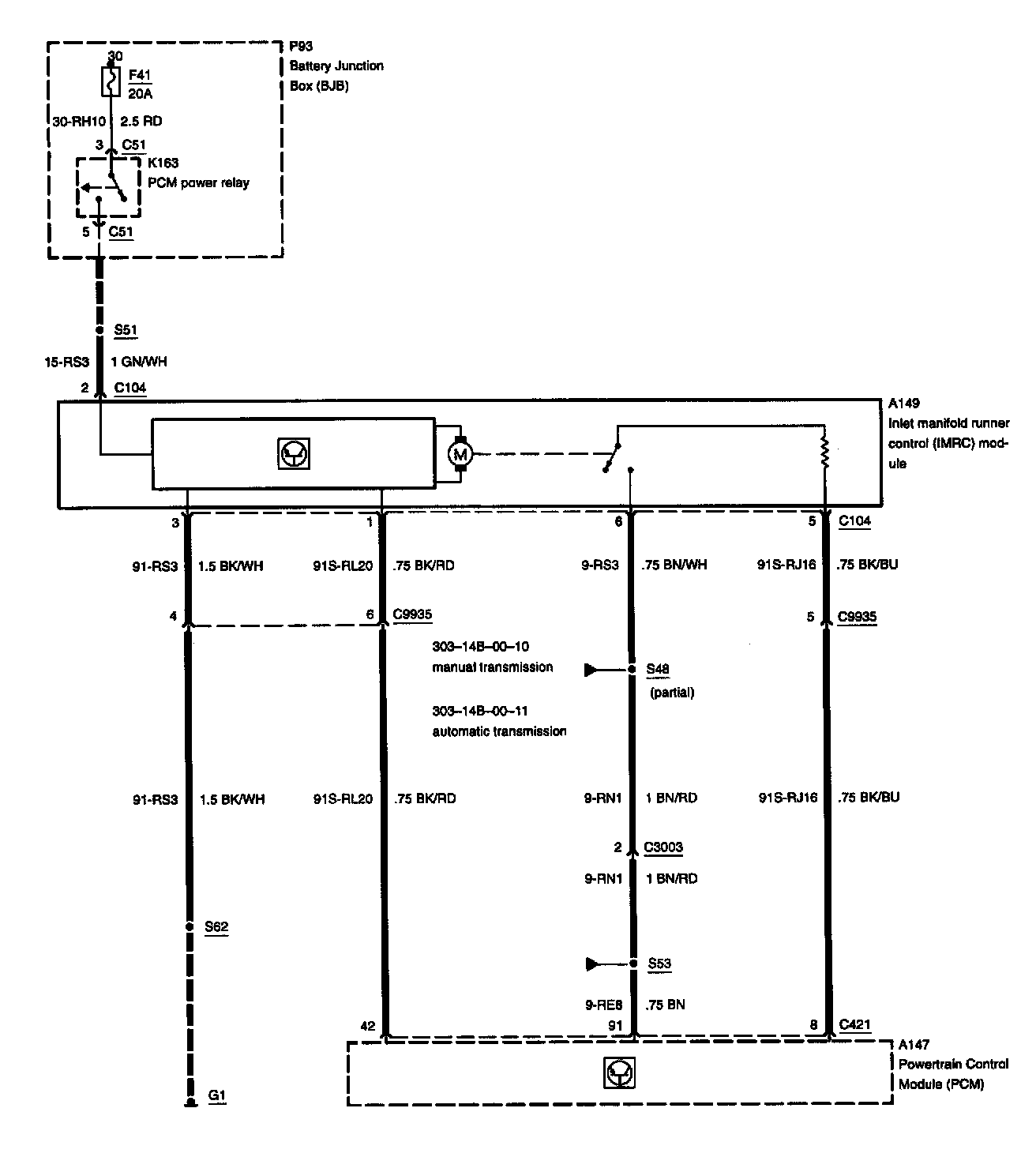

Diagram 303-14B-00-14:
Battery Junction Box
Fuse 41
Inlet Manifold Runner Control Module
Powertrain Control Module
Powertrain Control Module Power Relay
