Home >> Mercury >> 2000 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Fuel Delivery and Air Induction >> System Diagram

System Diagram

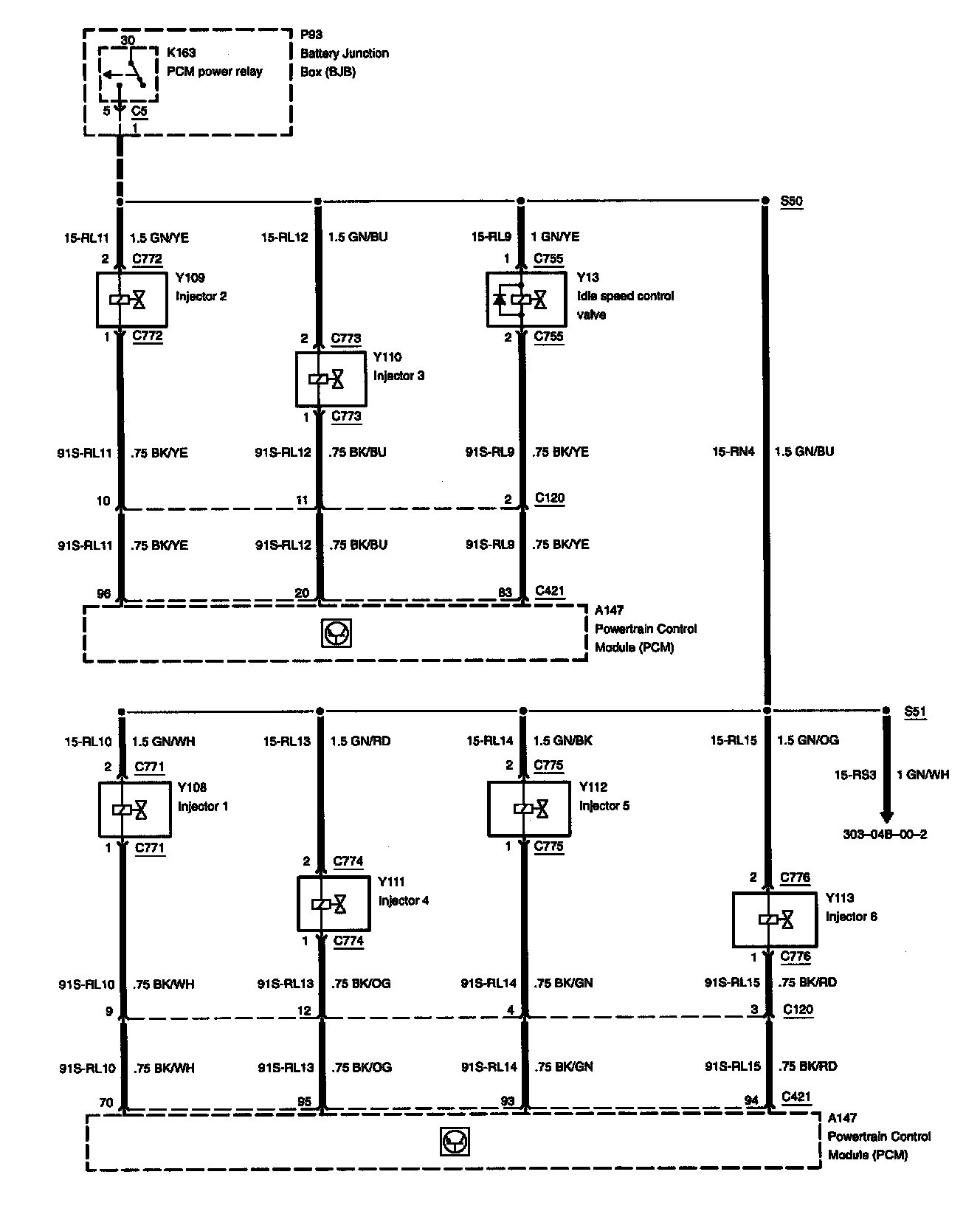

Diagram 303-04b-00-1:



Diagram 303-04b-00-2:
