Test E: Roof Opening Panel Does Not Open Or Close
Test E: Roof Opening Panel Does Not Open Or Close

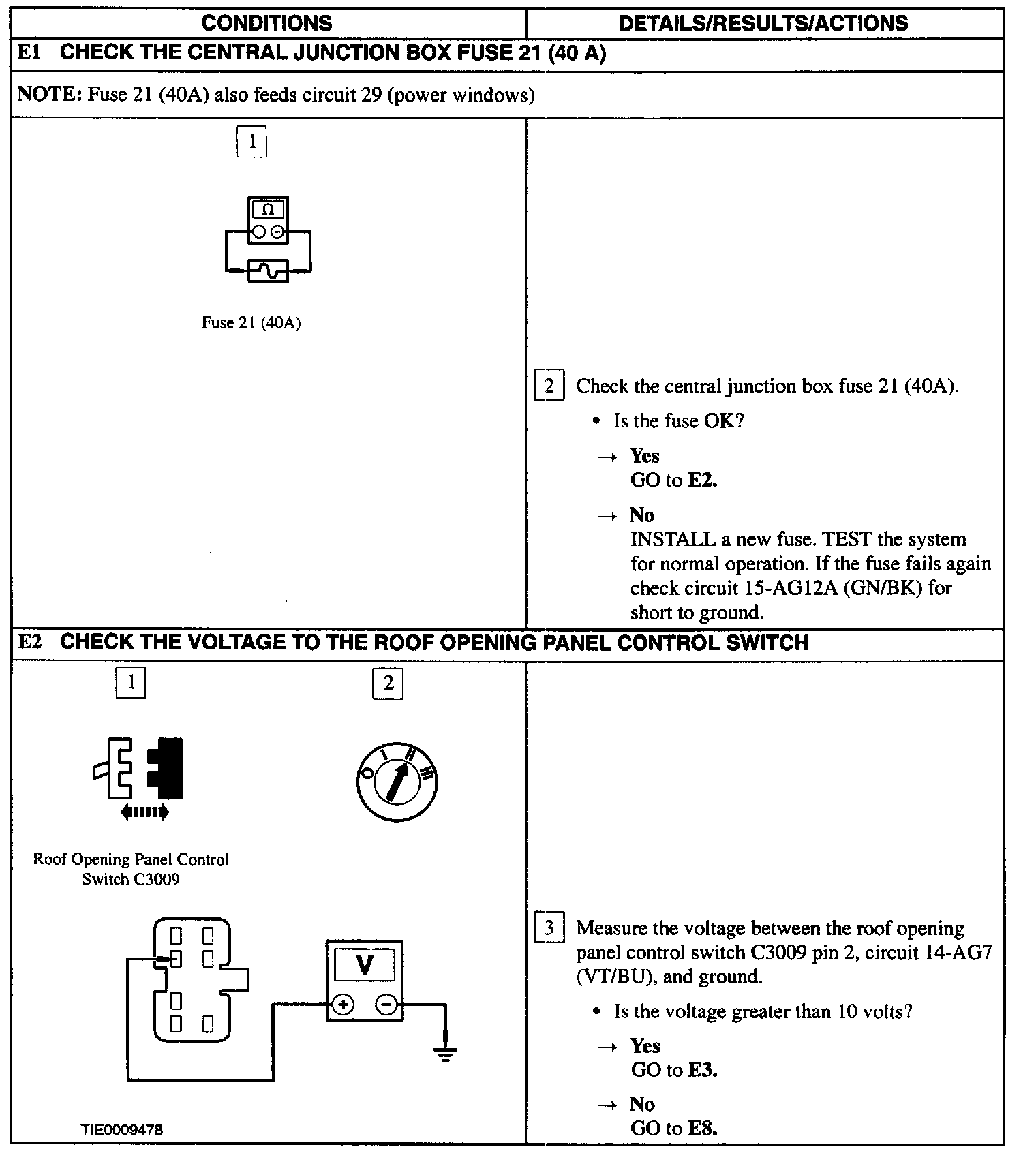

E1 - E2:

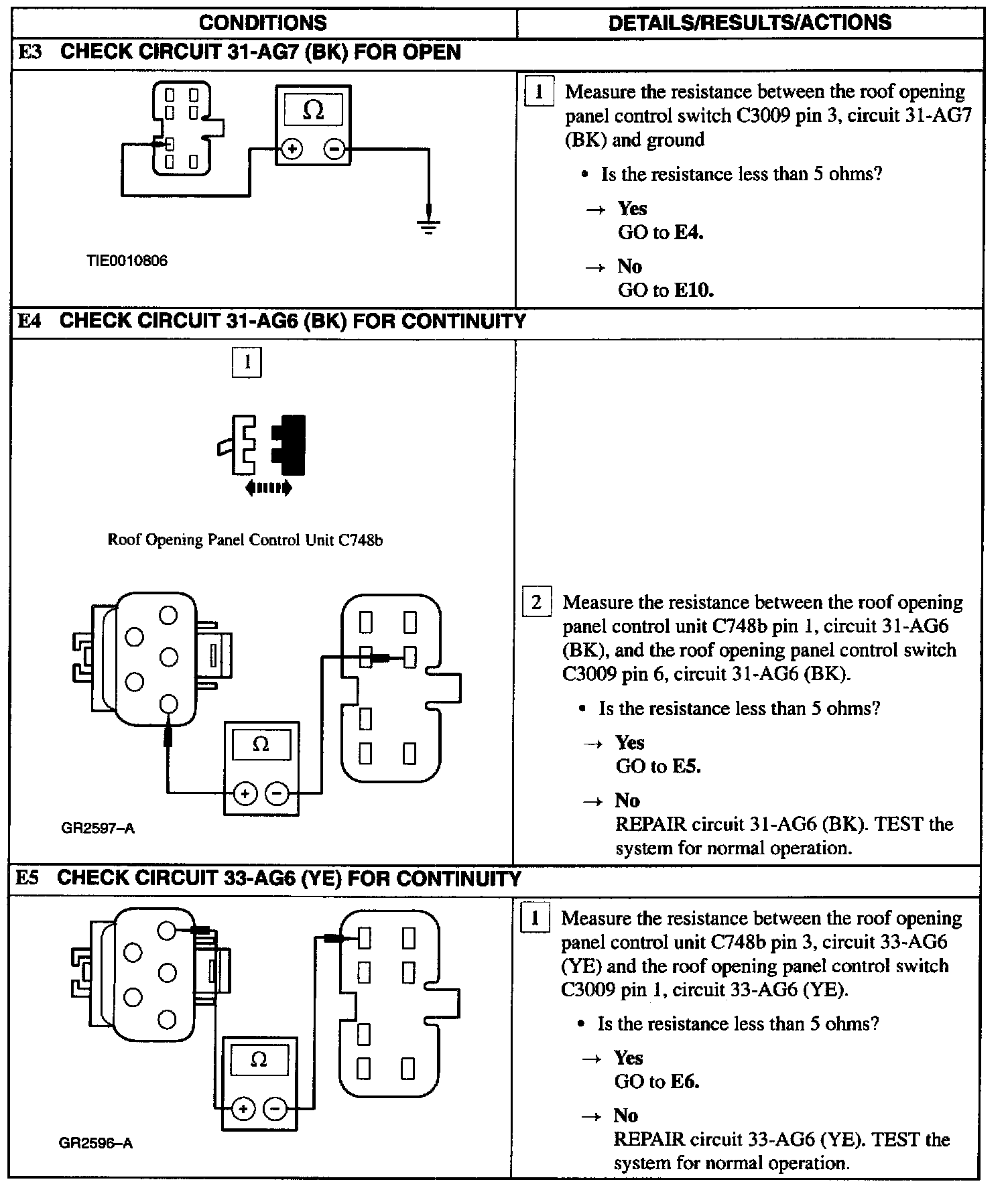

E3 - E5:

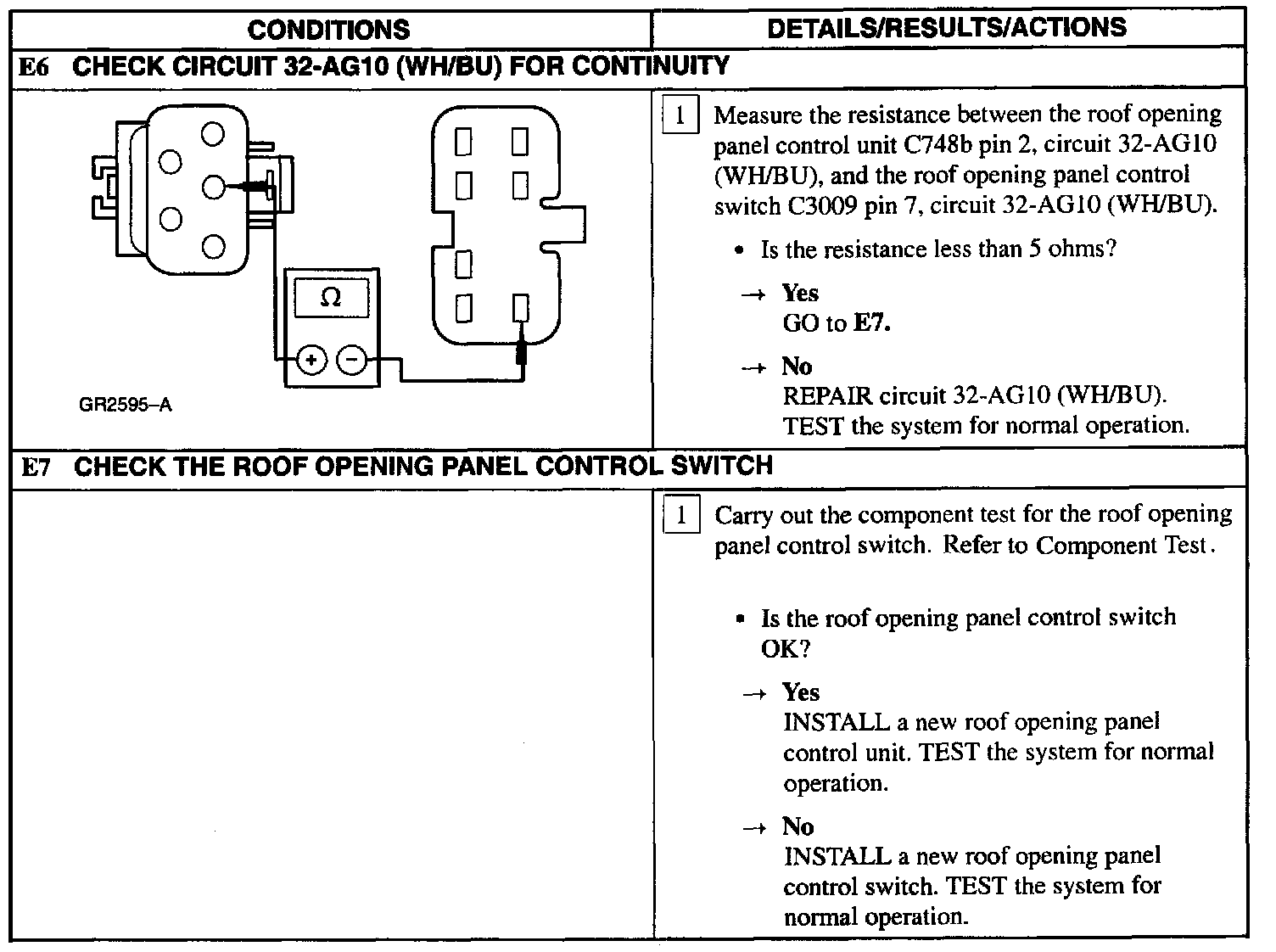

E6 - E7:

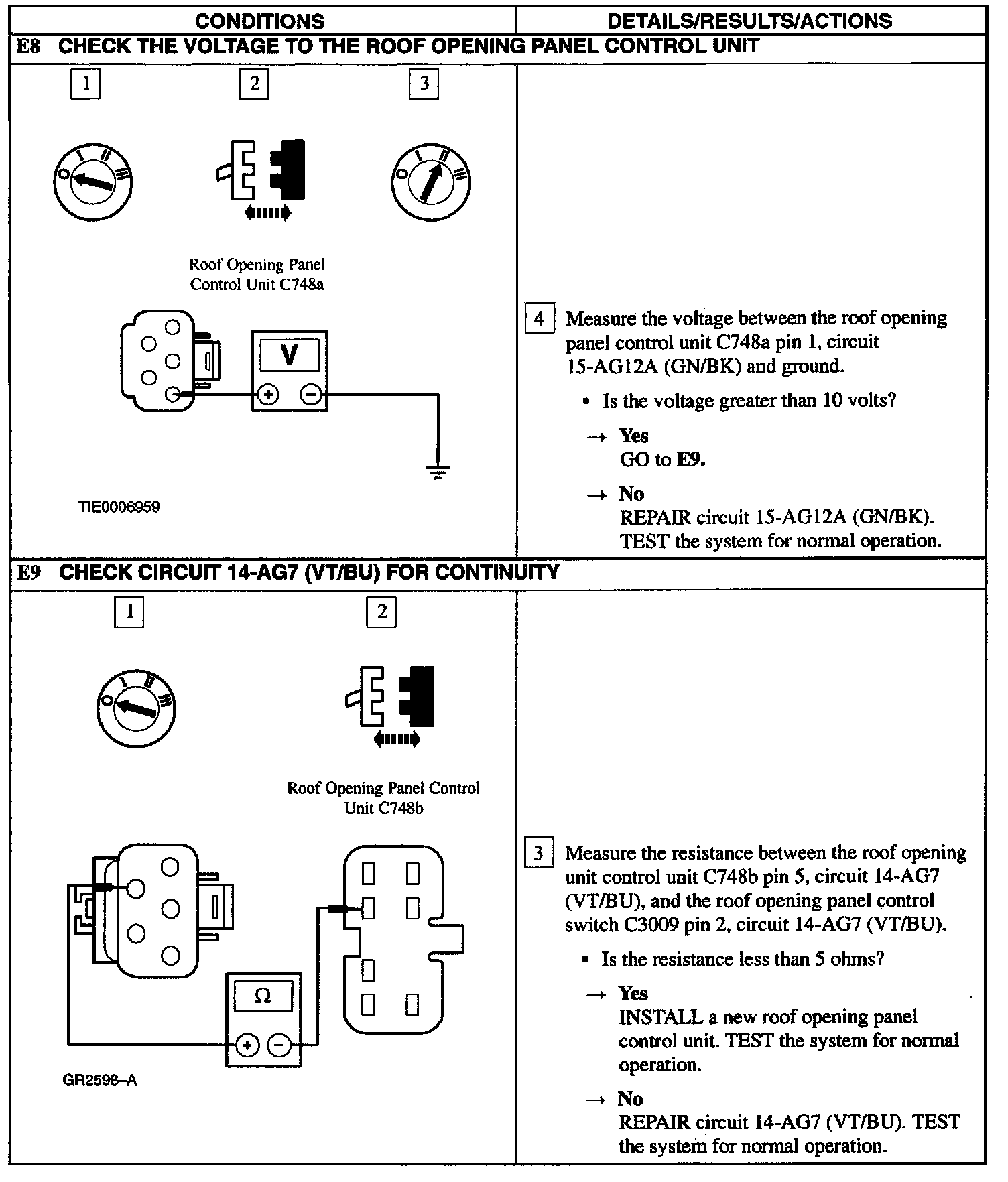

E8 - E9:

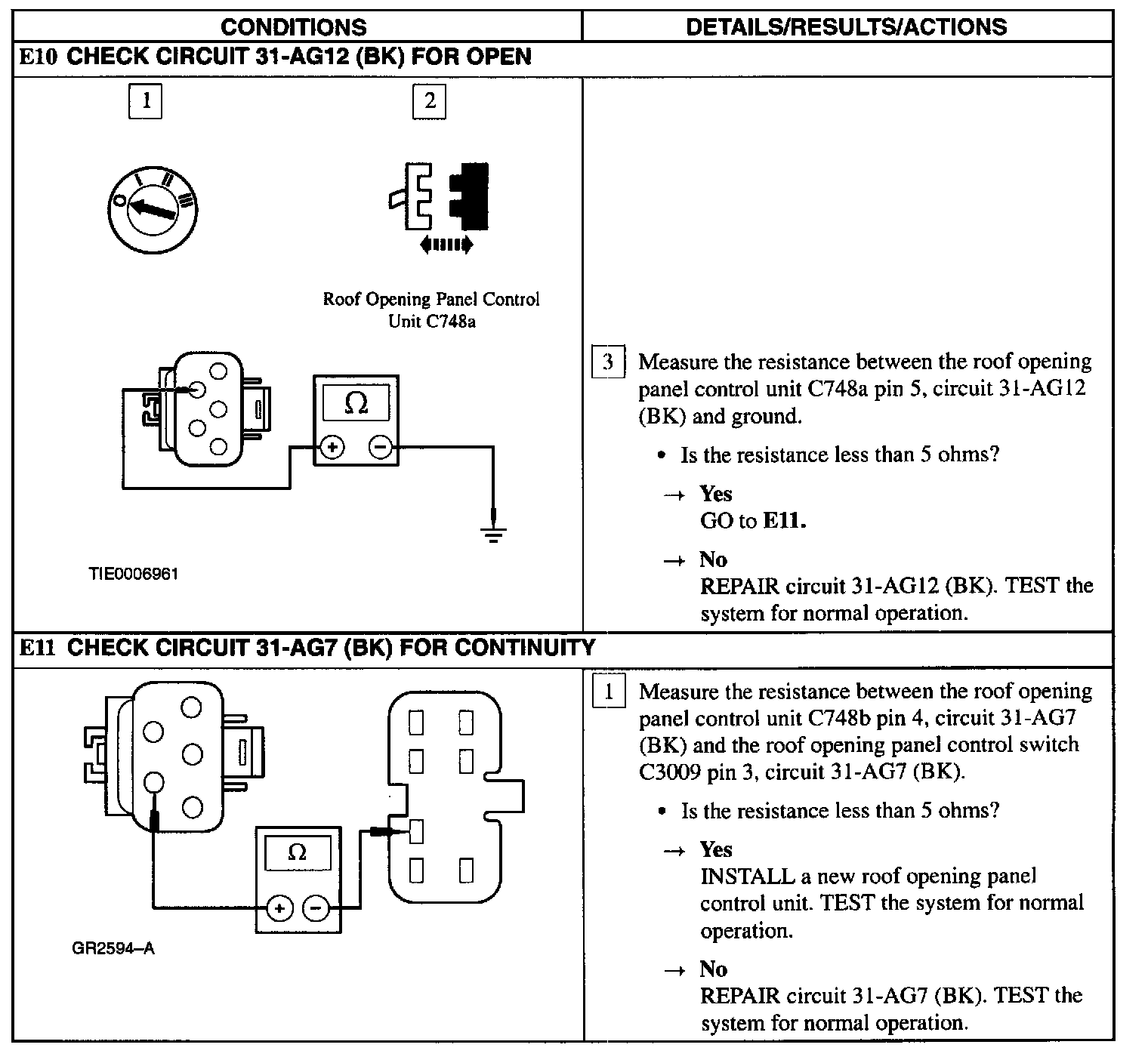

E10 - E11:
