Home >> Mercury >> 2000 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Passive Anti-Theft System (PATS) >> Test E: PATS Transceiver Signal Is Not Received

Test E: PATS Transceiver Signal Is Not Received

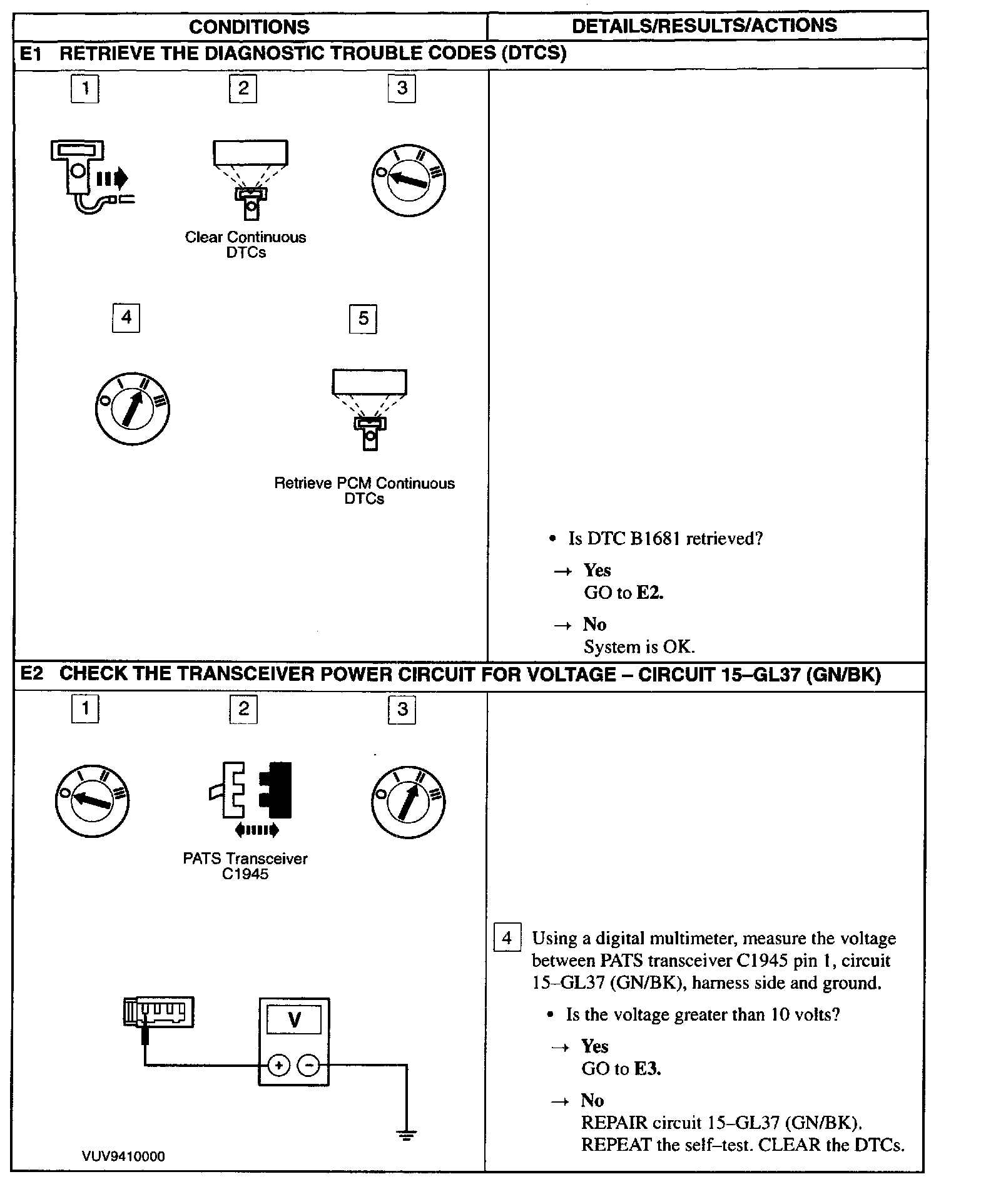

E1 - E2:

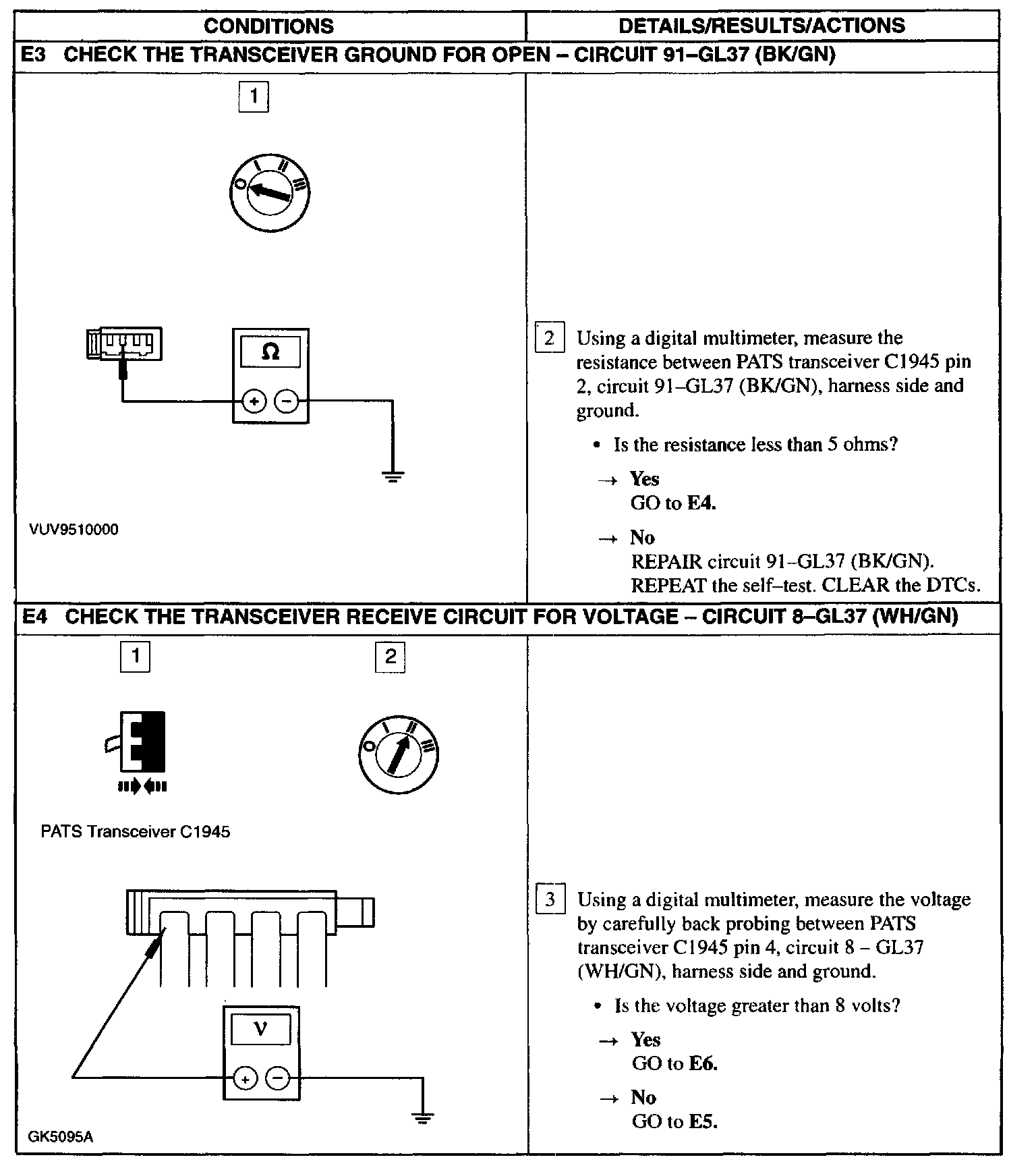

E3 - E4:

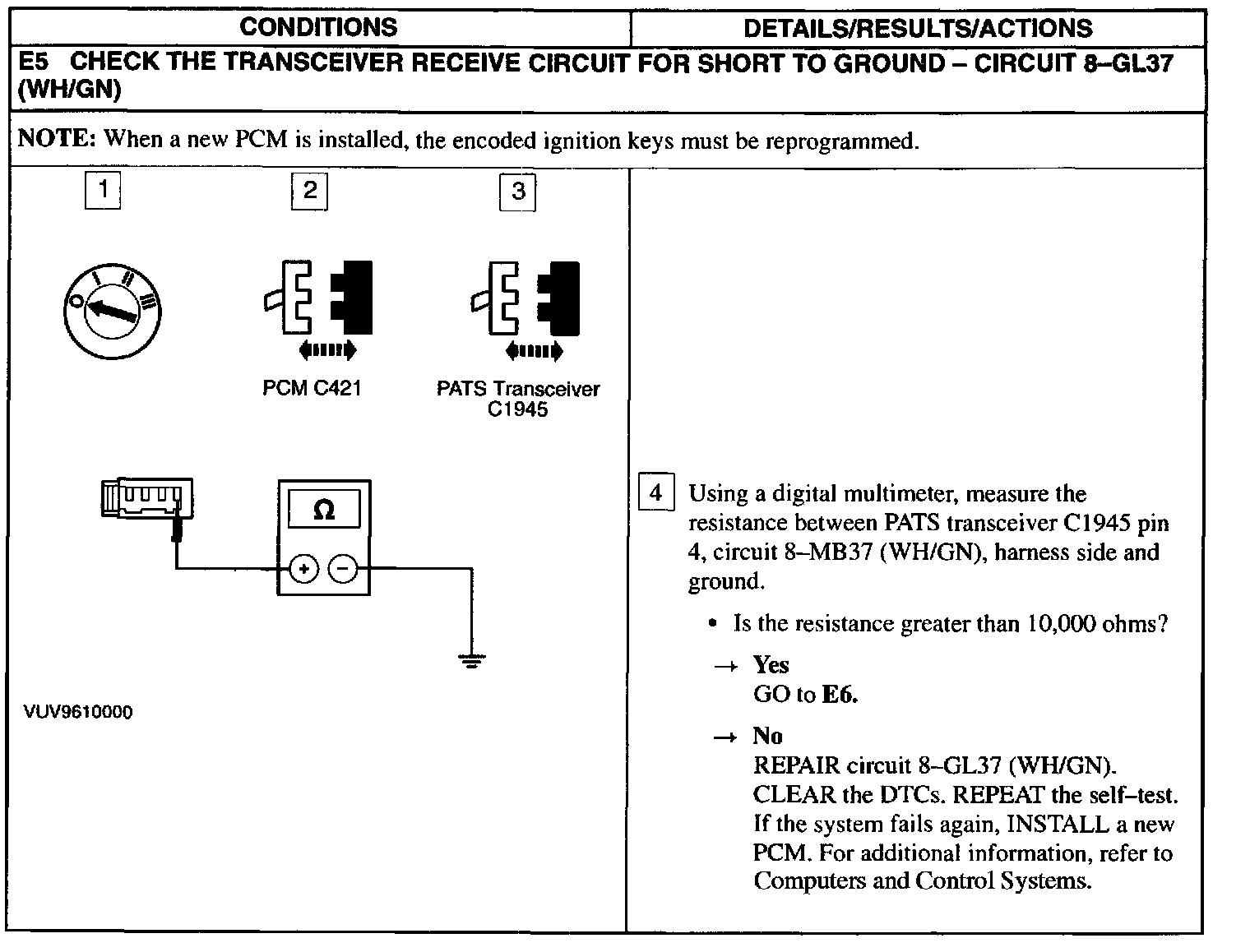

E5:

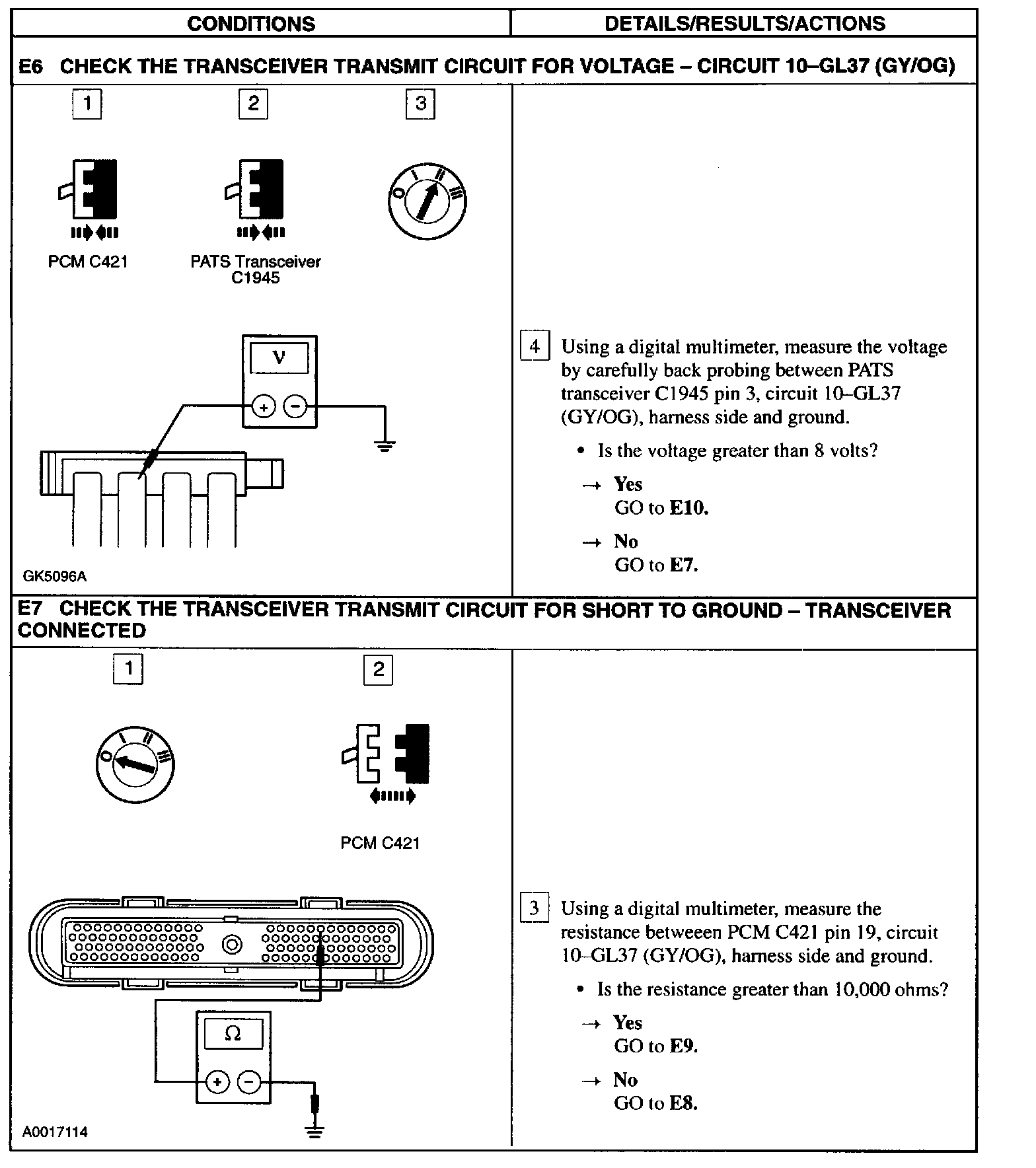

E6 - E7:

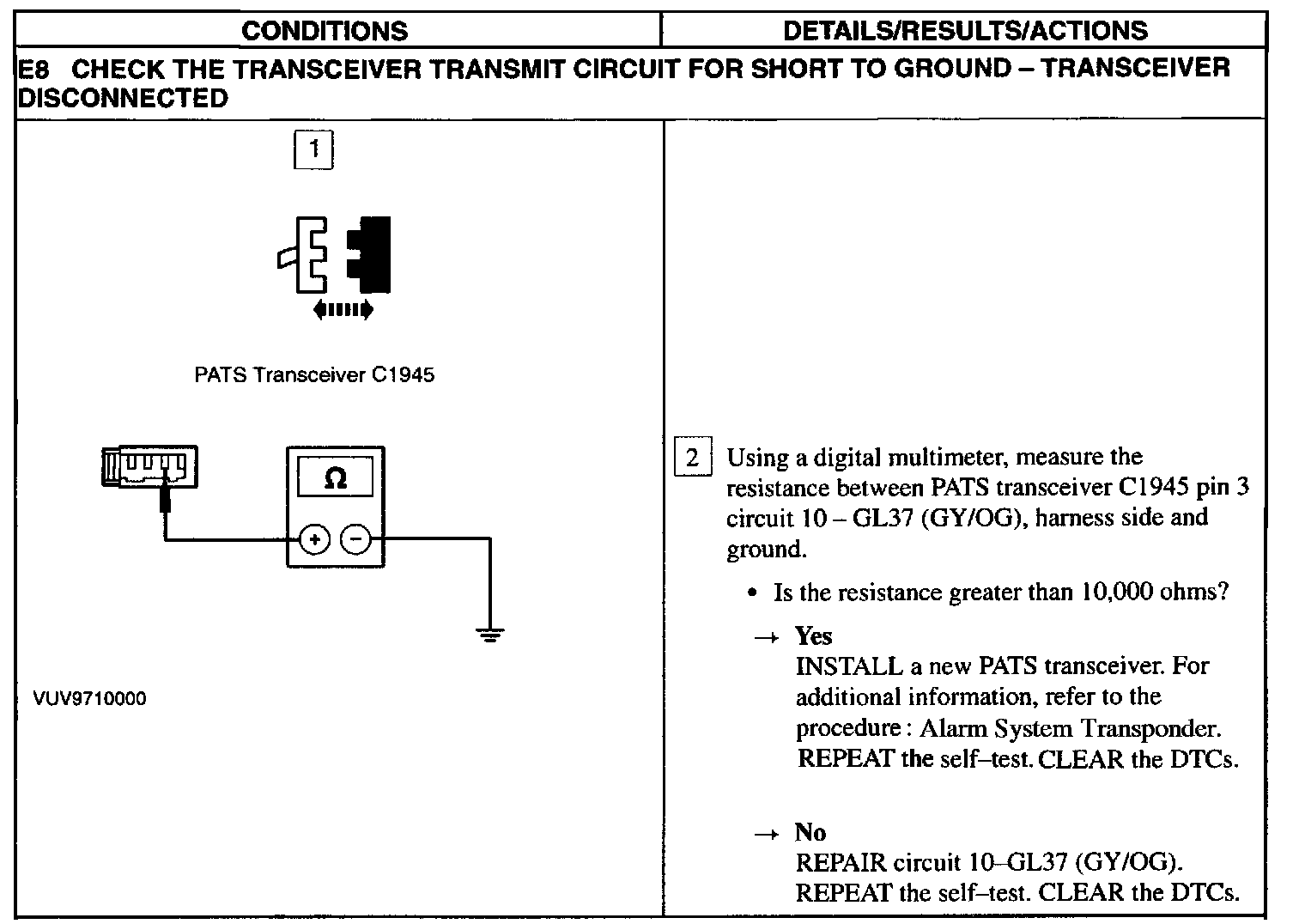

E8:

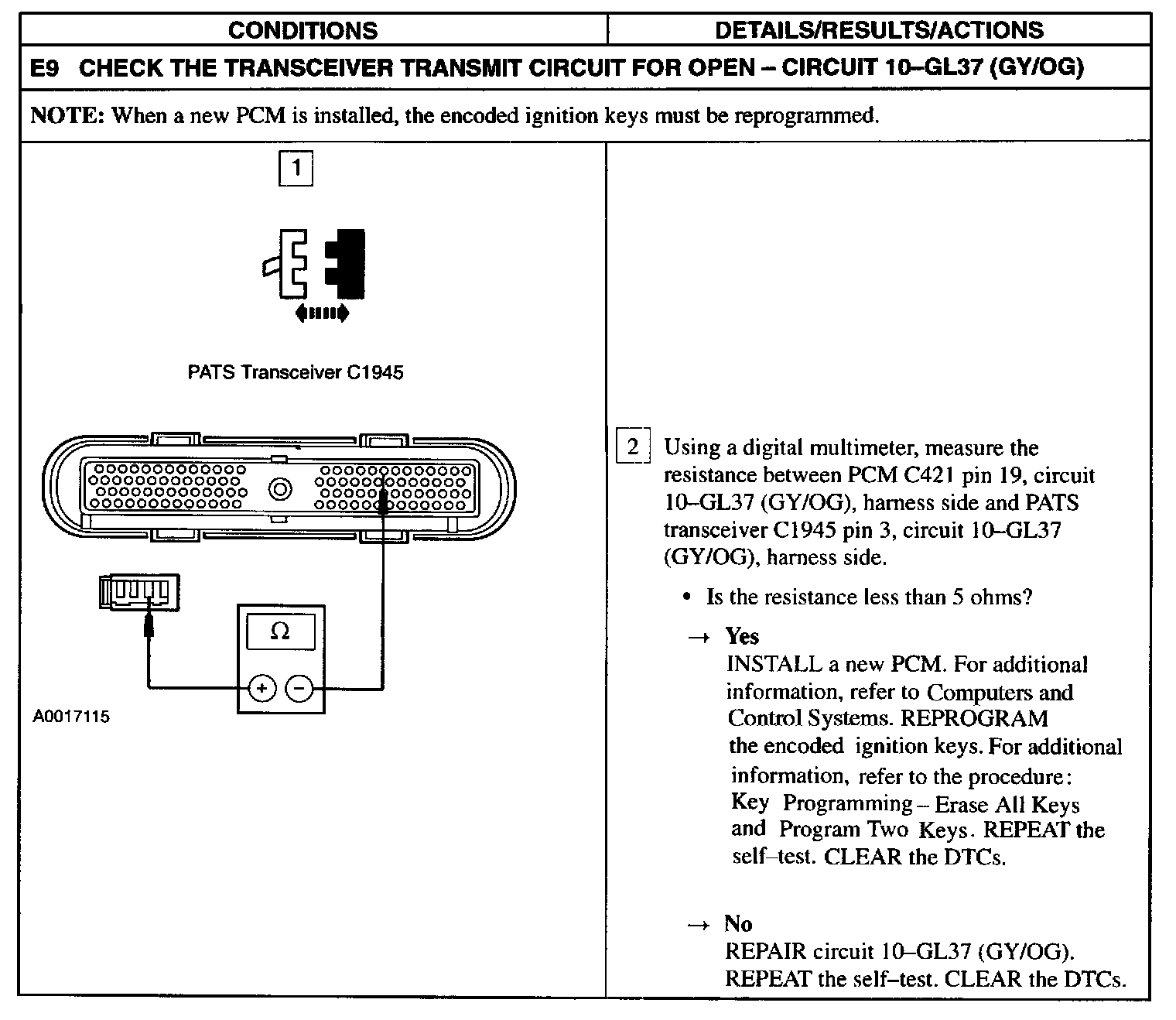

E9:

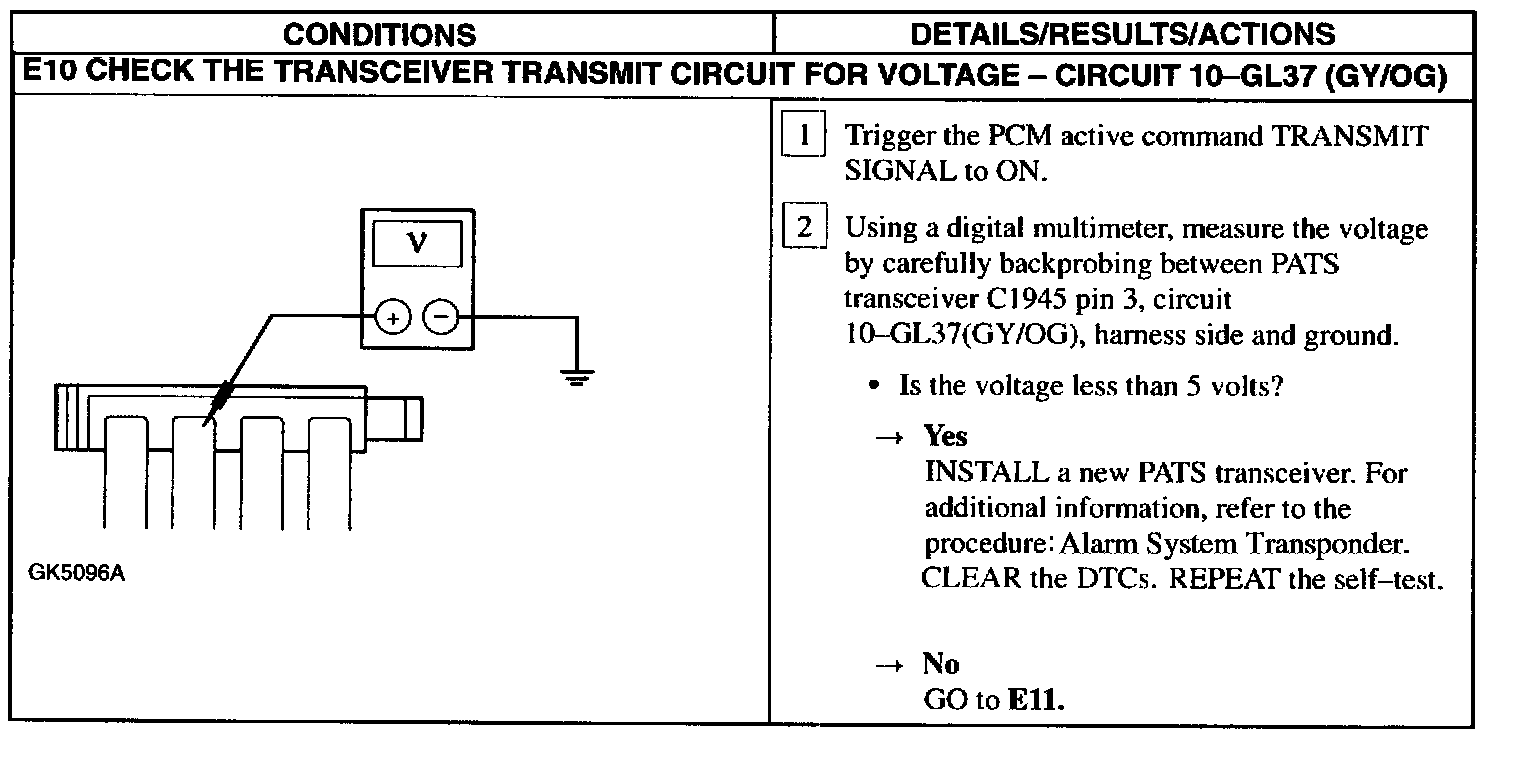

E10:

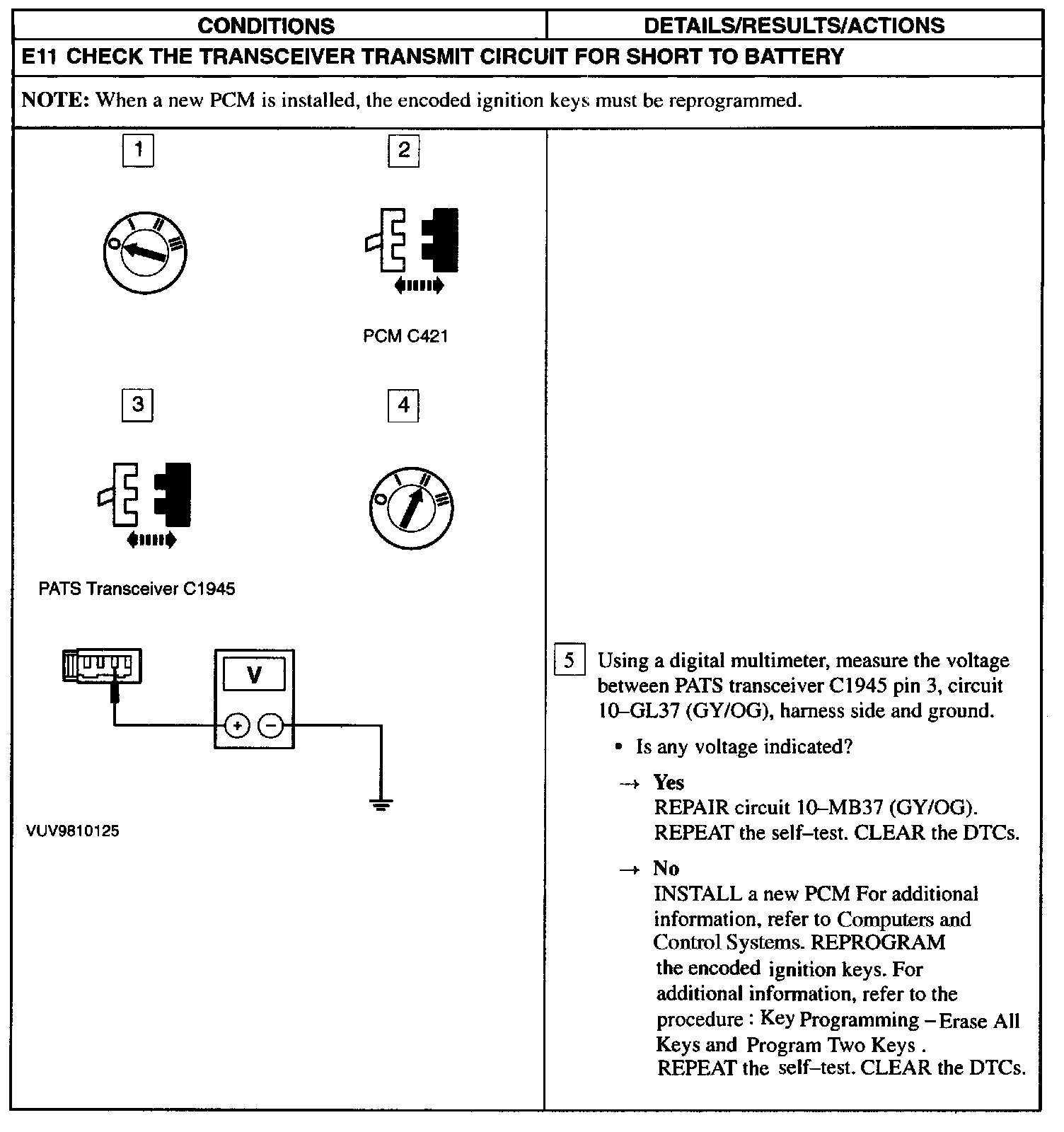

E11:
