Initial Inspection and Diagnostic Overview

NOTE: All measurements be must carried out using a digital multimeter.

1. Check the customer concern by operating the wiper and washer system.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the chart.

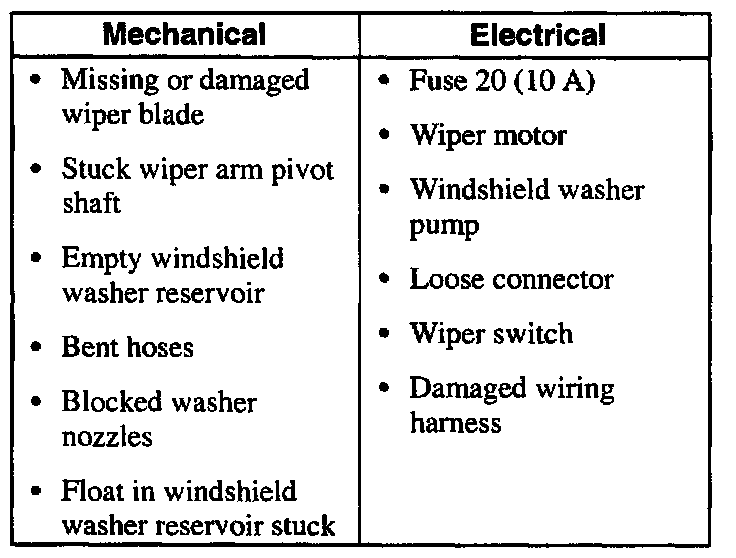

VISUAL INSPECTION CHART

3. If the concern remains after the inspection, determine the symptom and proceed to the Symptom Chart. Testing and Inspection
