Rear Door Window Regulator

Manual Windows

REMOVAL
1. Remove the door trim panel.







2. Remove the door pull.

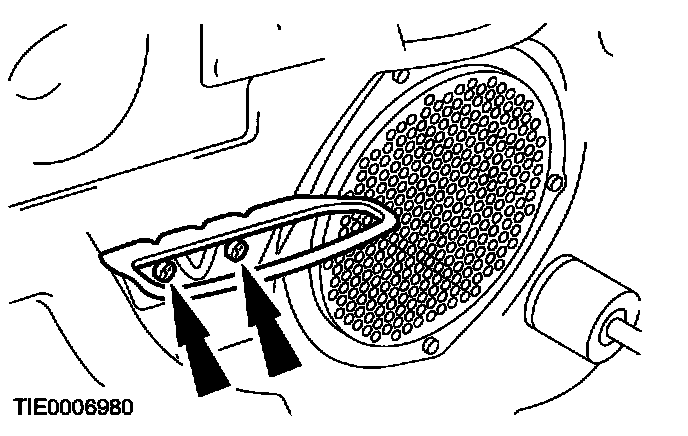

^ Remove the screws.







3. Detach the door speaker.
^ Remove the screws.

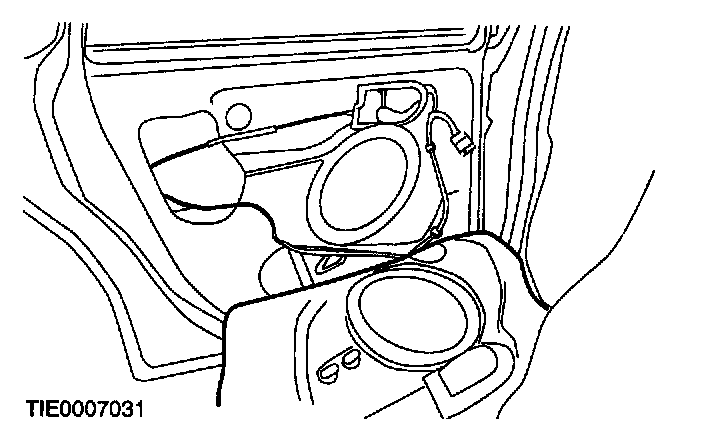

4. Remove the door speaker.
^ Disconnect the multiplug.







5. Detach the watershield.
^ Using a plastic knife (disposable cutlery), cut through the Butyl strip to enable the watershield to be peeled back.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired.







6. Install the window regulator handle.

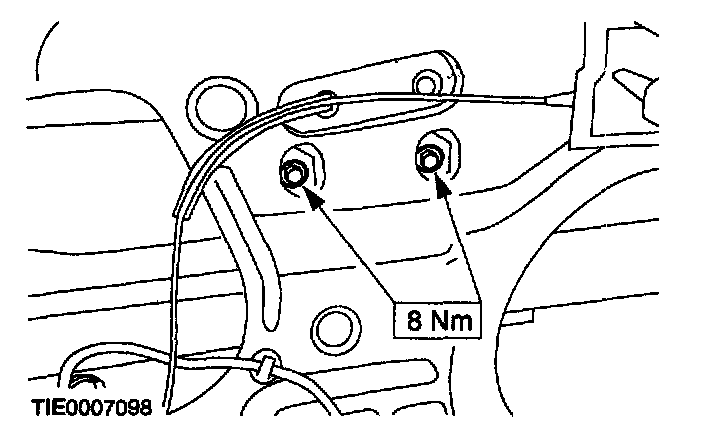

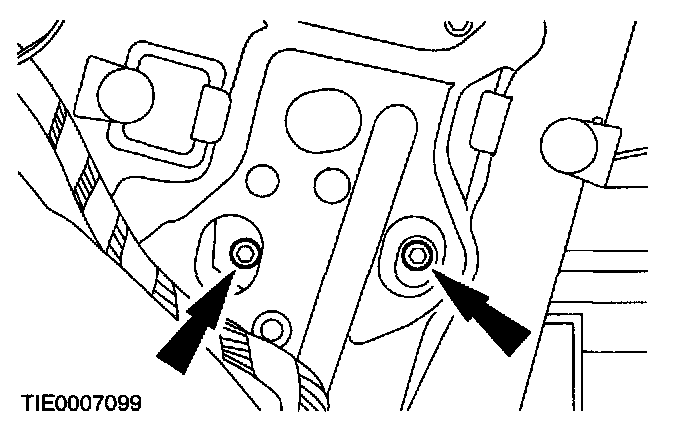

7. Remove the window retaining bolts.

NOTE: Align the window retaining bolts with the access holes.







8. Raise and support the glass in the fully closed position.







9. Detach the window regulator.

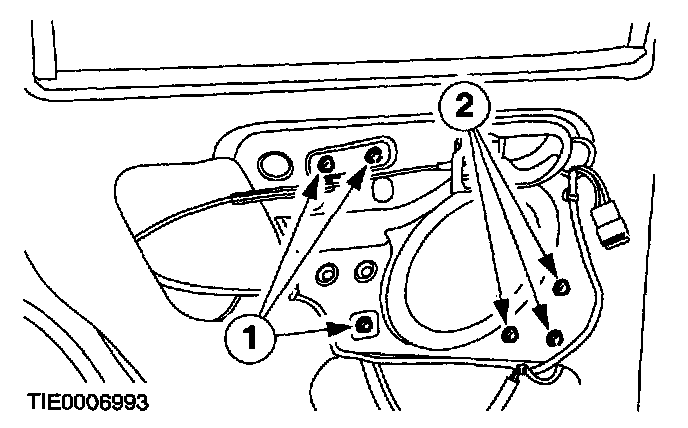

1 Remove the regulator assembly bolts and allow the assembly to rest in the bottom of the door.

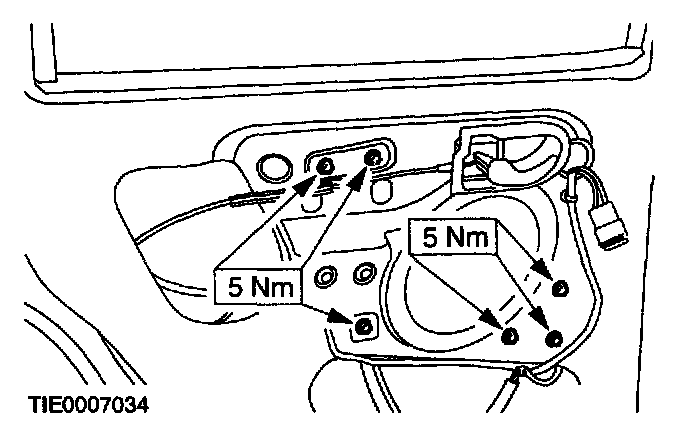

2 Remove the regulator motor (three bolts), or manual regulator winder (two bolts), and allow the assembly to rest in the bottom of the door.







10. Remove the window regulator handle.

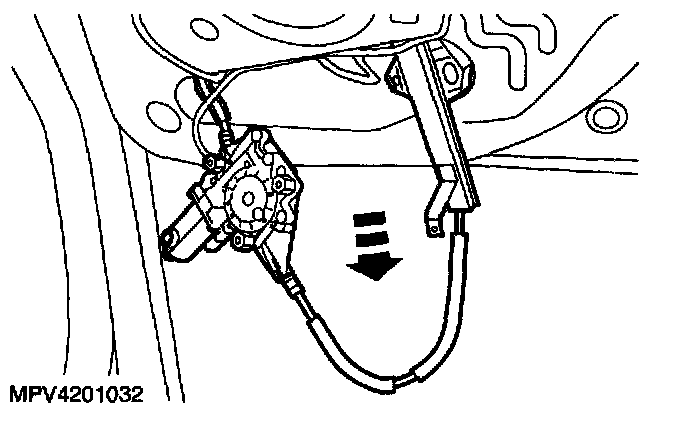

11. Remove the window regulator.

INSTALLATION












1. To install, reverse the removal procedure.
