Front Door Glass Top Run

REMOVAL
1. Remove the door trim panel.

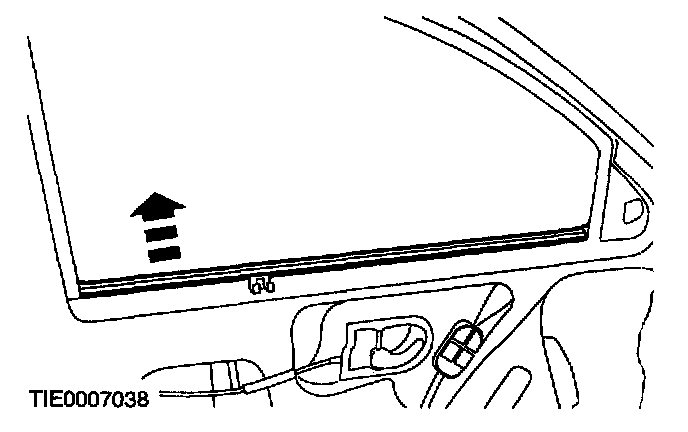

2. Remove the door window glass.







3. Remove the mirror.
1 Disconnect the electrical connector.
2 Remove the mirror retaining bolts.







4. Remove the exterior weatherstrip.







5. Detach the door speaker.
^ Remove the speaker retaining screws.







6. Remove the door speaker.
^ Disconnect the multiplug.

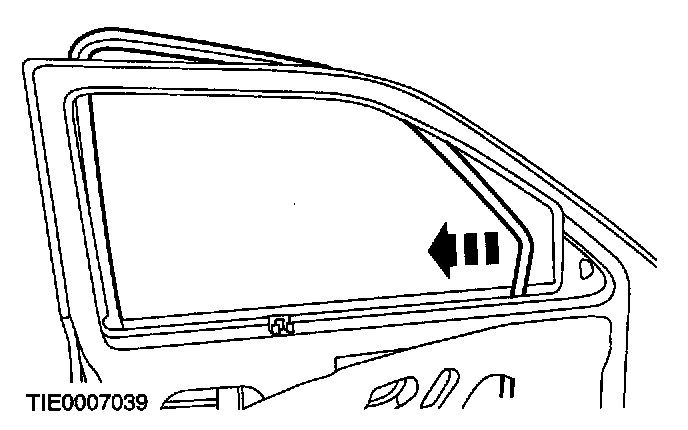

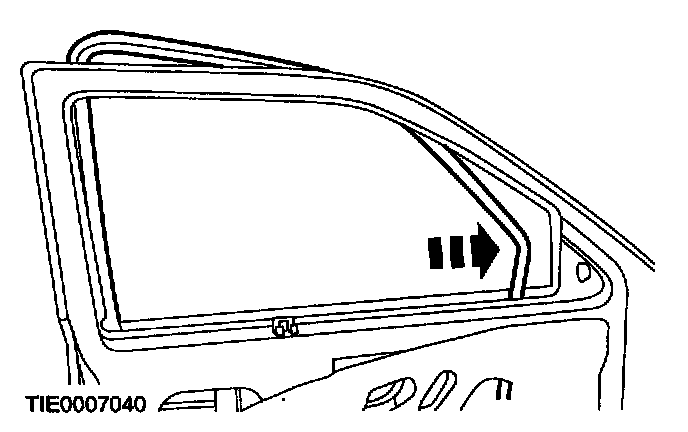

7. Remove the door glass top run.

INSTALLATION







1. To install, reverse the removal procedure.
